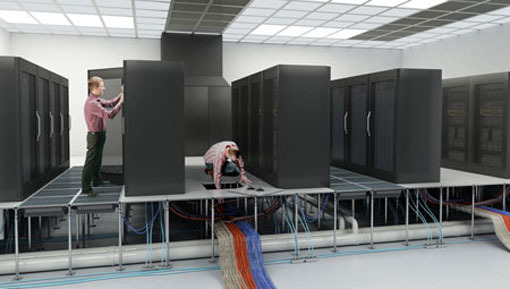

We offer three Tate® In-Floor Cooling Solutions raised access flooring and service distribution solutions.

DirectAire® Achieves 93 Percent Total Air Capture

Unlike other floor panels, DirectAire® delivers airflow to standard server racks at an angle, achieving a 93 percent rate of Total Air Capture (TAC). "This means that 93 percent of the airflow delivered through the panel enters the face of the rack, providing the highest cooling capacity and energy efficiency of any panel on the market," according to Data Center Product Manager Daniel Kennedy. (He noted that typical panels deliver only 30 to 50 percent of air directly to the rack.) What's more, DirectAire® eliminates bypass air, which saves operating expenses and reduces (by up to 40 percent) the capital expenditures on cooling equipment in new facilities. DirectAire's superior load performance is ideal for retrofits and new construction, easily integrating into an existing raised floor system. Featuring pressure-equalizing diffusion blades, DirectAire® panels cool up to 28.5 kW per rack, have 68 percent open area to deliver 2,600 CFM at 0.1" H2O (static pressure), can support a design load of 2,000 lbs. and can withstand a rolling load of 1,500 lbs.

SmartAire® Controls Airflow to Server Racks:
SmartAire® dampers are electronically controlled, precisely adjusting the amount of air passing through an individual panel to meet the rack's current cooling needs. Four sensors mounted to the front of the rack control the VAV damper and, consequently, the airflow amount, maintaining the proper inlet air temperature on a rack-by-rack basis. This flexibility can help effectively cool facilities implementing virtualization, cloud computing and idle server shutdown strategies while saving more than 40 percent in fan energy.

SmartAire® adapts technologies readily found in commercial office applications to create a solution for controlling airflow delivery to the IT racks. Each panel and rack tandem can be thought of as an individual zone. SmartAire® measures the incoming air temperature at the face of the rack, adjusting the airflow to ensure that the temperature at the rack's face doesn't exceed the maximum allowable setpoint. Coupled with DirectAire®, and typical best practice strategies SmartAire® nearly eliminates bypass air and accounts for local temperature fluctuations.

PowerAire® Cools Hot Spots in Data Center
The PowerAire® fan-assist module effectively manages the cooling requirements for dense server racks and blades. It provides a blast of cooling through the DirectAire® airflow panel. Using sensors mounted to the front of the rack, PowerAire® automatically turns on when conditions require additional cooling.

Equipped with a variable-speed fan drive, PowerAire® can be throttled up or down based on heat-load requirements. This makes PowerAire® the ideal solution for cooling the toughest hot spots in a data center. What's more, PowerAire® is easy to install in retrofit applications or as part of a new, advanced cooling strategy. Coupled with DirectAire®, PowerAire® can deliver up to 3,206 CFM at 0.1" H2O (static pressure).

For more information about Tate's new in-floor cooling devices and a white paper on data center cooling, please visit our Data Center section. For information about other Tate products and services, call (800)- 686-5312.
