Plenaform® Baffle System-Single Baffle-#PF-2448
Air flow baffle system which directs or diverts air flow under raised floors~
Overview
PlenaForm® Baffle System
The PlenaForm® Baffle System is a flexible, snap together, air flow baffle system which helps to solve dynamic thermal imbalances in data centers. Installation is easy, and the system does not require electricity to operate. It is a holistic tool to direct or block airflow very simply and inexpensively. And if necessary, relocating is easy: just release the cable ties.
Benefits:
• Overcome challenges in data center cooling
• Reduce energy consumption and operating costs
• Keep employees more comfortable
Specifications:
• Baffle Dimension: 24″ x 48″w x .040″d
• Baffle Weight: Approximately 1.75 lbs. each
• Baffles are scored in 1″ horizontal increments and 1-1/2″ vertical increments
• Baffles are die cut from flame retardant polypropylene compound that is inert, non-conductive, and UL 94 V O.
Color: black
• Ships in packs of 12 with cable ties and rivets included (custom packs also available)
• On-Site Configurable (Width and Height)
• Fits ANY Raised Floor Pedestal
• RoHS and WEEE Compliant – an energy saving and thermal tuning tool
PLENAFORM® baffles are die cut from a flame retardant polypropylene compound that is inert, non-conductive, and non-hygroscopic with a UL-VO 94 rating.
PLENAFORM® Baffle System has many other uses:
• Control and Balance Data Center Airflow
• Separate Hot Aisles from Cold Aisles
• No Installation Tools Required
• On-Site Configurable (Width and Height)
• Fits ANY Raised Floor Pedestal
• Reduces Energy Consumption and Operating Costs
• An Inert, Non-Conductive and Non-Hygroscopic Material
• Flammability rating of UL V- 0 per UL94
• RoHS and WEEE Compliant
• An Energy Saving and Thermal Tuning Tool
# PF-2448 (single)
Includes 8 Cable Ties and 4 Rivets
24″h x 48″w x .040″d
Approximately 1.75 lbs. each

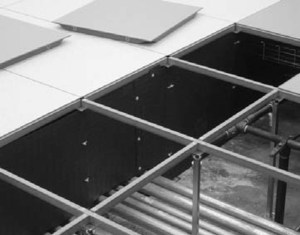

Installation:
The Baffle System is easy to install, right out of the box! No installation tools are required.
PlenaForm baffles are scored both vertically and horizontally so sections can be removed or added onto to meet any height or width requirement.

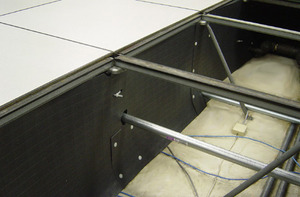

All angles of bend radius may be attained, including inside and outside mounting to raised floor pedestals.
Continuous punch out hole pattern allows attachment to any style raised floor pedestal at any height or width location with cable ties.
Baffles can also be installed in the ceiling plenum for more efficient heat return from the hot aisles to the CRAC unit intake heads.
For assistance with this product call (800)686-5312 or email: Sales@MainlineComputer.com
Specifications
PF-2448 (single)
Includes 6 Cable Ties and 4 Rivets
24″h x 48″w x .040″d
Approximately 1.75 lbs. each
