Overview

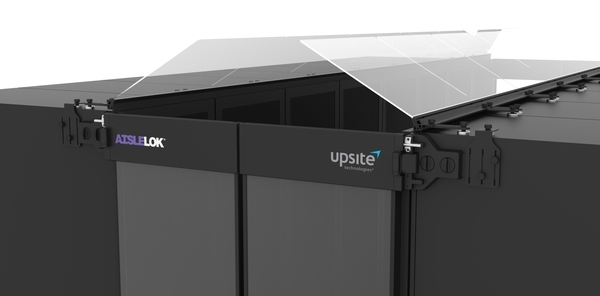

The AisleLok Rack Top Baffles are a key component of Upsite’s AisleLok Modular Containment solution and are available in two configurations: Angular (30° from horizontal) and Vertical (90° from horizontal).

Application:

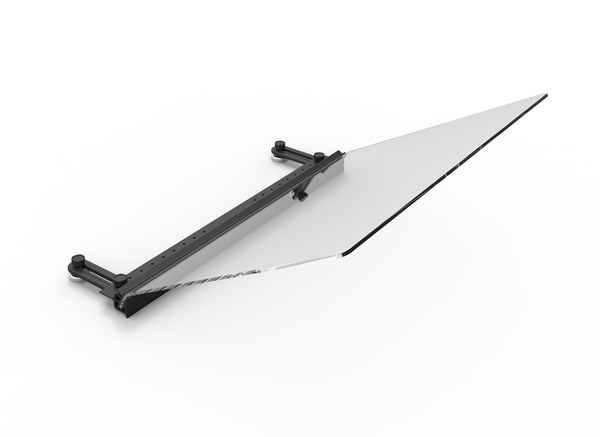

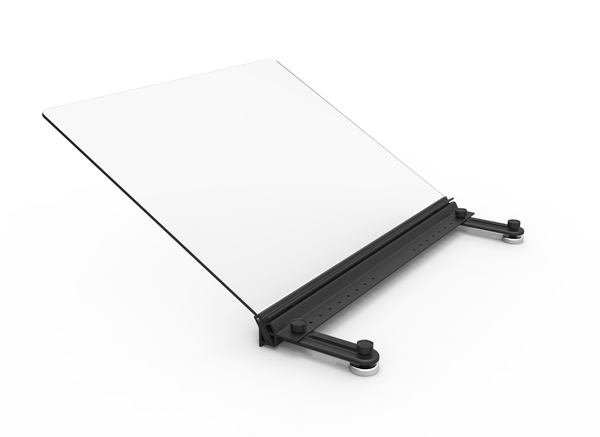

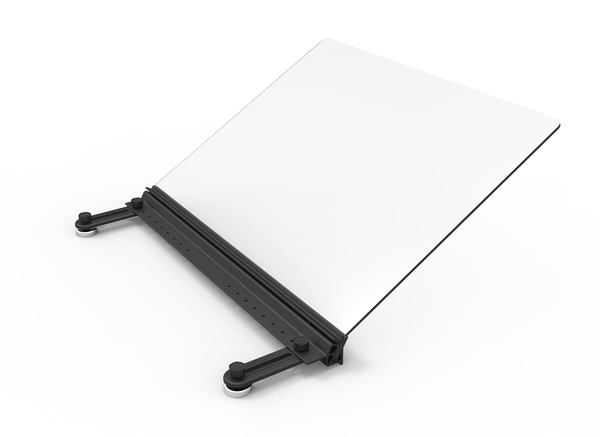

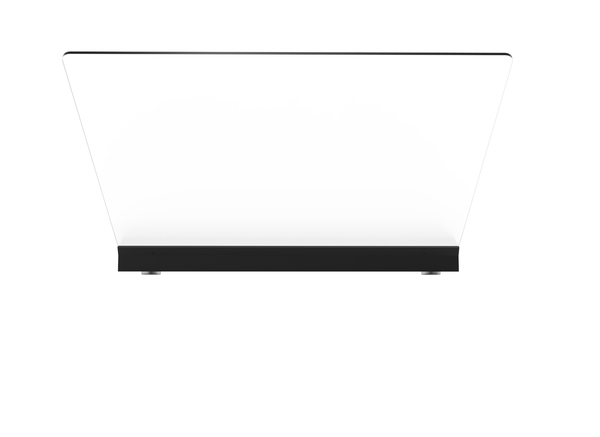

• Angular rack top baffles are angled at 30° from horizontal and designed for cold aisle containment.

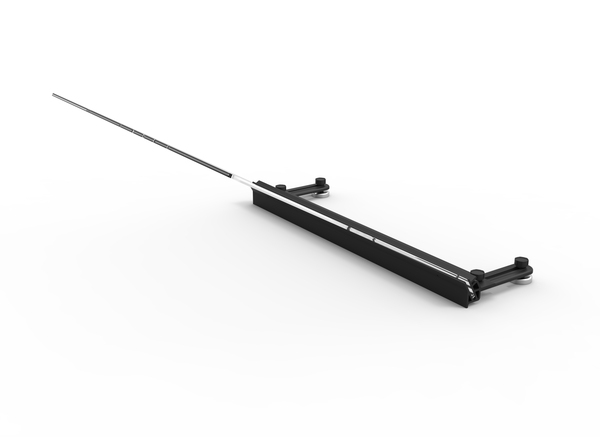

• Vertical rack top baffles are 90° from horizontal and designed for hot aisle containment.
• Both rack top baffles quickly and easily attach to the top of racks via a magnetic mounting system that allows a fully deployed aisle containment solution in minutes, with minimal disruption to the data centre or computer room.
• The simple installation and modular design allows the AisleLok Modular Containment rack top baffles to be easily removed, relocated, repositioned and reused as the needs of the data centre change.

Features:
• The rack top baffles fit common rack widths, allowing for easy, off-the-shelf ordering.
• Can be installed directly out-of-the-box without any tools.
• Clear material construction provides maximum light transmissibility.

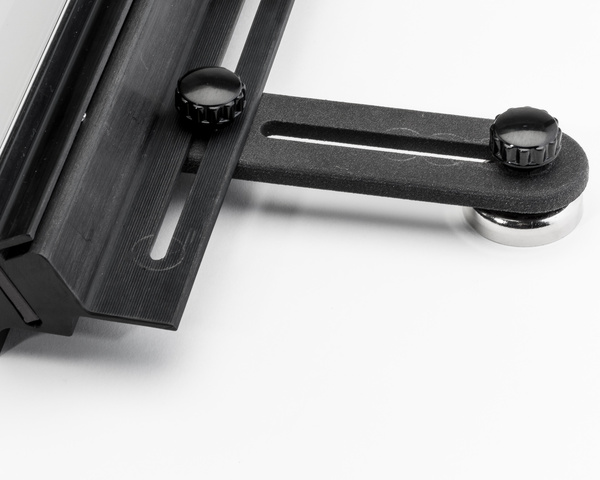

• Adjustable mounting tails can be positioned to fit the top of most 19” racks.
• Baffles can be re-configured to either a vertical or angular application as needed.
• Does not interfere with most overhead cabling configurations.
• UL94V flammability rated materials.

Sizes Available

24” (600mm) Rack Top Angle Baffle
30” (750mm) Rack Top Angle Baffle
31.5” (800mm) Rack Top Angle Baffle
