- Manufacturer
- Liebert
- Product #
- XDA5BT
- Catalog #
- XDA5BT
- Weight
- 45.0 lbs.
- Suggested Retail
- $1,260.00
- Sale Price
- Contact Us
Liebert® XDA Air Flow Enhancer 1000CFM 230V # XDA5BT

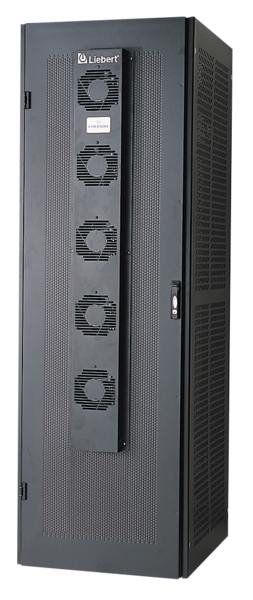

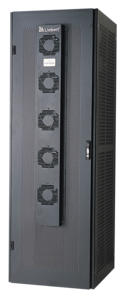

Lightweight fan unit is mounted to the exhaust side of a rack enclosure.
Overview
Liebert XDA Air Flow Enhancer increases air flow through densely populated enclosures, past congested cabling, removing hot spots within the enclosure that can threaten the uptime of your critical systems.
Server fans often produce insufficient flow to push air through the masses of data communication wiring at the rear of the enclosure. But with a Liebert XDA placed on the exhaust side of the enclosure, the five high-static fans ensure positive air flow, moving heat out of the enclosure and into the room where it can be removed by the room air conditioning system.
Each unit is rated for 1000 CFM (@60Hz). The unit mounts on the rear (inside or outside) of any standard rack (minimum 60" height). Two XDA units mounted side by side on the rear of a rack enclosure (2000 CFM capacity) move a nominal 14 KWheat load.
Liebert XDA features dual power cords for continuous availability. They are easy to install and compatible with most rack enclosures.
• Five-fan rack mounted unit improves horizontal rack air flow
• Installs quickly and easily
• Provides redundant components to ensure reliability
• Enhances data center precision cooling systems
Liebert XDA Air Flow Enhancer increases air flow through densely populated enclosures, past congested cabling, removing hot spots within the enclosure that can threaten the uptime of your critical systems.
Overview:
Each Liebert XDA unit is rated for 1000 CFM (@60Hz). The unit mounts on the rear (inside or outside) of any standard rack (minimum 60” height ). Two XDA units mounted side by side on the rear of a rack enclosure (2000 CFM capacity) move a nominal 14 kW heat load.
Flexibility:
• Fits most rack enclosures.
• Installs inside or outside of the rack.
• Enhances the cooling effectiveness of data center precision cooling systems.
Higher Availability:
• Increases air flow through rack enclosures that have an obstructed air pattern.
• Provides redundant fans and dual power feeds, to ensure continuous availability.
Lowest Total Cost Of Ownership:
• Ships as a complete kit, including: Liebert XDA assembly (fans, dual power cords & main switch); assembly positioning tool; cable grommet; and excess door perforation covering.
• Installs easily, to provide a fast, effective cooling solution.
Ideally Suited For:
• High heat density rack applications, in conjunction with a data center precision cooling system
For more information please call us at (800)-686-5312 or email Sales@MainlineComputer.com
Specifications
Technical Data
Nominal Capacity 1000 CFM
Input Voltage 120 V, 1 , 60 Hz
230 V, 1 ,50/60 Hz
Full load amps 1.5 A @ 120 V
Height 56"
Width 8"
Depth 2.25"
Weight, unit only 27 lbs
Additional Info
Datasheets:
Warranty Info
Liebert XDA Module, Model Size 5, 230V
