Overview

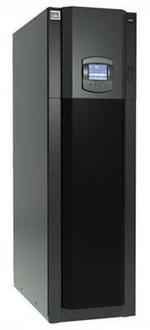

The Liebert CRV installs within a row of data center equipment racks, providing precision cooling close to the server heat source for the most efficient and effective cooling. Available in capacities from 20kW to 40kW.

Flexibility:
- Horizontal airflow cooling design is suitable for non-raised or raised floors
- Air, water, glycol, and chilled water systems available.
- Adjustable airflow baffles maximize cooling to rack equipment, and allow the system to be positioned within the row or the end of the row. Casters mounted for easy placement.

Availability:
- Digital scroll compressor is both reliable and energy efficient. System provides complete environmental control - cooling, humidity control and air filtration. Lowest Total Cost of Ownership
- Compact cabinet with high cooling capacity minimizes floor space requirements.
- Easy to install and maintain - only front and back access required.
- Digital scroll compressor and variable speed EC fans operate efficiently and provide a long service life.

Ideally Suited For:
- Rows of racks in hot aisle / cold aisle configuration
- Rack equipment requiring high density or spot cooling

Standard Features and Options:

- Crankcase heater
- Locking disconnect
- EC Plug Fans
- R410A
- Adjustable modular baffle system
- Simultaneous top and bottom connections
- Units provided with castors and levelling feet
- G4 (EU4) gravimetric & clog filter switch
- Steam Humidifier
- Electric reheat 1-stage
- CW 3-way valve
- Dual-float condensate pump
- (3) Remote Rack Sensors
- iCOM Large Graphic Display
- (1) Web Monitoring Card
