This Panel includes the Standard Finish. With a massive 55% open area, AIR-STREAM delivers more than twice the cold air volume to the server rack as ordinary perforated tiles. The built in self-retracting lift handle, makes it one of the easiest panels to lift and manage in the data center. A durable epoxy coat (static-dissipative) finish is standard and provides a long-wearing, corrosion resistant finish to ensure years of outstanding service. Optimal supply air temperatures
to Lo-Mid-Hi server inlets improves energy efficiency and equipment reliability

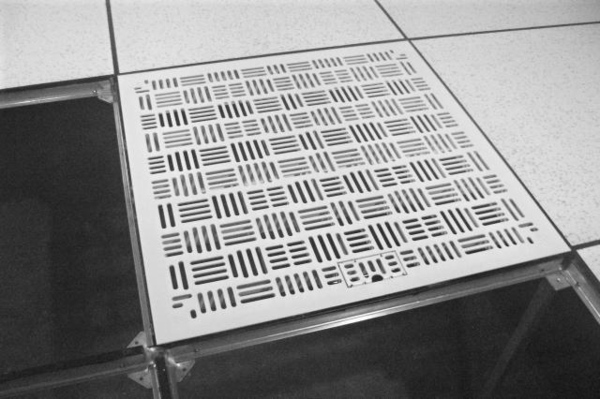

Infinity® Air Grate is guaranteed to fit into your floor system ! Eliminate the frustrations associated with finding replacement tiles or having something modified or custom built. What sets this high performance air grate apart from all others is its ability to adapt into both wood core and welded steel raised computer floor systems. Regardless of age or brand manufacturer, the Infinity® Air Grate fits into virtually every raised floor system ever produced (U.S. imperial standard 24" x 24" modular size).

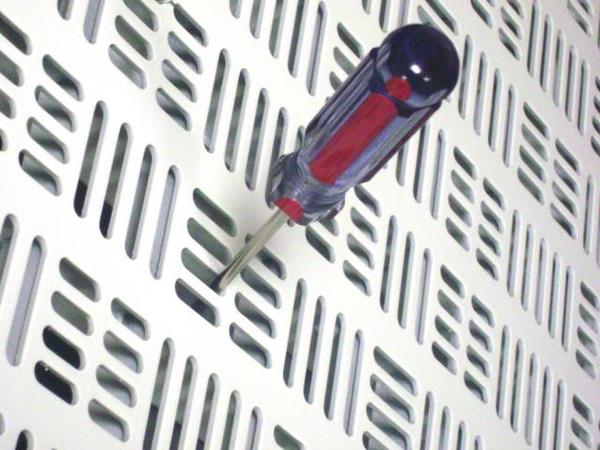

Adapts in seconds - no tools required ! Infinity® was the first to introduce a universal air grate to the market with high performance air cooling and adaptability between wood core and steel panel systems WITHOUT TOOLS OR COSTLY MODIFICATIONS. This can significantly reduce the high cost of skilled labor when multiple systems are used within the same facility or co-locations

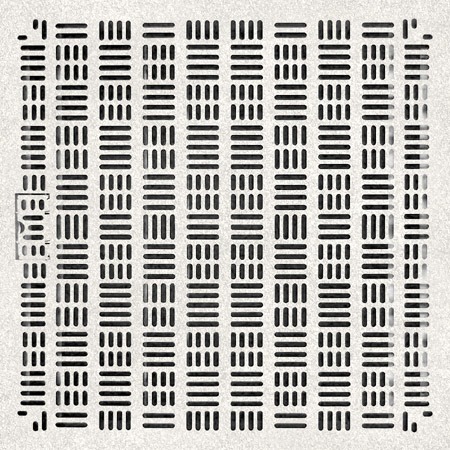

The Infinity Air Grate is a heavy duty 24" x 24" ,perforated steel floor panel that can adapt into virtually every access floor system ever made. With a massive 55% open area, the Infinity Air Grate delivers over TWICE the cold air flow of other perforated panels along with the strength to support a static load of 1,500 LB.
Why Choose Infinity Air Grate? - 55% Open Area Delivers over TWICE as much cold air as other perforated panels
- Universally Adapts to Most Floors
- Flush-fit Installations (- floor systems with a thickness of 1 to 1- 5/8" )
- Rugged Heavy Gauge Steel Panel
- Built-in, Self Retracting Easy Lift Handle
- Static Load of 1,500 LB
- Ultimate Load Capacity of 4,000 LB

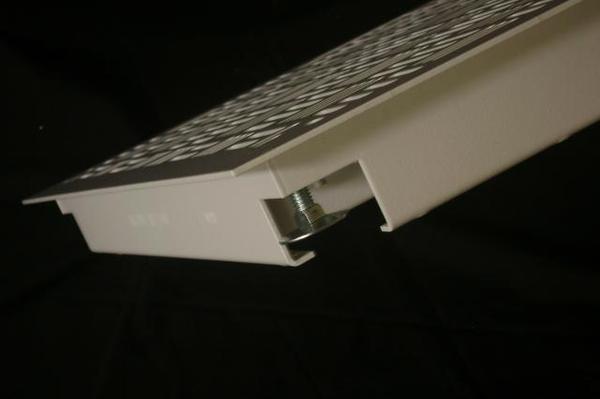

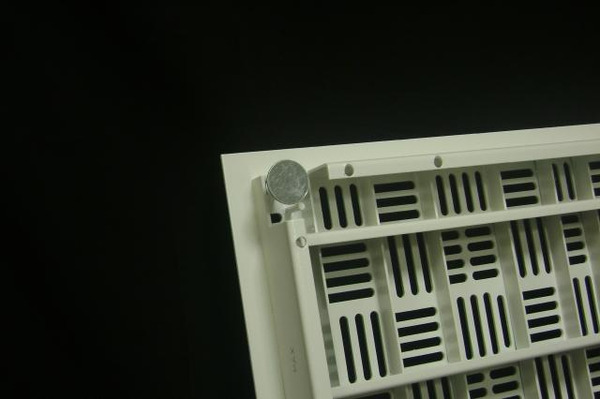

- Accessory Options: Quad Damper Kit, Leveling Legs & Z-Plates (sold separately)
Built-in, Easy-lift Handle A self-retracting, easy-lift handle is built into every Infinity® Air Grate making

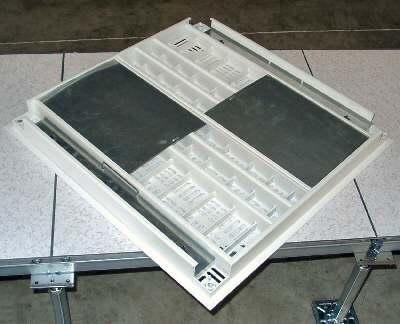

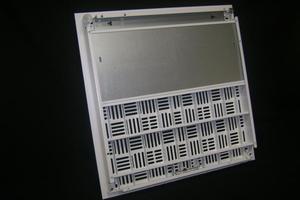

it the simplest panel to lift and manage. One finger lifts the handle allowing convenient removal of the grate. A durable, epoxy white powder coat finish is standard on all Infinity Air Grates. It provides a long-wearing, corrosion-resistant finish to ensure years of outstanding service. The unique Quad Damper (patent pending) design flexes into place and easily throttles air flow up or down to help balance static pressure and for applications where full flow capacity of the Infinity® Air Grate is not required.
Infinity® Air Grate delivers three times the air cooling CFM1 to server racks in cold aisles of a high density data center. Computer rooms equipped with ordinary perforated airflow panels struggle to deliver 250-450 CFM, but certifed tests show with a static pressure of .10 (H2O) inches, the Infinity® Air Grate with 55% open area delivers 1145 CFM.
Quick Corners are required and are sold separately. Please view the Quick Corner Selection Chart for more details. Extension plates are optional and are also sold separately. An optional damper kit can also be used to control the amount of open area.
Note: Most standard panel for cementious filled panel systems. Call 800.686.5312 for product selection assistance
