Manufacturer
Infinity
Product #
ISGQCMX12-GW
Catalog #
ISGQCMX12-GW
Weight
25.0 lbs.
Sale Price
Contact Us
Quantity

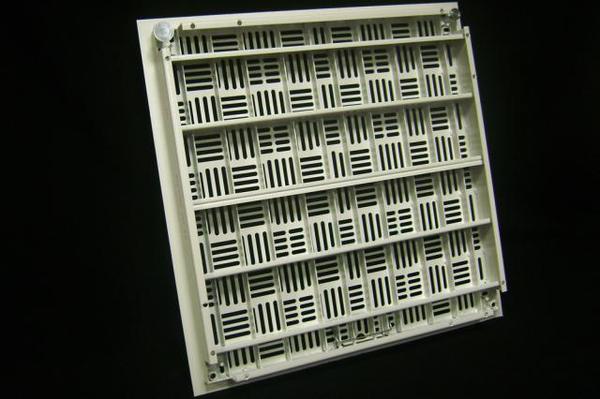

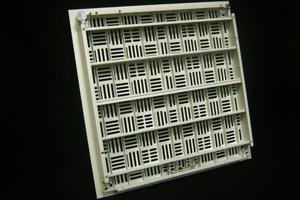

Infinity® Air MAX-AIR Grate-66%

66% High Volume Air Flow
Glacier White
1250# Grate


Overview

• 66% High Volume Air Flow
• Patented Universal Design
• Adapts without tools
• Delivers 7’ Cold Air Plume
• Improved PUE

MAX-AIR delivers 15% more cool air volume than the Infinity standard (55%) model and weighs just 28 LBS making it one of the lightest, easiest panels to manage in the data center. MAX-AIR’s new enhanced slot design allows greater air volume transfer and cooling effectiveness closer to the rack. Optimal supply air temperatures to Lo-Mid-Hi server inlets improves energy efficiency and equipment reliability.

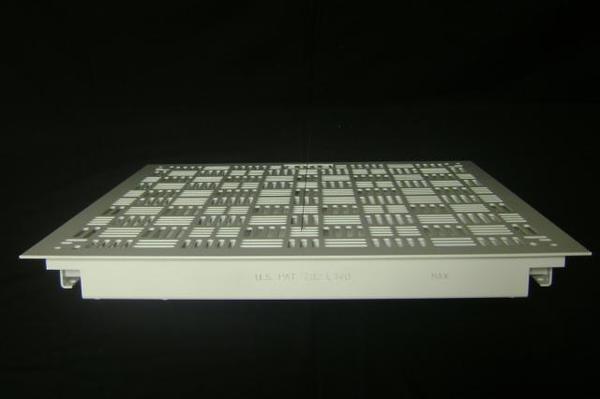

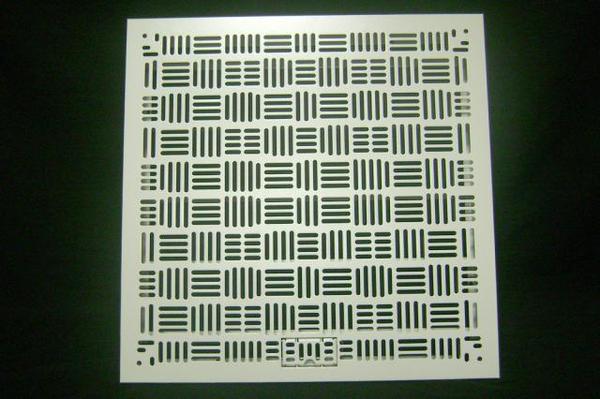

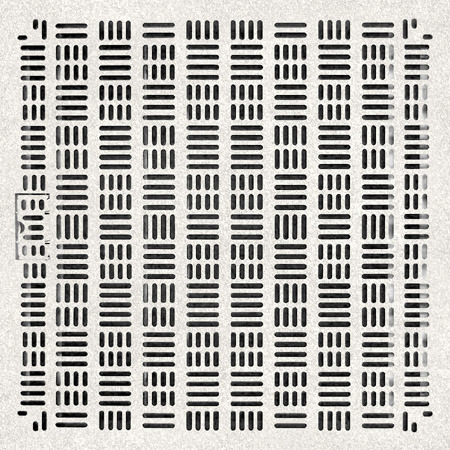

The Infinity Max-Air Grate 66% open panel is a 24" x 24" steel perforated floor panel with a factory applied epoxy powder coat finish to prevent corrosion and is available in three Premium Finish Colors. The Infinity Air Grate is compatible in access floor systems with up to a maximum stringer width of 1-1/2". Steel panel floor systems typically require 1" leveling legs. Wood core panel systems typically require 3/4" leveling legs and z-brackets. Leveling legs and z-brackets are not included. An optional damper kit can also be used to control the amount of open area.

Specifications

  • 1250 # Wt Rated

    • Additional Info
    Datasheets:
    Accessories
    Infinity Floor Grate Quad Damper Kit
    Infinity Floor Grate Quad Damper Kit
    Control the amount of open air on the Infinity Air Grate.

    Quantity
    		 Quick Corner Extension Plate
    Quick Corner Extension Plate
    Four (4) Per Grate

    Quantity
