- Product #
- DCAE84DSL
- Catalog #
- DCAE84DSL
- Weight
- 201.0 lbs.
- Sale Price
- Contact Us

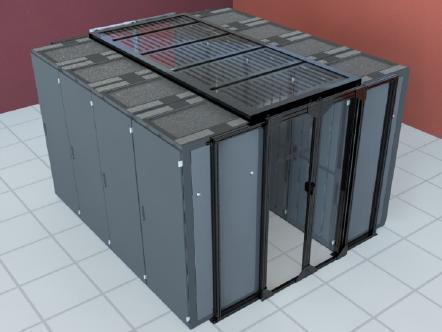

Vertiv Aisle Containment System-45U
85.3" H x 73.3" W
Overview
Double Sliding Door System:
Aisle Containment Systems from Vertiv optimize the efficiency, design and operation of your data center infrastructure. Row-based containment solutions support both standard and non-uniform hot/cold aisle applications.
Offerings include: Modular roof and door systems compatible with Vertiv data center racks; Vertical systems for non-uniform rows and rack heights; and Retractable systems with a universal door, compatible with uniform rows and racks. All systems are compatible with the SmartAisle intelligent, row-based infrastructure.
Features:
•Variable standard components are interchangeable to create custom solutions
•Optimize cooling efficiency by up to 30%
•Increase space efficiency and availability capacity
•Easy to retrofit to existing hot/cold aisle configuration
Flexibility:
•Configurations to fit uniform and non-uniform aisle configurations
•Suitable for raised or non-raised floors
•Retrofit to existing aisle configurations
•Compatible with Emerson Network Power racks, and racks by other manufacturers
Higher Availability:
•Variable standard components interchangeable to create custom solutions
•25+% increase in available cooling capacity by implementing aisle containment
•Interoperable with SmartAisle solutions for greater infrastructure visibility
Lowest Total Cost of Ownership:
•Increase of 30+% cooling efficiency
•Utilize existing cooling system
•Payback within a few months to less than two years
•Low initial investment
Ideally Suited For:
• Hot aisle/cold aisle applications
• Raised floor data centers with perimeter cooling
• Non-raised floor data centers using row-based precision cooling systems such as Liebert® CRV™ or Liebert XD™
• Retrofit to existing racks, or DCF™ & DCM™ racks
• Variable standard components are interchangeable to create custom solutions
• Optimize cooling efficiency by up to 30%
• Increase space efficiency and availability capacity
• Easy to retrofit to existing hot/cold aisle configuration
For assistance call (800)-686-5312 or email:Sales@MainlineComputer.com
Specifications
GUIDE SPECIFICATIONS:
Aisle Containment - RS Doors
1.0 GENERAL
1.1 SUMMARY
This specification shall define the mechanical characteristics and requirements for the Aisle Containment - RS Doors.
1.2 STANDARDS
The product shall be designed in accordance with the following agency standards or certifications. Where a conflict arises between these documents and statements made herein, the statements in this specification shall govern.
Acrylic Sheet is ASTM D 4802 Category A-2 compliant
Acrylic Panel Specifications:
Thickness: 0.236" (6mm)
Light Transmittance: 92%
Shear Strength: 8.4m psi2 (590 kg/cm 2)
Impact Strength: 5 ft.-lb./in.2 (0.35kg/cm2)
Maximum Recommended Continuous Temperature: 175°F (79°C)
Heat Distortion Temperature: 200°F (93°C)
Maximum Shrinkage: 2.5%
Water Absorption (Weight Gain on immersion for 24 hours): 0.3%
Smoke Density Rating: 13.5%
Fuel Contribution Factor: 11,300 BTU/lb.
2.0 PRODUCT
2.1 TYPES
RS Doors may be used with any rack. RS Doors may be used alone or with the Vertical System or the Retractable Roof System. The double sliding doors shall be constructed of black aluminum extrusion, full viewing polycarbonate panels. RS Doors must be anchored to the floor and attached at the top of the rack or in-row equipment.
• Aluminum Frame: Black anodized with an ultimate tensile strength of at least 22,000 psi (1517 Bars).
RS Doors
Cabinet
Height Actual Height
in. (mm) Width
in. (mm) Weight
lb. (kg) Shipping Weight
lb. (kg) P/N
42U 79.33 (2015) 73.3 (1862) 186 (84) 396 (179) DCAE78DSL
45U 85.3 (2167) 73.3 (1862) 201 (91) 411 (186) DCAE84DSL
48U 90.2 (2291) 73.3 (1862) 207 (94) 418 (190) DCAE88DSL
Additional Info
Datasheets:
Warranty Info
STANDARD WARRANTY:
RS Doors shall be warranted against defects in materials and workmanship for two (2) years from the date of shipment. For the complete warranty terms and description, refer to the separate warranty statement at www.liebert.com
