Server Cage.840
Server Cage partition panels easily bolt together and are shipped already sized.
Overview

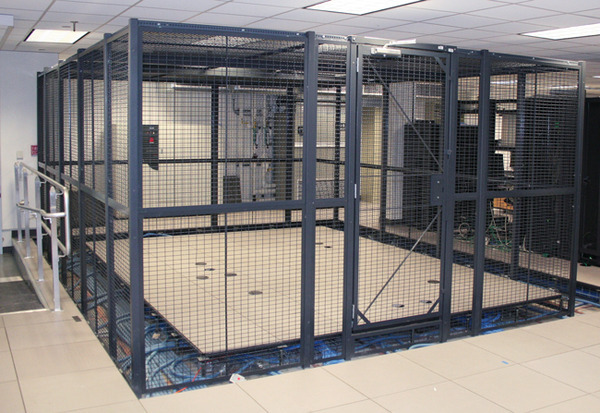

Our Modular Security Cage system utilizes twenty standard panels to accomplish nearly any layout. These panels simply bolt between posts. Drawings provided with each order make installation easy enough for your own personnel.
STRENGTH Panels bolt to posts which have welded base plates for direct anchoring to the floor; no brackets or shoes to come loose
STRENGTH Panels bolt to posts which have welded base plates for direct anchoring to the floor; no brackets or shoes to come loose.
FAST The 840 system installs as fast or faster than any other system on the market. Our angle frame panels with slotted bolt holes give clear access to assembly hardware and allow fine tuning adjustments without compromising the strength of the installation. Our system does not require level floors and precise alignment like some hook and slot mounting systems.
TAMPER-PROOF Our 3/8" hardware - the heaviest in the industry - is inaccessible from the exterior of the partition, preventing intruders from disassembling the parts to gain access to secured items.
QUICK-SHIPPING Our continued commitment to customer service dictates that we maintain an inventory of stock size parts ready for shipment with 48 hours of receiving your order.
OPEN BUT SECURE The woven wire mesh construction provides a formidable barrier to intruders, while allowing the free passage of existing lighting, sprinkler, and ventilation systems.
Features:
• Twenty standard sized panels 4'-0" or 5'-0" high, by 1'-0" to 10'-0" wide.
• Stack two or more panels between posts to reach wall height.
• Standard size panels work in ceilings and walls.
• Custom size panels and special heights available.
• Hinged, double hinged, sliding, and vertical rise doors available.
• Sliding doors have patented tamper resistant latch mechanism.
• Angle frame design gives installer clear access to hardware, speeding installation.
• Assembly hardware is inaccessible from the secured side of the partition.
• Standard 3/8" mounting hardware is the heaviest in the industry.
• Heavy duty options available.
• Panels may be ordered with any mesh, expanded metal, sheet metal, or clear Lexan.
EASY TO ORDER Download a worksheet, fill it out and fax it to our Quick Quote service at 614-436-2360. We will contact you with price and delivery information. Or just call us at 800-686-5312 and describe your layout. One of our experienced sales people will be glad to assist with your project or refer you to a local dealer who can take care of all the details. Or simply sketch the layout, and fax it to our Quick Quote service line at 614-436-2360. We will contact you with price and delivery information. Installation service available in some areas of United States and will be glad to quote an installed price.
For assistance with this solution call (800)-686-5312 or Sales@MainlineComputer.com
IT Security Cages Quote::
Specifications
Style 840 Woven Wire Co-Location Cage MATERIAL SPECIFICATIONS
PANELS - Shall be 10 gauge steel wire crimped and woven in to 2" x 1" opening rectangular mesh, securely welded into a frame of 1-1/4" x 1-1/4" x 1/8" steel angle factory punched with 7/8" x 7/16" slotted holes to accept 3/8" mounting hardware. Panels four to six feet wide shall have one 1/4" x 3/4" flat stiffener, wider panels receive two 1/4" x 3/4" stiffeners. All panels shall be fastened to posts with 3/8" x 3" plated bolts and nuts.

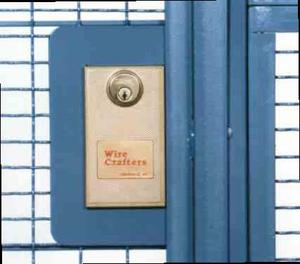

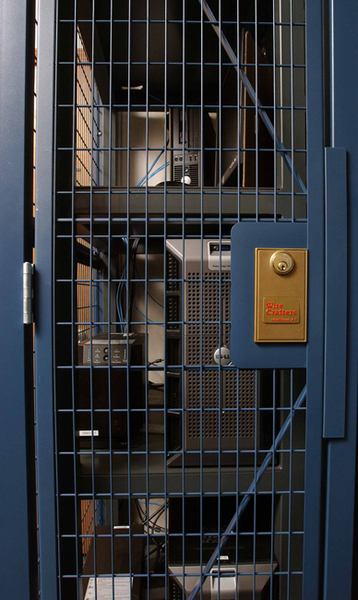

DOORS - Hinged shall be constructed of the same materials as the panels with two 1/4" x 3/4" horizontal stiffeners across the width, and two diagonal 1/4" x 3/4" stiffeners from center to the corner. Hinged doors shall be equipped with padlock lugs (cylinder lock optional), three 4" x 4" spun pin hinges, and pick plate/slam bar assembly.
DOORS - Sliding shall be constructed of the same materials as the panels with two 1/4" x 3/4" horizontal stiffeners across the width, and two vertical 1/4" x 3/4" stiffeners from center to top or bottom. Sliding doors shall be equipped with two 4 wheel trolley trucks, 1-7/8" x 2-3/8" door track, pad lock lugs (cylinder lock optional), and door keeper assembly.
POSTS - Shall be made of 2" x 2" x 14 gauge steel tubing. Base plates of 2" x 7" x 1/4" steel flat with two 7/16" round holes for anchoring, shall be welded to each tube. Posts are factory drilled with 1/2" holes to accept hardware for mounting panels.
HARDWARE - Shall be 3/8" standard thread grade two plated nuts and bolts. Floor anchors are 3/8" wedge type-provided.
FINISH - Non-plated parts receive one coat of gray acrylic enamel. Touch up paint included with each shipment.
Additional Info
Datasheets:
Warranty Info
In November of 2002, our manufacturer achieved quality system certification to ISO 9001:2000; proving once again to be the leader in the wire-mesh partition industry. We are the first to achieve this certification in our industry and to date not one of our competitors has accepted our challenge to step up to this level of commitment, and pursue this certification for their own quality system. Our commitment to excellence doesn’t stop there. In 2005, as an effort to decrease delivery times, increase quality, and keep prices competitive, we started the implementation of Lean manufacturing. These concepts and methodologies are used all over the world by companies who realize that it takes a commitment to excellence to assure customer satisfaction.
If you have any questions related to these two implementations please contact our sales staff and they will provide you with any information you require.
