- Product #
- FF Grate-24
- Catalog #
- FF Grate-24
- Weight
- 25.0 lbs.
- Suggested Retail
- $0.00
- Sale Price
- Contact Us

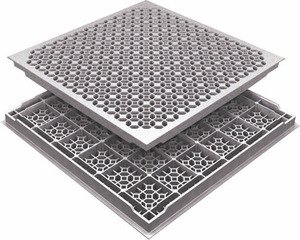

Tate GrateAire®
56% Open Airflow Panel
Overview
Heat Management Solution for Data Centers
The GrateAire® aluminum grate is designed for new and existing access floor installations, providing superior
airflow and rolling load performance.
System Highlights:
• Unmatched ability to handle heat density needs of the most demanding mission critical facilities
• Achieve densification never before possible with perforated panels
• Unique design provides seamless compatibility with All Steel and ConCore® Panels
• Effortless reconfiguration and retrofit of any existing stringered access floor, without modification
• One GrateAire® can cool over 14kw of heat, which is about the same as 75 servers in one cabinet
BENEFITS
ROLLING LOAD
• Nearly seven times more rolling load capacity than perforated panels. Can be used in aisles and high traffic areas.
STRENGTH
• High strength, low weight, all aluminum die-cast construction
COMPATIBILITY
• GrateAire® is compatible with All Steel and ConCore® panels utilizing bolted stringer systems
AIRFLOW
• One GrateAire® can perform the cooling of nearly four perforated panels, without the comparable cost.
Note: For Steel Bolted Stringer Systems.
For assistance on your project call Mainline Computer Products toll free at:
(800)-686-5312 or E-mail: Sales@MainlineComputer.com
Specifications
GENERAL INFORMATION
• Compatible with All Steel and
ConCore® panels
• 24 inches square
• Panel weight: 4.7 lbs/ft2 bare
• Panel height: 11/4 “
• Flange width: approximately 1/2” inch
to accommodate standard 3/4” wide x
11/4” deep stringers
• Die cast aluminum construction
• Class A flame spread rating
• Non-combustible material
• 56% open area
• Available with coatings
• Top surface adjustable damper available
• Removable with portable lifting device
Additional Info
Warranty Info
Notes:
1. Tate Access Floors, Inc. uses Ceiling and Interior Systems Construction Association (CISCA) as a guide in the development of all test procedures.
2. Concentrated, ultimate, and impact load capacities are tested by imposing loads on a one square inch area. Results above indicate weakest point
of panel. Permanent set will not exceed 0.010 inches after load is removed.
3. Rolling loads are performed using one wheel rolling across panel on same path for designated number of passes.
4. For further information and product specifications, call the Tate Hotline at 800-231-7788.
5. Based on typical computer room conditions running at 0.1” static pressure, whereby each 200cfm of cold air will dissipate approximately 1,000 watts
of heat.
