Overview

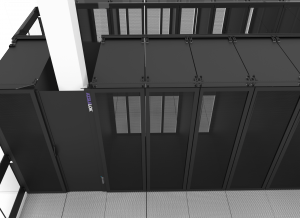

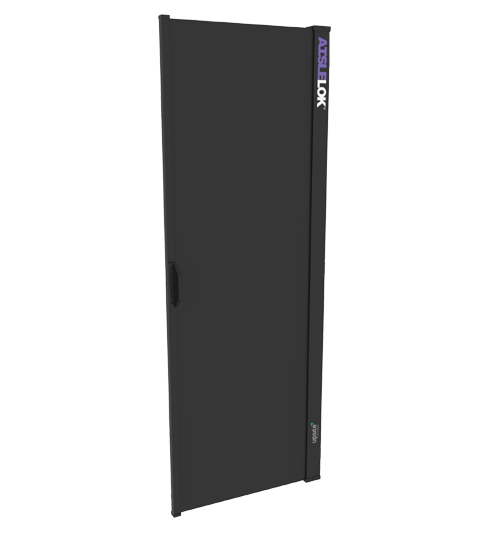

Magnetically attaches to rack sides to close off gaps, such as those created by building support columns or missing IT racks. Adjustable panel is capable of enclosing gaps 10"-60" wide. Standard height is 42U.

Overview:
• Closes gap widths from 10″ to 60″ wide (250-1500mm) with scrolling, adjustable panel.
• Features a tool-less design and easily attaches directly to the rack side panel magnetically.
• Total installation time is typically less than a minute.

Features:
• Covers gap widths from 10” to 60” (250-1500mm)
• Easy to order; no measuring or customization required
• Installs out of the box. No assembly or configuration required
• Tool-less installation allows attachment directly to the cabinet side panel magnetically
• Rugged, high quality design
• Symmetrical design allows for mounting on left or right side.
• Reversible design— can show either the black side or white side of the material
• Can easily be removed and reapplied in minutes as your computer room needs change
• Flame-resistant rated materials
• Adjustable Rack Gap Panel case measures
• 4"W x 4"D x 80–90.5"H and is suitable for gap widths that range from 10" to 60" (250–1500 mm).
• Adjustable Rack Gap Panel requires a minimum of 4" of clearance to install in a gap.


Benefits
• Reduces exhaust air recirculation
• Supports Increased reliability and availability by helping to reduce server intake temperatures and hot spots caused by hot air recirculation
• Enables the reduction of bypass airflow
• Improves cooling airflow, which allows for higher rack densities
• Provides the opportunity to increase set point temperatures and/or turn off cooling units, which can reduce energy costs.
• Adapts to the computer room as needs change; not locked into a permanently attached design
• Modular design and out-of-the-box installation does not require 3rd party design, engineering, or installation
