The RSM series "RacSense" PDU combines power distribution with power and environmental monitoring in a stand-alone unit. "RacSense" is completely self-contained with no need to download additional software. A "plug & play" solution that generates web pages and graphs via your web browser. Internal sensors include Current, Voltage, Temperature, Humidity, Airflow, Light Level, and Sound Level.

Three I/O ports for external contact closure type sensors such as Door and Water sensors. Temperature, Airflow Sensors and Network Cameras are available to monitor multiple cabinets, trouble spots or an entire room. "RacSense" has user selected high and low limit alarms. Alarm notification via email, SNMP trap and/or an onsite audible alarm via the optional RSD2X8 remote display. The RSM is easily integrated into your network solution and provides multiple level password protection.

The RSM series "RacSense" PDU footprint provides 20 individually spaced receptacles in a 66" vertical mount unit. The 1.61" x 1.61" profile accepts mounting clips that allow the unit to be oriented in three different directions. Optional mounting brackets are also available.

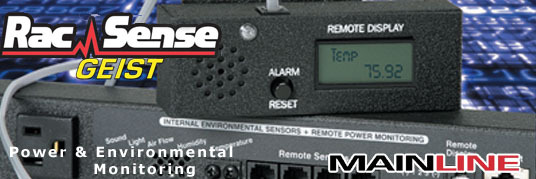

The Model RSD2X8 is an LCD local display unit that is connected to the RSM series PDU with a plug-in RJ type cord. The display may be mounted at the front or top of a cabinet eliminating the need to enter a secure cabinet environment. This self-powered display unit will provide a scrolling display of data gathered by the RSM unit. Upon breach of user-selected thresholds, the RSD will sound a high pitch local alarm that may be silenced by pressing the "reset" button.


- Internal Power and Environmental Sensors
- Up to 16 Remote Sensors
- Meter Display Module with Alarm
- HTTP, Telnet, SMTP, SNMP Enabled
- User Defined Alarm Thresholds Generate
- Alarms Transmit to Assigned Remote
Terminal Locations, PDAs or Cell Phones
- Graphing of User Selected Data
- NO Client Software Downloads or
Configurations Required
- A "Plug and Play" Solution
