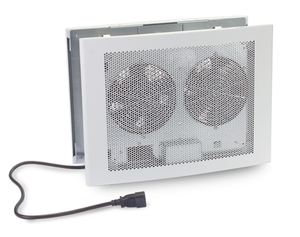

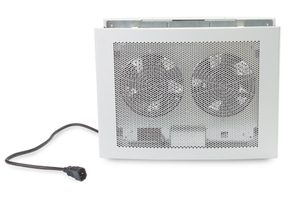

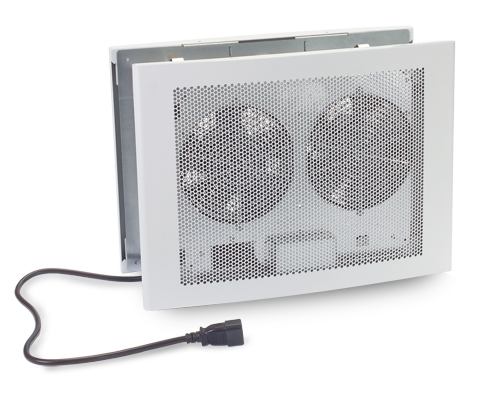

APC Wiring Closet Ventilation Unit-ACF301
100-240V 50/60HZ
Overview
Adaptability
Architecturally neutralUnobtrusive design and coloring, blends in with the surroundings.Hardwire capableFor installations where hard wiring is required or prefered.
Manageability
LED status indicatorsQuickly understand unit and power status with visual indicators.Dry contact outputProvides remote notification of failures when used with APC environmental monitoring unit or system.Predictive failure notificationMaximizes system availability by providing early warning of required fan or filter replacement.
Agility
Easy to installInnovative design allows for fast, easy installation by almost anybody.Multiple mounting methodsFlexible design allows for both dry wall and ceiling mount installations.
Availability
Fault-tolerant fan system the event of a fan failure, the remaining fan(s) will continue to operate.
Product Distribution
Specifications
Input
Nominal Input Voltage 100V , 120V , 200V , 208V , 230VInput frequency 50/60 HzInput Connections Hard Wire 3-wire, IEC-320 C14, NEMA 5-15PNumber of Power Cords 1Input Power 85.0Watts
Physical
Maximum Height 12.8inches ( 325mm , 32.5cm ) Maximum Width 17.1inches ( 434mm , 43.4cm ) Maximum Depth 7.0inches ( 178mm , 17.8cm ) Net Weight 24.0lbs. ( 10.91kg ) Shipping weight 32.8lbs. ( 14.91kg ) Shipping Height 13.5inches ( 343mm , 34.3cm ) Shipping Width 23.0inches ( 584mm , 58.4cm ) Shipping Depth 19.0inches ( 483mm , 48.3cm ) Color White
Environmental
Storage Temperature 0 - 50 °C Storage Relative Humidity 0 - 95 % Storage Elevation 0-15000ft ( 0-4500meters ) Audible noise at 1 meter from surface of unit 60.0dBA
Conformance
Approvals cUL Listed, CE, EN 55022 Class A, EN 55024, FCC Part 15 Class A, VCCIStandard warranty 2 years repair or replace
General
Air Flow 475.0CFM ( 224.18lps )
