Home > SERVER RACKS AND CABINETS > Wall Mount Cabinets > Pivoting Rack
Manufacturer
Mainline
Product #
SR-40-28
Catalog #
SR-40-28
Weight
227.0 lbs.
Suggested Retail
$1,599.00
Sale Price
$999.00
Quantity

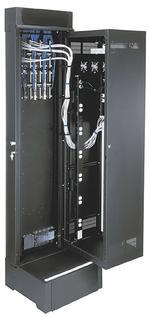

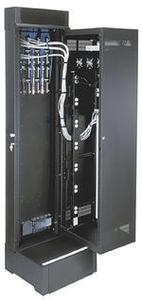

SR Series Pivoting Rack-$999.00

The SR Series pivoting rack enclosures are designed to mount to the wall,
while the entire weight of the system is safely supported by the floor.


Overview

Available in 22", 28" and 32" depths!

- Tool-free QuickmountTM system allows for easy mounting of the center section to the backpan on the job site
- Optional zero clearance latch allows side-by-side or corner mounting to save room
- 16-gauge steel construction with 1/8" thick laser-cut corner braces
- Bottom cable entry platform supports weight of rack on floor and provides attractive shroud to conceal conduit stubs
- Low-friction wear strip on bottom platform allows rack to swing open easily
- Adjustable 10-32 threaded front rackrail with marked rackspace increments, rear rackrail optional
- Knockout for low-voltage Decora R devices in face of center section, top and bottom
- 12-1/2" x 12-1/2" opening in the backpan for electrical pullbox
- Laser knockouts in the center section, accommodate two 4-1/2" fans, top and bottom for cooling
- Durable black textured powder coat finish
- UL Listed in the US and Canada

Specifications

  • Fully welded construction, 16-gauge steel
  • 500 lb. weight capacity
  • Backpan features a large laser knock-out panel and accommodates 89-D brackets and electrical boxes when used with optional subplate.
  • Bottom cable-entry platform supports entire weight of rack on floor
  • Low-friction wearstrip on bottom facilitates easy opening
  • 40 rackspaces (70") or NEW 46 rackspaces (80-1/2")
  • 3 depths available. 22" OD Depth (20" useable), 28" OD Depth (26" useable), and NEW 32" (30" useable)
  • Finished in a durable black textured powder coat
  • Includes all features of DWR series wall cabinets
  • NEW! Front Mounted Zero Clearance Latch saves valuable wall space by allowing wall racks to be placed side-by-side, in a corner, or wherever side clea
  • optional sub plate allows for the mounting of up to (4) 89-D type brackets, (4) 1900 boxes or (1) Raco 3 gang box.
  • Mount up to (4) SR-SUB's to each SR-40-22 backpan (view illustration)
  • Weight Capacity: 500 lbs.
  • Backpan accepts up to 4 subplates.
  • Overall Height: 90-1/4"

    • Additional Info
    Accessories
    Warranty Info
