Overview

Specialized enclosures with integrated cooling, noise dampening, and power distribution for server and network applications in office environments.

AR4038A Standard Features

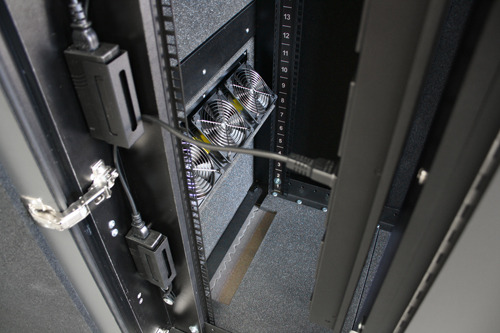

• Integrated power distribution
• Provided with a rack power distribution unit servers and other equipment are ready for deployment.
• Acoustic foam lining for noise dampening
• Superior noise reduction of installed IT equipment allowing the enclosure to be placed in a quiet environment.

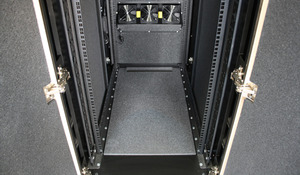

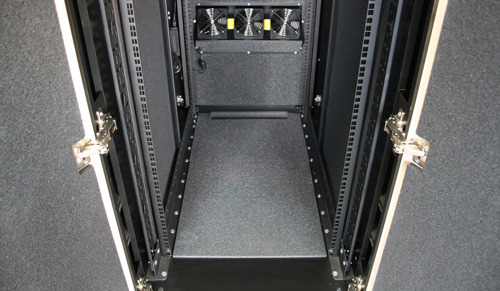

• Integrated heat removal
• High efficiency fan modules remove heat and eliminate the need to purchase a costly cooling unit for your IT equipment.
• Removable side panels
• Provides customers with easy accessibility to equipment.

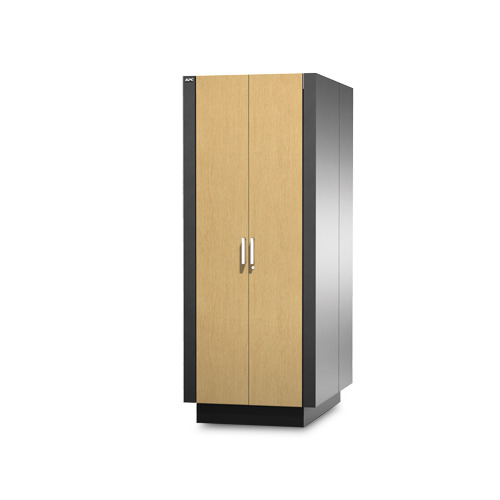

• Light oak veneer finish

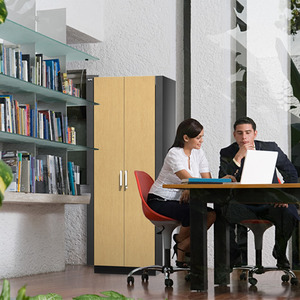

• The enclosure blends discretely into almost any office environment.

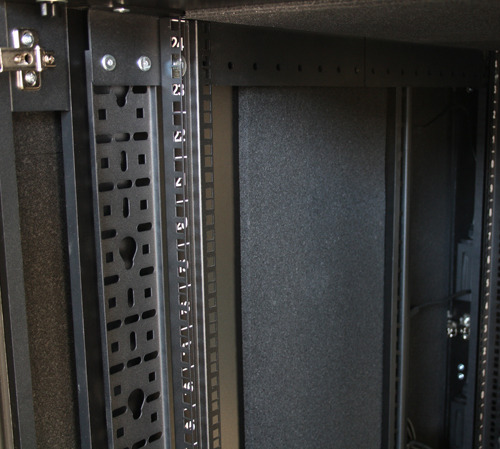

• Four vertical 0U accessory channels and cable containment brackets
• Provides multiple mounting locations for cable management accessories and rack PDUs without using critical equipment space.
• Adjustable equipment mounting rails
• The equipment mounting rails, front and rear, are fully adjustable for various mounting depths, for rear-facing equipment mounting or additional clearance from the front door. Maximum rack depth 88 cm/34.6 in. Minimum rack depth 12 cm/4.7 in.
• Dedicated upper & lower rear cable access points
• Each cable port has a capacity of up to 400 cables. Upper cable port is ideal for overhead cabling and the lower cable port is situated perfectly for ground or under-floor cabling.

Agility
• Plug and Play setup
• Fast and Easy set up
• Toolless Rack Mounting Capabilities
• Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure.
• Lockable front doors
• Protect IT equipment from unwanted access
• Light oak veneer finish
• The enclosure blends discretely into almost any office environment.
• Acoustic foam lining for noise dampening
• Superior noise reduction of installed IT equipment allowing the enclosure to be placed in a quiet environment.

Floor space Requirements:
• Enclosures are designed to be placed with their back directly against a wall. Clearance of 200mm / 8” on both sides of the cabinet is essential for normal operation.

Ventilation System:
• Each ultra-low-noise exhaust fan module has a 1.2 kW maximum recommended total thermal load (or 4,100 BTU / hr). The 38U CX has 3 of these. The 24U Cabinet has 2 and the 18U Cabinet has 1.

Noise reduction:
• 18.5 dB broadband noise reduction, measured 1.0 m / 39” in front of the enclosure (HP and Dell servers were used as noise source in noise reduction measurements)

Mobility:
• 4 x heavy duty castor-type wheels
Front wheels have 360°rotation for manoeuvrability and rear wheels have fixed front-to-back motion for stability

Rear and side access:

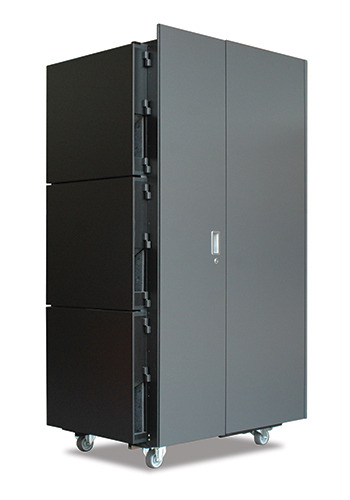

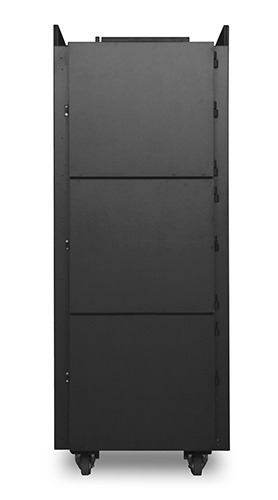

• Detachable rear side panels, left and right, for equipment installation and maintenance access

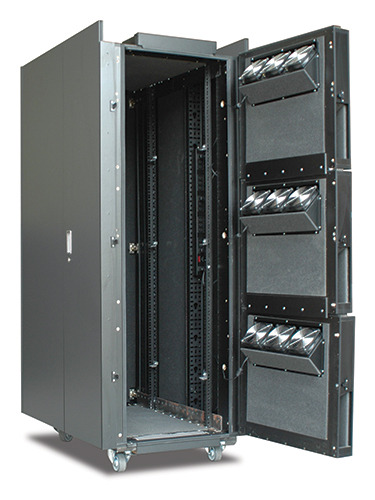

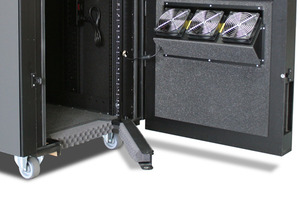

Detachable rear fan modules gives completely open rear rack access

Cable management:
• 75 mm / 3” width full-height vertical 0U accessory channels located on each side at the front, middle, and rear of the rack

Grounding:
• All equipment installed within a NetShelter CX should have conventional grounding via power cables, but unlike conventional metal-case cabinets, the NetShelter CX has no requirement for additional grounding in the form of ground strapping or pipe earthingetc. The enclosure shell is constructed entirely from non-conductive materials and the rack is completely isolated from outside contact.

Door locking:
• Key operated lock

Includes: Casters, Installation guide, Key(s), Leveling feet, Rack Power Distribution Unit (PDU), Side Panels

Standard Lead Time: Usually in Stock

Specifications

Additional Info

• APC NetShelter CX Brochure


Accessories

Related Products

Warranty Info

2 year warranty
