Tripp Lite SRW10US Wall Mount Enclosure Cabinet 10U 19"


Overview

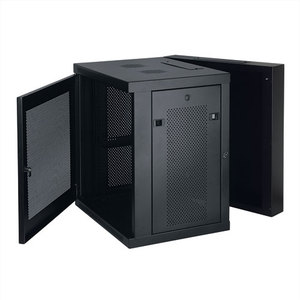

SmartRack 10U Wall-Mount Rack Enclosure Cabinet

Overview

The SRW10US 10U Wall-Mount Rack Enclosure Cabinet is designed to integrate wall-mounting, easy equipment access, and cable management in IT network applications with limited floor space. Ventilated front door and side panels allow generous airflow to keep equipment operating safely. Adjustable rack rails with square mounting holes accommodate up to 10U of standard 19" rackmount equipment. Supports up to 200 lbs of equipment. A sturdy hinge between the cabinet and the wall-mount bracket allows the cabinet to swing away from the wall for easy access to equipment and cabling. Top and bottom panels include convenient cutouts for cable routing.

• 10U with adjustable front and rear vertical rackmount rails
• Hinged cabinet swings away from wall bracket for easy equipment access (swing direction is reversible)
• Locking, reversible front door and locking, removable side panels
• Fully assembled for quick installation
• Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance

Specifications

  • PHYSICAL
  • Installed whole system maximum rack depth (inches) 20.5
  • Installed whole system maximum rack depth (cm) 52.07
  • Installed whole system minimum rack depth (inches) 3
  • Installed whole system minimum rack depth (cm) 7.62
  • Rack Height 10U
  • Shipping Dimensions (HWD/in) 24.41 x 26.38 x 24.41
  • Shipping Dimensions (HWD/cm) 62 x 67 x 62
  • Shipping weight (lbs) 59
  • Shipping weight (kg) 26.76
  • Unit Dimensions (in.) EXTERNAL DIMENSIONS: 21.57 x 23.62 x 21.6 (HWD)
  • Unit weight (lbs) 55
  • Unit weight (kg) 24.94
  • Unit Dimensions (cm) EXTERNAL DIMENSIONS: 54.78 x 60 x 54.9 (HWD)
  • Color Black
  • Style Wall Mounted
  • Weight Capacity - Stationary (lbs) 200
  • Weight Capacity - Stationary (kg) 90.7
  • Cable Access Hole Measurement (inches) 9.812 x 2.35 (l x w)

    • Additional Info
    Accessories
    Warranty Info

    Product Warranty Period (Worldwide) 5-year limited warranty
