- Manufacturer
- TrippLite
- Product #
- SRW12USG
- Catalog #
- SRW12USG
- Weight
- 60.0 lbs.
- Suggested Retail
- $472.00
- Sale Price
- Contact Us

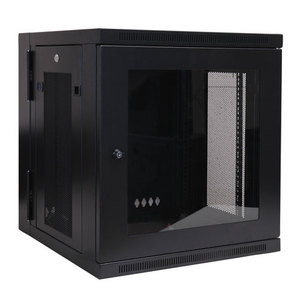

Tripp Lite SmartRack 12U Wall Mount Rack
With Plexiglass Front Door Insert
Overview
Overview

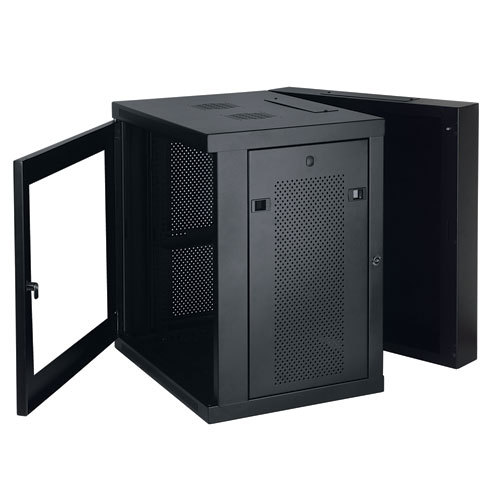

The SRW12USG 12U Wall-Mount Rack Enclosure Cabinet is designed to integrate wall-mounting, easy equipment access, and cable management in IT network applications with limited floor space. Ventilated front door, with Plexiglas® insert, and side panels allow generous airflow to keep equipment operating safely. Adjustable rack rails with square mounting holes accommodate up to 12U of standard 19" rackmount equipment. Supports up to 200 lbs of equipment. A sturdy hinge between the cabinet and the wall-mount bracket allows the cabinet to swing away from the wall for easy access to equipment and cabling. Top and bottom panels include convenient cutouts for cable routing.
Specifications
IPHYSICAL
Installed whole system maximum rack depth (inches) 20.5
Installed whole system maximum rack depth (cm) 52.07
Installed whole system minimum rack depth (inches) 3
Installed whole system minimum rack depth (cm) 7.62
Rack Height 12U
Shipping Dimensions (HWD/in) 27.95 x 26.38 x 24.41
Shipping Dimensions (HWD/cm) 71 x 67 x 62
Shipping weight (lbs) 70
Shipping weight (kg) 31.5
Unit Dimensions (in.) EXTERNAL DIMENSIONS: 25 x 23.63 x 21.6 (HWD)
Unit weight (lbs) 60
Unit weight (kg) 27.21
Unit Dimensions (cm) EXTERNAL DIMENSIONS: 63.5 x 60 x 54.9 (HWD)
Color Black
Style Wall Mounted
Weight Capacity - Stationary (lbs) 200
Weight Capacity - Stationary (kg) 90.7
SPECIAL FEATURES
Grounding lug Front and Back door frames
CERTIFICATIONS
NOM (Mexico) Tested to NOM (Mexico)
Approvals EIA-310-D, IEC 60297-3-100, DIN 41494, IP20 Protection, RoHS
WARRANTY
Product Warranty Period (Worldwide) 5-year limited warranty
Additional Info
Warranty Info
WARRANTY
Product Warranty Period (Worldwide) 5-year limited warranty
