SmartRack 12U NEMA 12-Rated Industrial Wall-Mount Enclosure

NEMA 12-Rated- --(12U)


Overview

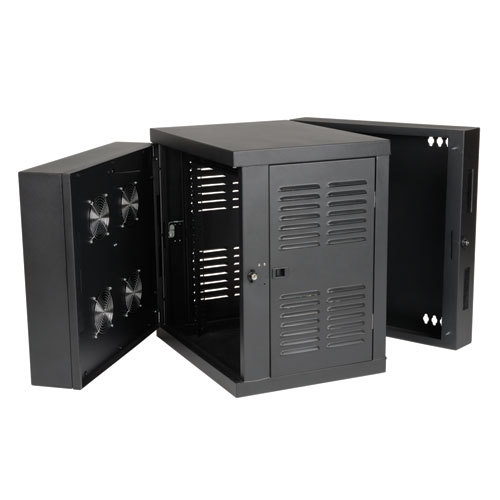

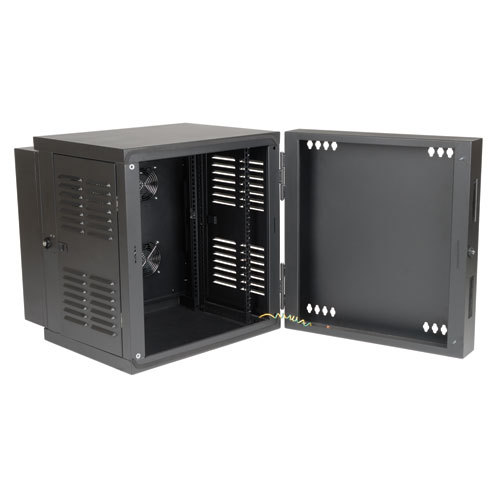

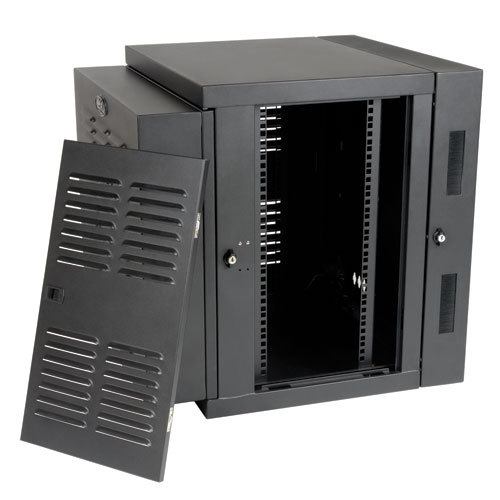

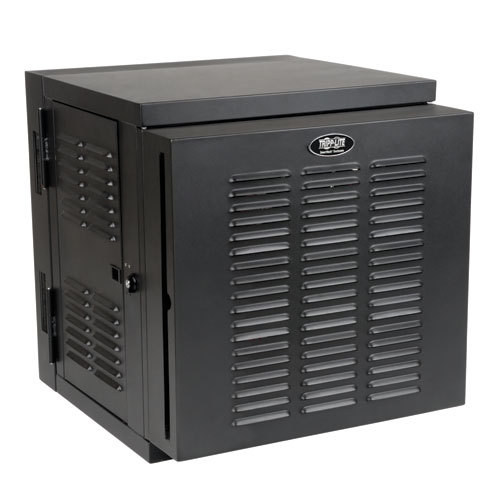

SmartRack 12U NEMA 12-Rated Industrial Wall-Mount Enclosure (includes doors and side panels)
Do you have equipment that needs to operate in environments where there is high amounts of falling dust, dirt, liquid drips or splashes? The SRW12USNEMA provides protection against such occurrences due to its NEMA 12 rating, which is equivalent to IP54. It is the ideal solution for customers who need to protect valuable equipment in harsh working environments with limited floor space that would otherwise overwhelm a typical rack.

• 12U with adjustable front and rear vertical rackmount rails
• NEMA 12(IP54) protection rating
• Hinged cabinet swings away from wall bracket for easy equipment access (swing direction is reversible)
• Locking, reversible front door and locking, removable side panels
• 4 high performance intake fans
• 4 cable ports allow cable access while maintaining dust and moisture resistance
• Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) compliance
• Fully assembled for quick installation

Specifications

  • PHYSICAL
  • Installed whole system maximum rack depth (inches) 20.5
  • Installed whole system maximum rack depth (cm) 52.1
  • Installed whole system minimum rack depth (inches) 3
  • Rack Height 12U
  • Shipping Dimensions (HWD/in) 28.88 x 29.63 x 27.250
  • Shipping Dimensions (HWD/cm) 73.36 x 75.26 x 68.13
  • Shipping weight (lbs) 86
  • Shipping weight (kg) 38.7
  • Unit Dimensions (in.) EXTERNAL DIMENSIONS: 25 x 23.63 x 21.6 (HWD)
  • Unit weight (lbs) 60
  • Unit weight (kg) 27.21
  • Unit Dimensions (cm) EXTERNAL DIMENSIONS: 63.5 x 60 x 54.9 (HWD)
  • Color Black
  • Style Wall Mounted
  • Weight Capacity - Stationary (lbs) 200
  • SPECIAL FEATURES
  • Grounding lug Front and Back door frames
  • CERTIFICATIONS
  • NOM (Mexico) Tested to NOM (Mexico)
  • Approvals EIA-310-E, IEC 60297-3-100, DIN 41494, IP20 Protection Rating, RoHS
  • WARRANTY
  • Product Warranty Period (Worldwide) 2-year limited warranty

    • Additional Info
    Accessories
    Warranty Info

    WARRANTY
    Product Warranty Period (Worldwide) 2-year limited warranty
