One Rack Smart UPS 1500VA Basic System #IAX1SU1KP1
On-demand architecture for Network-critical Physical Infrastructure in computer rooms containing 1-5 racks
Overview
Features:
* Automatic Voltage Regulation (AVR)
* Built-in Web/SNMP management
* Hot Swap Batteries
* Intelligent Battery Management
* Load Meter
* Network-grade line conditioning
* Overload Indicator
* Overvoltage Correction
* Rack Mount
* Replace Batt Indicator
* Sine-wave output
* Software
* User Replaceable batteries
* Web Management

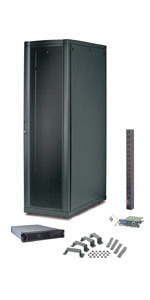

Components:
(1) APC Smart-UPS 1500VA USB & Serial RM 2U 120V
(1) Cable Containment Brackets
(1) NetShelter VX 42U Enclosure w/Sides Black
(1) Rack PDU, Basic, Zero U,15A,120V, (14)5-15
(1) UPS Network Management Card w/ Environmental Monitoring
Technical Specifications
Output
Configured Power (Watts) 980
Configured Power (VA) 1,500
Max Configurable Power 1,440 VA
Nominal output voltage 120V
Output Frequency (sync to mains) 57-63Hz for 60Hz nominal
Output Frequency (not synced) 60
Waveform type Sinewave
Output Connections (19) NEMA 5-15R
Input
Nominal input voltage 120V
Input frequency 50/60 Hz +/- 3 Hz (auto sensing)
Input Connection Type NEMA 5-15P
Cord Length 8 feet
Input voltage range for main operations 82 - 144 V
Input voltage adjustable range for mains operation 75 - 154 V
Main Input Breaker Size 15 VA
Number of Breakers 1
Batteries & Runtime
Battery type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Battery Volt-Amp-Hour Capacity 432
Replacement battery cartridge RBC25
RBC Quantity 1
Communications & Management
Control panel LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
Audible alarm Alarm when on battery : distinctive low battery alarm : configurable delays
Interface port Contact Closure, DB-9 RS-232, RJ-45 10/100 Base-T, USB
Available Smart Slot Interface Quantity 1
Emergency Power Off (EPO) Optional
Physical
Maximum height 81.50 inches ( 207.01 cm )
Maximum width 23.50 inches ( 59.69 cm )
Maximum depth 42.20 inches ( 107.19 cm )
Net weight 425 lbs. ( 193 kg )
Shipping Weight 475 lbs. ( 216 kg )
Shipping Height 87 inches ( 221 cm )
Shipping Width 30 inches ( 76 cm )
Shipping Depth 49 inches ( 124 cm )
Weight Capacity (static load) 2,000 lbs. ( 909 kg )
Weight Capacity (dynamic load) 2,000 lbs. ( 909 kg )
Rack Height 42 U
Rack Free Space 40 U
Number of Racks 1
Color Black
Environmental
Operating Environment 0 - 40 °C ( 32 - 104 °F )
Operating Relative Humidity 0 - 95 %
Operating Elevation 0-10000 feet ( 0-3000 meters )
Storage Temperature -15 - 45 °C ( 5 - 113 °F )
Storage Relative Humidity 0 - 95 %
Storage Elevation 0-50000 feet ( 0-15000 meters )
Online thermal dissipation 171 BTU/hr
Conformance
Standard warranty 3 years repair or replace, optional on-site warranties available, optional extended warranties available
Specifications
Includes: CD with software, Installation Guide, User Manual, Web/SNMP Management Card
