Manufacturer
APC
Product #
AR100
Catalog #
AR100
Weight
94.0 lbs.
Suggested Retail
$519.00
Sale Price
$499.00
Quantity

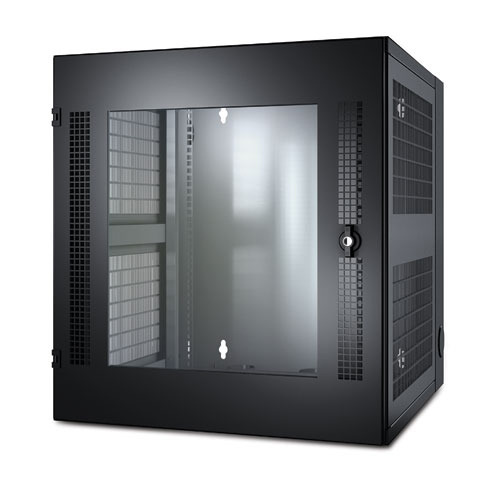

APC #AR100 Wall Mount Cabinet WX (13U)-

Glass Front Door


Overview

AR100 Cool Features

• Adjustable mounting depth -Vertical mounting rails are adjustable for equipment with various mounting depths.

• Ships fully Assembled- NetShelter VX Enclosures ship fully assembled reducing the time required to install equipment.

• Adjustable Front Vertical Mounting Rail -The front mounting rails can be adjusted to allow for various mounting depths and to allow for additional clearance from the front door.

• Doors open 180 degrees - Two people are often required to stand in front of an enclosure on opposite sides to install heavy rack-mount equipment. A door that opens 180 degrees allows for installation of equipment without the need to remove the door making installation fast and easy.

Plus:
- Double-hinged design
- Integrated cable access holes
- Lockable Doors
- Multi-purpose mounting rails
- Powder coat paint finish
- - Ventilated Wall-mountable

Includes: Key(s), User Manual, Wall-mounting template

Specifications

  • Includes: Key(s), User Manual, Wall-mounting template
  • Maximum Height 25.75 inches (654 mm)
  • Maximum Width 23.00 inches (584 mm)
  • Maximum depth 24.50 inches (622 mm)
  • Shipping Weight 115.00 lbs. ( 52.27 kg)
  • Shipping Height 33.00 inches (838 mm)
  • Shipping Width 27.00 inches (686 mm)
  • Shipping Depth 30.50 inches (775 mm)
  • Weight Capacity (static load) 200.00 lbs. ( 90.91 kg)
  • Rack Height 13U
  • Color Black

    • Additional Info
    Accessories
    APC NetShelter WX Caster Kit #AR8359
    APC NetShelter WX Caster Kit #AR8359
    For floor and mobile applications

    Quantity
    Warranty Info

    Standard Warranty 5 year repair or replace

    Standards EIA-310-E Environmental Compliance RoHS,REACH: Contains No SVHCs
