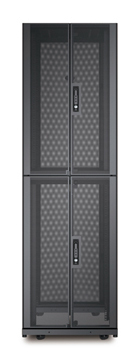

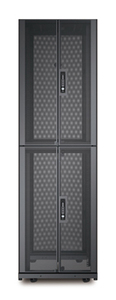

APC NetShelter SX Colocation 2 Compartment #AR3200

2 x 20U 600mm Wide x 1070mm Deep Enclosure w/ Sides Black


Overview

Two compartment enclosure for colocation facilities with customers requiring a minimal amount of rack space. This multi-tenant, security enhanced enclosure is provided with a compact width to optimize data center space.

Features:

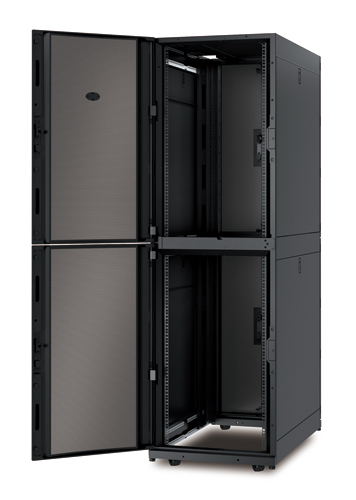

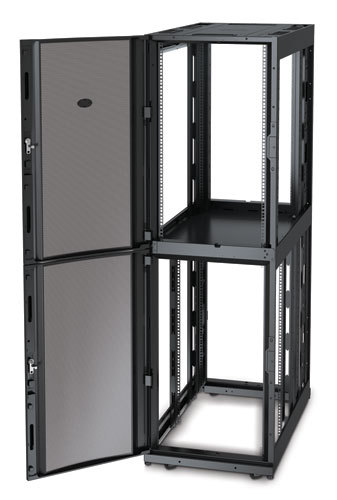

• Divided enclosure with two secure rackmount bays Two customers can share one enclosure, minimizing enclosure footprint and maximizing power and cooling architectures.

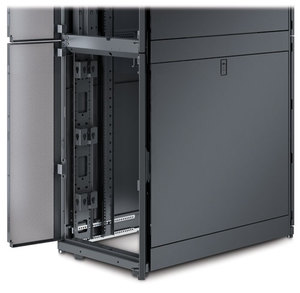

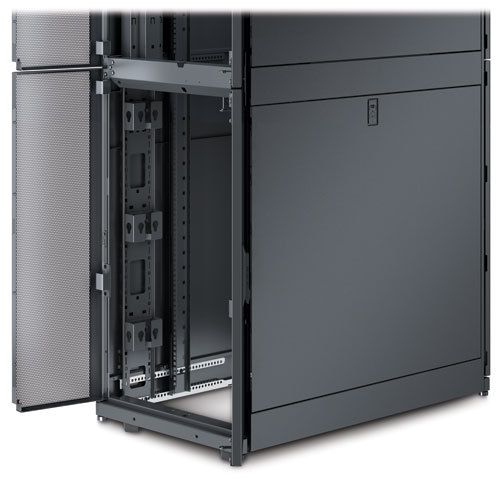

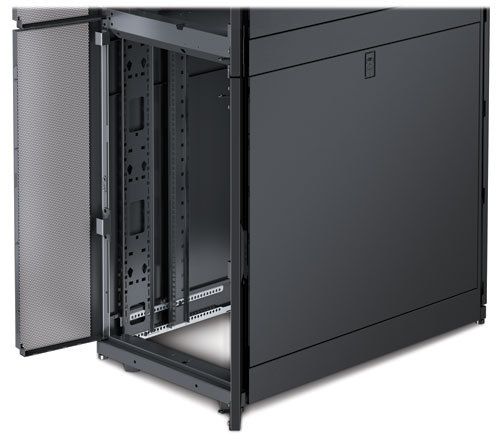

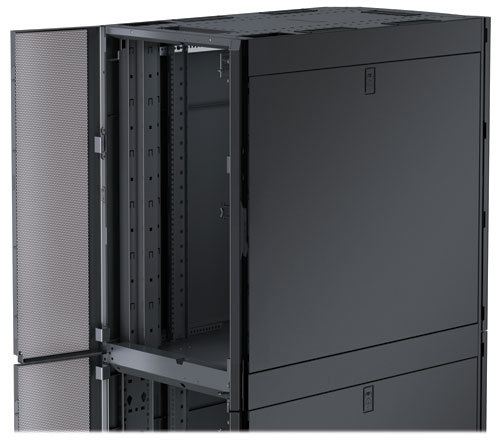

• Top and bottom equipment mounting rails adjust independently Allows each bay to be configured to meet customer specific applications

• Combination lock handle standard Top and bottom sections can be locked independently with a customer designated combination.

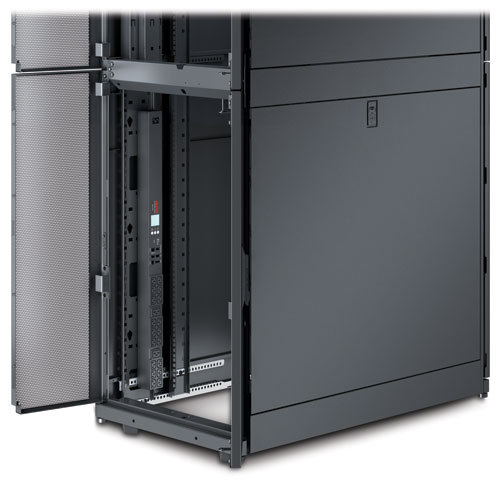

• Security cover for rear accessory channel Rear channel cover isolates cables passing through the top or bottom bay to prevent access from the other enclosure customer.

Includes: 3-Digit Combination Style Handles, Adjustable vertical mounting rails, Baying hardware, Documentation CD, Door key, Installation guide, Leveling feet, Pre-installed casters, Rack mounting hardware, Roof

Standard Lead Time: Usually in Stock

Specifications

  • Physical
  • Net Weight 309.53 lbs. (140.70 kg)
  • Maximum Height 78.39 inches (1991 mm)
  • Maximum Width 23.62 inches (600 mm)
  • Maximum Depth 42.11 inches (1070 mm)
  • Shipping Weight 370.38 lbs. (168.35 kg)
  • Shipping Height 88.39 inches (2245 mm)
  • Shipping Width 35.39 inches (899 mm)
  • Shipping Depth 47.99 inches (1219 mm)
  • Weight Capacity (static load) 3000.00 lbs. (1363.64 kg)
  • Weight Capacity (dynamic load) 2250.00 lbs. (1022.73 kg)
  • Rack Height 42U
  • Color Black
  • Units per Pallet 1.00
  • Vertical Posts 16 gauge
  • Front Door 16 gauge
  • Rear Door 18 gauge
  • Roof 18 gauge
  • EIA Mounting Rails 14 gauge
  • Side Panels 18 gauge
  • Conformance
  • Regulatory Approvals UL 60950-1
  • Standard Warranty 5 year repair or replace
  • Standards EIA-310-E
  • Environmental Compliance RoHS,REACH: Contains No SVHCs
  • Shipping Weight 370.38 Pounds Shipping Length 45.67 Inches Shipping Height 88.58 Inches Shipping Depth 29.53 Inches UPC Code 731304284130 Status Relsd SKU
