Manufacturer
APC
Product #
AR3100SP1
Catalog #
AR3100SP1
Weight
306.0 lbs.

Suggested Retail
$1,500.00
Sale Price
Contact Us
Quantity

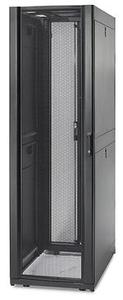

APC NetShelter SX 42u Enclosure #AR3100SP1

Special Shock Packaging.
Includes: Casters, Doors, Ground Studs, Installation Guide, Leveling feet, Mounting Hardware, Roof, Side Panels


Overview

Standard enclosure for low to medium density server and networking applications. Compact width to optimize data center space. 42U height to easily roll through doorways. Additional shock packaging for shipping equipment weighing up to 1250lbs/568kg.

Includes: Baying hardware, Documentation CD, Key(s), Keyed-alike doors and side panels, Leveling feet, Mounting Hardware, Pre-installed casters, Side Panels

Standard Lead Time: Usually in Stock


Features:
- Adjustable Front Vertical Mounting Rail
- Adjustable mounting depth
- Cable Access
- Casters
- Deep form factor (42"/1070mm)
- Door ventilation exceeds 830 in2 (5355 cm2)
- Expanded Cable Management
- Facilitates overhead cable management
- Facilitates overhead power distribution
- Facilitates rear/vertical cable management
- Guaranteed Compatability
- Leveling feet
- Lockable doors and side panels
- Mounts two APC metered PDUs in one rear channel
- Multi-vendor equipment compatibility
- Numbered U positions
- Provides security between enclosures when bayed together
- Quick release doors
- Quick release side panels
- Removeable doors and side panels
- Reversible doors
- Rolls through a 2 meter doorway
- Split rear doors
- Supports 24 inch floor tile spacing
- Supports 600 mm floor tile spacing
- Tool-less mounting
- UBC Zone 4 stabilization provisions
- Ventilated Doors with Scalable Cooling Options
- Vertical Mounting Rails with square holes
- Ships fully assembled

NetShelter SX 42U 600mm Wide x 1070mm Deep Enclosure with Sides Black 1250 lbs. Shock Packaging #AR3100SP1
Shipping Weight 306.0 Pounds
Shipping Length 48.1 Inches
Shipping Height 85.9 Inches
Shipping Depth 29.6 Inches




Pricing does not include shipping charges, please contact Sales@MainlineComputer.com or call (800) 686-5312 for a freight quote.

Specifications

  • Maximum Height 78.39 inches (1991 mm) ;Shipping Height 85.90 inches (2182 mm)
  • Maximum Width 23.62 inches (600 mm); Shipping Width 29.60 inches (752 mm)
  • Maximum Depth 42.13 inches (1070 mm); Shipping Depth 48.10 inches (1222 mm)
  • Net Depth with Stabilizing Feet 50.30 inches (1278 mm)
  • Shipping Weight 305.20 lbs. (138.72 kg)
  • Weight Capacity (static load) 3000.00 lbs. (1363.64 kg)
  • Weight Capacity (dynamic load) 2250.00 lbs (1022.73 kg)
  • Minimum Mounting Depth 7.52 inches (191 mm)
  • Maximum Mounting Depth 36.02 inches (915 mm)
  • Rack Height 42U
  • Color Black
  • Vertical Posts 16 gauge
  • Front Door 16 gauge ; Rear Door 18 ; Roof 18 gauge ; Side Panels 18 gauge
  • EIA Mounting Rails 14 gauge
  • EIA Mounting Rails 14 gauge
  • Regulatory Approvals UL 60950 ; Environmental Compliance RoHS
  • Standard Warranty 5 year repair or replace
  • Additional Info
