Product #
GL840N12-2442-SS-0000-SQM6
Catalog #
GL840N12-2442-SS-0000-SQM6
Weight
450.0 lbs.
Sale Price
Contact Us
Quantity

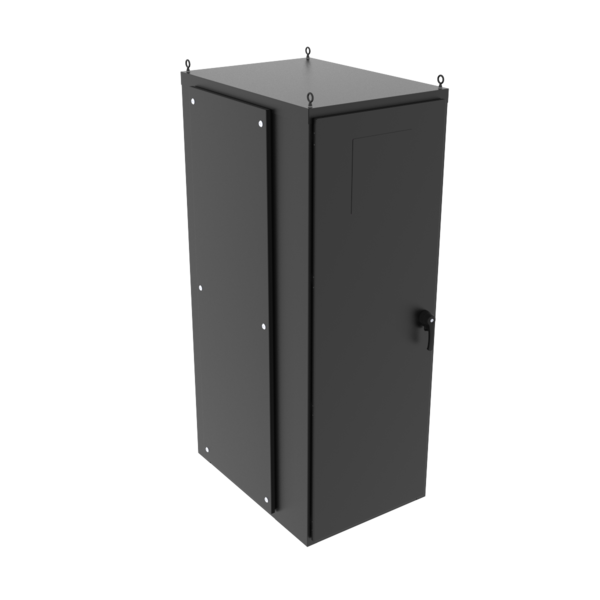

NEMA 12 Cabinet


Overview

PROTECT DATA IN HARSH INDOOR ENVIRONMENTS
• Depth adjustable mounting rails; choose 3/8″ sq. (M6) or tapped #10-32 (30″W cabinets feature Flexible Mounting Profile for zero-U accessory mounting)
• 30″W cabinets feature rails that can be set to 19″ or 23″ EIA mounting; no additional hardware or parts needed!
• Front intake and rear exhaust gland plates on doors for fan/filter assemblies

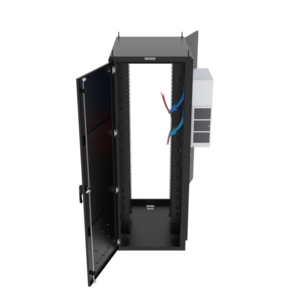

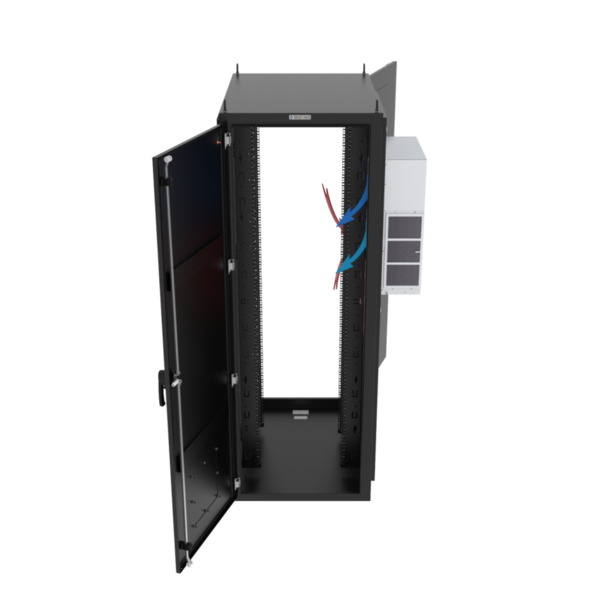

• Internal baffle kit facilitates airflow: conditioned air is directed to equipment intake while exhaust is returned to the AC unit for increased efficiency
• Vertical lacing bar with keyhole pattern for button mounting PDUs and obround pattern for cinch straps (one welded in each rear corner)
• Swing handle (with hasp option) and three-point latch maximizes compression between the door and cabinet
• Four top, lifting eye bolts
• Color: Black
• Standards: NEMA Type 250 12, UL508A, RoHS II


NEMA 12 Cabinet
SHARE





- 84″H x 24″W x 42″D
- 45 RMU
- 42″ Usable Depth
- 34″ Max. Rail Spacing
- 5000 lb. Weight Capacity
- Color: Black
