- Manufacturer
- Emerson
- Product #
- MPHB1212
- Catalog #
- MPHB1212
- Weight
- 9.0 lbs.
- Suggested Retail
- $599.00
- Sale Price
- Contact Us

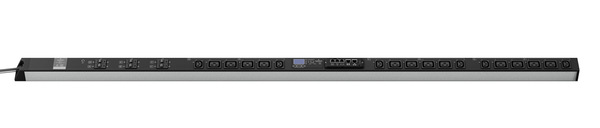

Emerson MPH2, Managed Rack PDU - MPHB1212
Overview
MPH2™ is the most intelligent, high-availability line of managed rack PDUs. It offers remote monitoring and
control capabilities as well as environmental input options, with multiple power input selections and
output configurations.
It is available in the following four versions:
- Outlet Level Metered and Switched.
- Outlet Level Metered.
- Rack PDU Metered and Outlet Switched.
- Rack PDU Metered.
MPH2™ Benefits
• Monitors electrical and environmental parameters with set threshold and alarm tools.
• Controls and manages individual receptacles and/or groups of loads and devices.
• Allows you to predict failing conditions before they occur and proactively manage connected equipment for maximum uptime.
• Energy and power metering to maximize the data center power and cooling infrastructure.
• Lowest power consumption of all switched rack PDU designs ensures lower operating costs for datacenter.
• Up to four MPH2™ rack PDUs may be interconnected as a Rack PDU Array™, consolidating user IP connections and device monitoring
Specifications:
Liebert MPHB1212 Monitored PDU:
Current: 30A
Voltage: 200 - 240V 1-ph
Input Plug: L6-30
Outlets: (30) C13 + (6) C19
Mounting: 0U Vertical
Specifications
Liebert MPHB1212 Specifications
Dimensions
68.4" (L) x 2.2" (W) x 2.0" (D)
Current (Amps)
30A
Voltage
200 - 240V 1-ph
Input Plug
L6-30
Outlet Receptacles
(30) C13 + (6) C19
Mounting
Preinstalled Toolless brackets, Universal Mounting bracket Ability to ship rack PDU preinstalled in Emerson Racks
Maximum Operating Temp.
0°C to 60°C
(32°F to 140°F)
Storage Temperature
-25°C to 85°C
(-13°F to 185°F)
Relative Humidity
5% to 95%
Overcurrent Protection
Software Electronic Overcurrent Protection
100% Rated 20A Branch Overcurrent Protection -
Hydraulic Magnetic Circuit Breakers
Idle Power Consumption
3W - 5W
Standard Warranty
2 Years;
Extended Warranties Available - Contact us for information
Agency Approvals
UL, CSA, CE, RoHS, REACH,
FCC Class A, CB, WEEE, ISTA
Metering Levels
Aggregate, Branch, Phase, Outlet
Parameters Measured
Volts, Current, kW, KVA, kWh, Power Factor, Crest Factor, Frequency
Metering Accuracy
+/-1%
Modularity
RPC2 communications module
Local Management

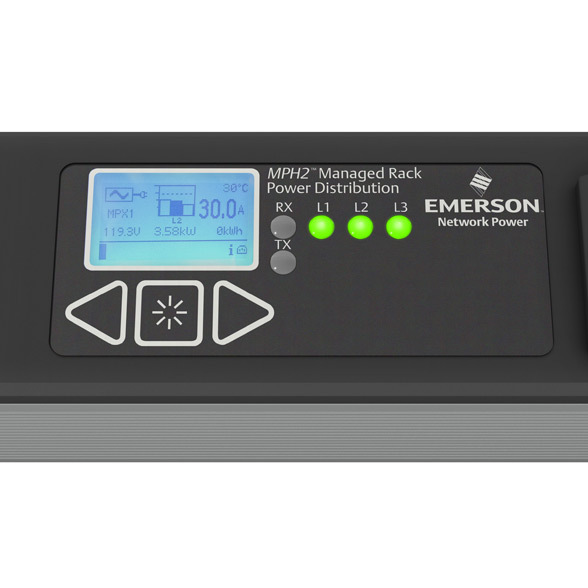

Onboard Display,
Optional Local Display
Remote Management
Onboard Web Interface; CLI; SNMP; SSH; Telnet
Integration with Avocent ACS, Avocent Universal Management Gateway & Avocent MergePoint Unity Integration with DSView. Rack Power Manager, Nform and the Trellis platform
SNMP version support
v1, v2 and v3
Authentication
Local
Remote: Active Directory, LDAP, TACACS,
Radius, Kerberos
Encryption
MD5, AES, DES
Additional Info
