Home > IT Equipment Lifters > Lift-4 Equipment Lifter
Product #
Lift-4 480
Catalog #
Lift-4 480
114.0 lbs.

Suggested Retail
$Please Call
Sale Price
Contact Us

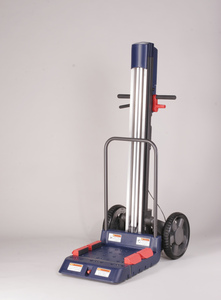

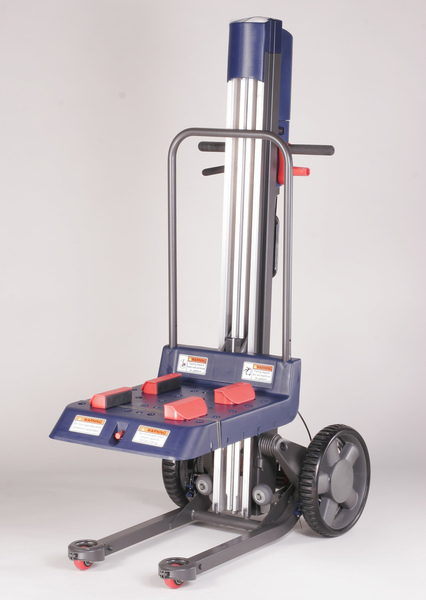

Lift-4 Model 480 IT Equipment Lifter Capacity 350 lbs. -Lift-4.480

• Raises to 48 in.
• Capacity: 350 lbs.


The Lift-4 is a Lifter/Transporter hand truck that can transport and lift up to 350 pounds. Ideal to move IT related equipment in Computer Rooms or Data Centers. The steel framed platform measures 18 inches wide by 18 inches long and can be extended 10 inches with the turn of a screw. The platform comes with adjustable work blocks for maximum flexibility.

The Lift-4’s , available in three models, 480, 600 and 720 , are powered electronically by a controlled screw drive column which lifts objects from 3½ inches up to 72 inches. Power is provided by a 12 volt DC, 15 amp-hour rechargeable ACM batteries. The battery can be recharged through any common 110 Volt AC outlet – adapter included with every Lift-4 Model. The rear wheels have locking disc brakes which allow you to secure the unit into place while loading and unloading material. The unit’s ability to safely fold allows for easy transportation via a car or delivery truck.

• Raise and lower IT Equipment for installation or removal from racks or tables
• Move equipment through aisles and lift heavy items for mounting in racks
• Assist workers with repetitive lifting and/or heavy payloads
• Get tool boxes and materials directly to work area and serve as work bench - ideal for customer engineer departments
• Lift Form Boxes for loading into printers
• Organize items on racking into delivery trucks
• Move tapes for off-site storage
• And much, much more

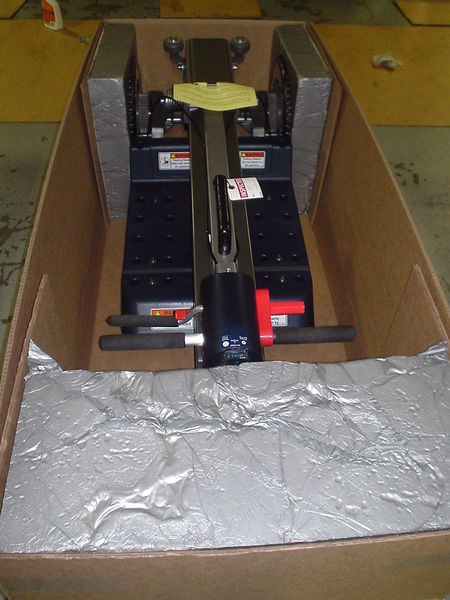

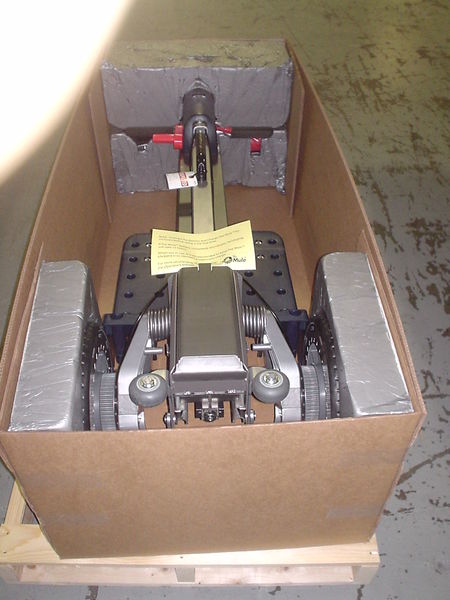

• Folds for easy storage and shipping
• Shippable via UPS - quick, easy and economical ( Lift-4.480)
• Conserves valuable storage space

• Hand Held Remote Control
• Four (4) platform mounting blocks
• Platform vice knobs
• 12V Recharging adapter
• Mounting tube

b> PLEASE NOTICE: Above price does not include freight, you will receive a confirming Quotation after you place your order with "Shipping Charges" which will require your approval to complete your order.Thank You.

For assistance on your project call Mainline Computer Products toll free at:
(800)-686-5312 or E-mail: Sales@MainlineComputer.com


  • Dimensions: 60" H x 21" W x 37" L
  • Lift Capacity: 350 lbs. 159 kg ( Overload indicator on rear panel )
  • Screw Driven - does not require adjusting
  • Height Range-3.5" to 48" ;
  • Lift Speed: 1-1/2 in per second with 100 lb load

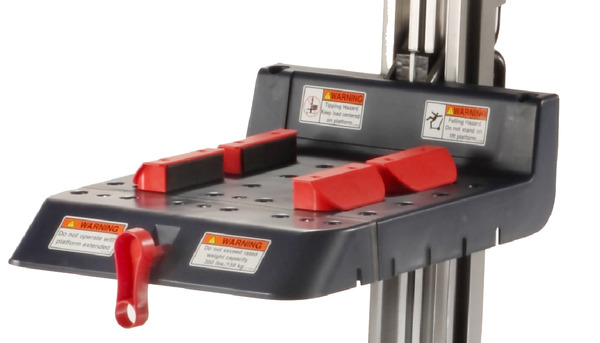

  • Platform: 18" W x 18" L, expands to 18" W x 28" L
  • Frame: Steel
  • Storage Dimension:Folds to 55" H x 20" W x 12" L
  • Battery:Rechargeable, Maintenance-free 12V silcone battery
  • Capacity: 125 - 150 lift cycles per charge
  • Recharging:110V input ( 12V output AC Adapter (included)_
  • 10" dual disk brakes on both rear wheels
  • Locking hand brake
  • Wheels:Two 13" rubber rear wheels; two 2 each 2-1/2" multidirectional front casters
  • Shipping Wt. 170 lbs.
  • Limited Warranty 12 months; Battery 3 months
  • Additional Info
    Lit-4- Extended Life Battery Charger
    Lit-4- Extended Life Battery Charger

    Lift-4 Maintenance Tune Up Kit #Lift-4-TUNEUP
    Lift-4 Maintenance Tune Up Kit #Lift-4-TUNEUP

    Warranty Info

    Limited Warranty: 12 months

    Limited Warranty:
    The Lift-4 product has a one (1) year warranty from the date of purchase against defects in workmanship or material unless otherwise noted. All batteries have a six (6) month warranty.

    Any part or component, except items covered by warranties of other manufacturers, returned to the factory or service center freight prepaid by the owner, found upon examination by the manufacturer to be defective or the result of improper workmanship by the factory will be repaired or replaced without charge and returned to the owner freight prepaid by Manufacturer..

    Alterations of this product void any warranty or liability on the part of Manufacturer. The Manufacturer does not guarantee product capacity if alterations are made.

    Note: Customer is required to return Warranty Card within thirty (30) days of purchase. If the manufacturer does not receive warranty card, the start date defaults to the day we ship the unit.
