- Manufacturer
- Liebert
- Product #
- DA080
- Catalog #
- DA080
- Weight
- 2200.0 lbs.
- Suggested Retail
- $Call
- Sale Price
- Contact Us

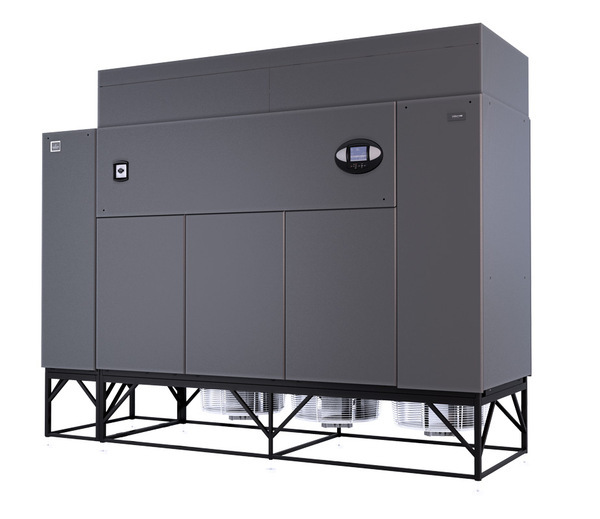

Liebert® DSE™ Precision Cooling System #DA080
Industry-best efficiency. Increased capacity. Ensured availability.
Overview
The Liebert DSE high-efficiency precision cooling system is designed from the ground up to help solve the problems that IT departments face every day. Offered in air-cooled models, the Liebert DSE high-efficiency precision cooling system ensures the availability and capacity that today’s IT climate demands while still cutting energy costs and lowering PUE.
This cooling solution is scalable, ensuring that the data center receives the right amount of cooling year-round, and also accommodating future growth and changing data center loads.
Specifications
Liebert® DSE™
Return Air 85°F
95°F DB, 67.7°F WB, 52.3°F DP
(35°C DB, 19.8°C WB) 24% RH 80 85 125 150
Total kW 88 100 146 170
Sensible kW 84 94 146 170
Compressor Mode: Net Full-load
PPUE/SCOP (kW/kW)
@ 95°F Oudoor Ambient 1.31/3.2 1.32/3.1 1.26/3.8 1.31/3.2
Pump Mode: Net Full-load
PPUE/SCOP (kW/kW)
@ 35°F Oudoor Ambient 1.10/10.5 1.10/10.1 1.06/17.5 1.08/13
85°F DB, 64.5°F WB, 52.3°F DP
(29.4°C DB, 18.1°C WB) 32% RH 80 85 125 150
Total kW 85 92 130 153
Sensible kW 77 83 130 153
Compressor Mode: Net Full-load
PPUE/SCOP (kW/kW)
@ 95°F Oudoor Ambient 1.33/3.0 1.37/2.7 1.29/3.4 1.34/2.9
Pump Mode: Net Full-load
PPUE/SCOP (kW/kW)
@ 35°F Oudoor Ambient 1.11/9.1 1.11/8.7 1.08/12.2 1.08/12
75°F DB, 61.1°F WB, 52.3°F DP
(23.9°C DB, 16.2°C WB) 45% RH 80 85 125 150
Total kW 75 86 116 134
Sensible kW 67 73 112 134
Compressor Mode: Net Full-load
PPUE/SCOP (kW/kW)
@ 95°F Oudoor Ambient 1.38/2.6 1.42/2.4 1.33/3 1.42/2.4
Pump Mode: Net Full-load
PPUE/SCOP (kW/kW)
@ 35°F Oudoor Ambient 1.13/7.5 1.14/7.2 1.09/10.7 1.10/10.2
DRY WEIGHT DIMENSIONAL DATA
Model Weight
lb (kg) Depth
in (mm) Width
in (mm) Height in (mm)
Base unit Plenum Total
DA080 2200 (998) 100 (2540) 35 (889) 76 (1930) N/A 76 (1930)
DA085 2250 (1021) 100 (2540) 35 (889) N/A 76 (1930)
DA125 3465 (1572) 47 (1194) 144 (3658) 18 (457) 94 (2388)
DA150 3565 (1617) 47 (1194) 144 (3658) 18 (457) 94 (2388)
Liebert EconoPhase™
Specs shown are DA125 with PR125
Liebert EconoPhase Performance - 80% Load
Outdoor
Ambient, °F Return Air DB, °F Cooling
Mode Net Sensible
capacity kW Total System Power kW SCOP pPUE*
70 85 Compressor 100.8 21.3 4.7 1.21
60 85 Mixed 100.8 17.1 5.9 1.17
50 85 Pump 100.8 9.7 10.4 1.10
25 85 Pump 100.8 5.2 19.5 1.05
*pPUE refers to “partial” Power Usage Effectiveness, or PUE for cooling only.
pPUE = (Sensible Capacity + Input Power) / Sensible Capacity
DIMENSIONAL DATA
Net Weight lb (kg) Dimensions (L x W x H) in (mm)
340 (154) 41 x 36 x 41 (1041 x 914 x 1041)
Additional Info
Datasheets:
