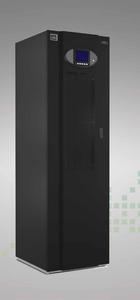

Liebert RDC Remote Distribution Cabinet


Overview

The influx of client/server rack equipment is changing the content of data centers. There are more devices than before, and they consume less power than their predecessors. Therefore most Power Distribution Units (PDUs) run out of circuit breaker poles before they run out of rated capacity

The Liebert RDC extends the functionality of the PDU by packaging 168 poles (four complete panelboards) in a stand-alone cabinet with the smallest possible footprint. Unlike standard Liebert Precision Power Centers (PPCs) and Liebert FPC, the Liebert RDC has no internal isolation transformer and requires 4-wire-plus-ground input from a Liebert PPC or other transformer.

By separating the Liebert PPC transformer and subfeed breakers from the panelboard function, Liebert was able to create an extremely compact package. It fits the area of a standard 24” raised-floor tile while permitting removal of adjacent floor tiles. This conserves precious floor space and allows maximum installation flexibility


Accessibility and Electrical Isolation
Despite the small size, the Liebert RDC has exceptional accessibility. It uses inline 42-pole panelboards (unique in the industry) with wide-open access channels. With six inches of access space, it’s easy
to add future circuits.

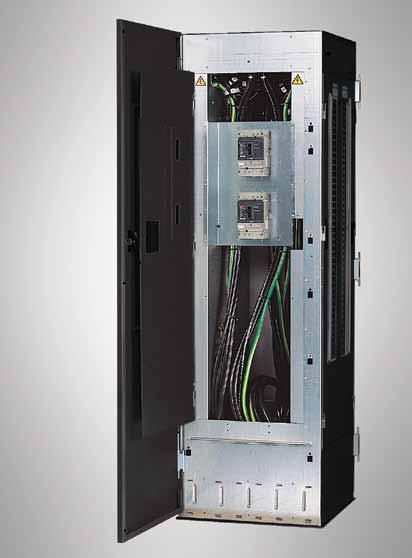

The four panelboards are separated into vertical compartments with individual hinged access covers.

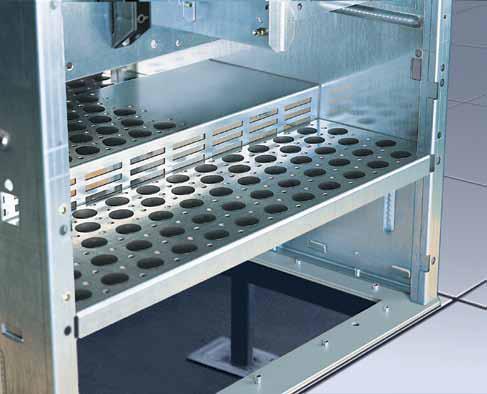

Another unique feature is the conduit-landing plate in the base of the unit.

It features a full 168 holes as standard. In addition, holes in the front row on each side have oversized spacing on center. These can be over-punched from 1/2” to 3/4” without interfering with adjacent holes.

Build to Suit
The Liebert RDC is available with several helpful options:

• Current Monitoring, Current Plus Monitoring.
• LDMF Distribution Monitor, with or without display.
• Clear door insert panels enable visual inspection of the breakers without unlocking the cabinet.
• Tie breakers are available to allow connection of the panelboards to different inputs.
• Adjustable accent panels make it easier to compensate for breaker “creep.”

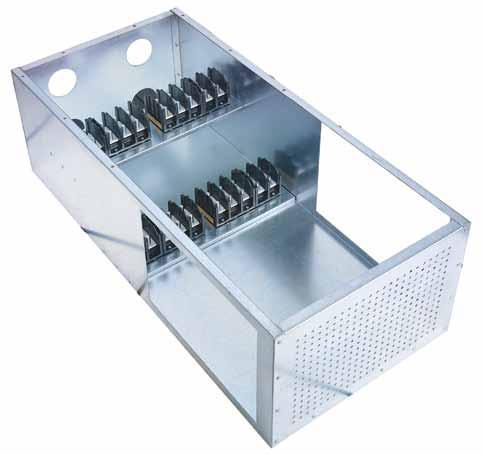

Note: Underfloor junction box, right, is standard for 4-input models and optional for others. Conduit-landing plate, pictured above, is positioned for easy cable access.
