- Product #
- MPH-NBV27AXXD30
- Catalog #
- MPH-NBV27AXXD30
- Weight
- 12.0 lbs.
- Sale Price
- $549.99

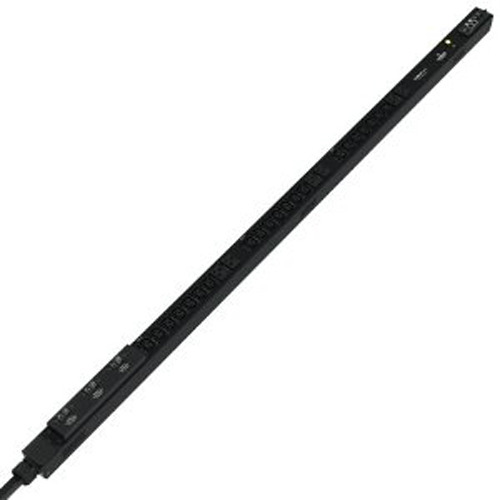

Liebert MPH Managed Rack Mount PDU-120V
(27) NEMA 5-15/20 outlets; 30 Amp rated; Locking NEMA L6-30P input.
Overview
The Liebert MPH MPH-NBV27AXXD30 is a Managed Rack PDU that provides local and remote monitoring of individual PDU volts, amps, watts, and kilowatt-hours. This rack PDU has (27) NEMA 5-15/20 outlets; 30 Amp rated; Locking NEMA L6-30P input.
All Liebert MPH systems are provided with factory integrated Liebert Rack PDU Card (RPC-1000) that provides web based remote monitoring via a direct IP network connection, Rack PDU Array interface connection to three additional Liebert MPH or Liebert MPX systems to allow viewing of up to four Rack PDU's on a single IP connection, an environmental sensor port, and a port for connection to the optional local display. Local display monitoring is provided via the optional Basic Display Module (Liebert RPC-BDM). Each Liebert MPH Unit is provided with basic rack mounting provisions to meet a range of installation needs
Liebert MPH-NBV27AXXD30 Features:
•Flexibility:
•Supports mounting in 19" EIA, 42U rack environments— vertical form factor.
•The display is easily located to suit a crowded and changing rack environment.
•Provides a compatible monitoring platform for Liebert MPH and Liebert MPX, offering seamless common operation if deployed together.
•Higher Availability
•Industry's highest standard operating temperature (131F, 55C)ensures operation under high heat density conditions.
•Predicts overcurrent conditions before they become critical.
•Allows user to shut down non-essential equipment during power outages to maximize availability and back-up power.
•Expanded branch overload protection minimizes threat of cascading PDU overload.
•Provides metering accuracy to +/-1%, improving operational oversite and user management of connected loads.
•Optional temperature and humidity sensors allow oversight of environmental conditions.
•Lowest Total Cost of Ownership
•Provides full featured monitoring in a cost effective package.
•A Rack PDU Array shares a single IP address for up to four Rack PDUs, making deployment faster and easier.
•Energy and power metering provides users the information to maximize the data center power and cooling infrastructure.
Specifications
Mechanical
Height 68.1 in. (1730 mm.)
Width 1.9 in. (50 mm.)
Depth 3.1 in. (80 mm.)
Environmental
Operating Temperature 32°F ─ 131°F (0°C ─ 55°C) for altitudes 10,000 ft (3000 meters) above sea level.
Storage Temperature -4°F ─ 140°F (-20°C ─ 60°C)
Relative Humidity 0 ─ 95% non-condensing, non-corrosive
Altitude 10,000 m (3,000 m max.), without power derating when operated within the temperature specified in section 1.4.A. Ambient temperature will be derated 5°C for each additional 500 m (1640 ft.)
Electrostatic Discharge Able to withstand an electrostatic discharge compliant to EN61000-4-2, level 3, Criteria A , without damage and without affecting the connected load.
Input
Voltage 120
Rated Amps 30
Max. Continuous Amps 24
kW* 2.8
Phase 1
Input Power Cord Length 10 ft.
Plug NEMA L5-30
Output
(27) NEMA 5-20R T-Slot
Form Factor Vertical
Standards UL 60950-1 Information Technology Equipment CAN/CSA-C22.2 No. 60950-1-03 Information Technology Equipment FCC, Title 47, Part 15 Subpart B for Class B operation as defined by ANSI Standard C63.4 ROHS Compliant ISTA Procedure 1A and 2A
Additional Info
Warranty Info
Warranty 2 Years
