Home > Critical Power Systems > Liebert > Liebert® GXT5™ On-Line UPS, 500-10,000VA
Manufacturer
Liebert
Product #
GXT5-10000RT208
Catalog #
GXT5-10000RT208
Weight
167.0 lbs.

Suggested Retail
$9,800.00
Sale Price
Contact Us
Quantity

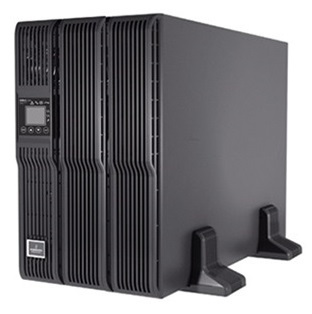

Liebert GXT5-10000RT208 UPS

* Power Rating - 9000W / 10000VA


Overview

Liebert GXT5-10000RT208 UPS is one of the most advanced battery backup solutions available on the market. Double conversion eliminates all power quality issues without any fluctuation in voltage, while automatic and manual power bypass assures continuity of power to critical loads during system maintenance or in case of an internal fault. Intelligent monitoring, reporting, communication, and controllable outlet groups make remote and local power management easy. Up to six external battery cabinets can be added for extended run time and an ECO mode option allows improved energy efficiency. Mounting is flexible with rack rails and tower supports included.

Power Rating - 9000W / 10000VA
Output AC - Hardwire Terminal Block* (120/208VAC)
Input AC - Hardwire Terminal Block* (120/208VAC)

*Power Output Distribution (POD) boxes available with different input/output options for hardwired GXT4 UPS's.

Specifications

  • Liebert GXT5-10000RT208 UPS Specifications:
  • Mechanical
  • Height 10.3"
  • Width 16.9"
  • Depth 26.5"
  • Weight, lb (kg) 212.7 (96.7)
  • Input AC
  • Nominal Operating Frequency 50 or 60Hz (Factory Default is 60Hz)
  • Factory Default VAC 120/208VAC at 120 degrees
  • Factory Default L1-N, L2-N VAC 120 VAC nominal
  • Input Frequency w/o Battery Operation 40 - 70 Hz
  • Input Power Connection Hardwire Terminal Block 3W + G (L-L-N-G)
  • L1-N, L2-N Maximum Allowable VAC 150VAC
  • Output AC
  • Power Rating 9000 W / 10 kVA
  • Factory Default VAC 120/208VAC @ 120 degrees
  • Factory Default L1-N, L2-N VAC 120VAC nominal
  • User Configurable L1-N, L2-N VAC 100/110/115/120/VAC, ±2%
  • Overload Rating
  • 105% to 130% 1 Minute
  • 131% to 150% 10 seconds
  • 151% to 200% 1 second
  • >200% (impact load) At least 5 cycles
  • Environmental
  • Operating Temp, °F (°C) 32 to 104 (0 to 40)
  • Operating Temp, °F (°C) 5 to 122 (-15 to 50)
  • Audible Noise Less than 55dBA at 3.2ft. (1m) rear; less than 50dBA at 3.2ft. (1m) front and sides
  • Operating Elevation Up to 10,000 ft. (3000m) at 77°F (25°C) without derating
  • Relative Humidity 0% to 95%, non-condensing
  • Agency
  • Safety UL 1778, c-UL Listed
  • RFI/EMI FCC Class A
  • Surge Immunity IEEE/ANSI C62.41 Category A & B
  • Transportation ISTA Procedure 1E
  • ENERGY STAR qualifed YES
  • Internal Battery Specifications
  • Model Number GXT4-288VBATKIT
  • Dimensions, W x D x H, Unit in (mm) 8.1 x 19.7 x 5.3 (207 x 500 x 135)
  • Weight, Unit lb (kg) 71.1 (32.3)
  • Battery Parameters
  • Type Valve-regulated, non-spillable, flame retardant, lead acid
  • Kit Quantity x Battery Quantity x V x Rating 2 x 12 x 12V x 9.0 AH
  • Recharge Time 3 hours to 90% capacity after full discharge into 100% load
  • External Battery Specifications
  • Model Number GXT4-288VBATT
  • Dimensions, W x D x H, Unit (with bezel) in. (mm) 16.9 x 26.5 x 6.8 (430 x 672 x 173)
  • Weight, Unit lb (kg) 167.6 (76.2)
  • Battery Parameters
  • Type Valve-regulated, non-spillable, lead acid
  • Kit Quantity x Battery Quantity x Rating 2 x 12 x 12V x 9.0 AH
  • Environmental Operating Temp, Storage Temp, Operating Elevation, and Relative Humidity: Same as UPS
  • Additional Info
    Datasheets:
    Accessories
    Battery Kit for GXT5-8000RT/208-10000RT208
    Battery Kit for GXT5-8000RT/208-10000RT208
    Hot Swappable Battery Kit

    Quantity
    Warranty Info
