- Manufacturer
- Liebert
- Product #
- CR020RW
- Catalog #
- CR020RW
- Weight
- 350.0 lbs.
- Suggested Retail
- $0.00
- Sale Price
- Contact Us

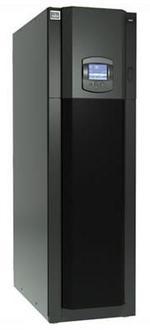

Liebert CRV In Row Cooling-Water/Glycol Cooled-(20kW)
The Liebert CRV installs at the ends or within the row of cabinets on non-raised or raised floors. Cooling Capacity [kW]: 23.1
Overview
The Liebert CRV installs within a row of data center equipment racks, providing precision cooling close to the server heat source for the most efficient and effective cooling. Available in capacities from 20kW to 40kW.
Flexibility:
- Horizontal airflow cooling design is suitable for non-raised or raised floors
- Air, water, glycol, and chilled water systems available.
- Adjustable airflow baffles maximize cooling to rack equipment, and allow the system to be positioned within the row or the end of the row. Casters mounted for easy placement.
Availability:
- Digital scroll compressor is both reliable and energy efficient. System provides complete environmental control - cooling, humidity control and air filtration. Lowest Total Cost of Ownership
- Compact cabinet with high cooling capacity minimizes floor space requirements.
- Easy to install and maintain - only front and back access required.
- Digital scroll compressor and variable speed EC fans operate efficiently and provide a long service life.
Ideally Suited For:
- Rows of racks in hot aisle / cold aisle configuration
- Rack equipment requiring high density or spot cooling
Standard Features and Options:
- Crankcase heater
- Locking disconnect
- EC Plug Fans
- R410A
- Adjustable modular baffle system
- Simultaneous top and bottom connections
- Units provided with castors and levelling feet
- G4 (EU4) gravimetric & clog filter switch
- Steam Humidifier
- Electric reheat 1-stage
- CW 3-way valve
- Dual-float condensate pump
- (3) Remote Rack Sensors
- iCOM Large Graphic Display
- (1) Web Monitoring Card
Additional Options:
- Other iCOM display
- Additional Remote Rack Sensors
- Smoke Sensor
- CW 2-way valve
- Additional alarm contact
- Reheat and Humidity Lockout
- High Temperature Stat
- Compressor Jacket
- F4 (EU5) gravimetric & clog filter switch
- 485 Monitoring Card
Note: The performances shown are refering to Nominal conditions, i.e. Air inlet Tempeture 37°C, Condensing temperature for Air and Water/Glycol cooled units 45°C, Chilled Water temperature 10/15°C.
For assistance call us toll free at: (800)-686-5312 or E-mail: Sales@MainlineComputer.com
Request For Quote:
Specifications
Nominal Net Cooling Capacity [kW]: 23.1
Power input [kW]: 6.1
Nominal Air Flow m3/h: 4170
Height x Width x Depth [mm] 2000 x 600 x 1175
