Home > Technical Products > PDU-Rack Power Distribution > Geist
Manufacturer
Geist
Product #
BRF100-10
Catalog #
BRF100-10
Weight
7.0 lbs.

Suggested Retail
$129.00
Sale Price
$75.68
Quantity

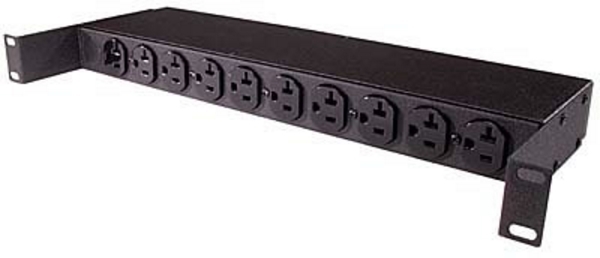

Geist BRF100-10

10 outlets on rear (5 duplexes), with recessed housing


Overview

Geist Manufacturing's base BRF100-10 rack-mountable power distribution unit is ideal for use in data-center, industrial and laboratory environments. This 15 amp breaker unit, contains 10 outlets on the rear (5 duplexes), a standard 10' power cord, LED power-on indicator and power switch.

Geist #BRF100-10 Power Strip 15A with NEMA 5-15P plug and (10) NEMA 5-15R:

The BRF100-10 functions as a basic power strip without built-in surge protection. This unit is ideal for installations in facilities with proper surge protection at the main electrical service entrance.

Features: 19 in. horizontal rack mount PDU 15A , rated for 120V with 10 x NEMA 5-15 outlets, 10 foot NEMA 5-15 power cord
Includes LED power on indicator and power switch, 5 duplex 15A receptacles on front.

Options: 15 foot power cord length, digital current meter (local, non-scrolling) or digital power meter (amps, volts, watts, power factor).

Applications: rack mount power distribution for offices, servers, IT, and networking environments.

Quantity Of Inputs 1
Voltage 120V
Current 15A
VA per Input (Load Capacity) 1.4kW
Frequency 50/60 Hz
Over Current Protection 15A Thermal Breaker
Switch Yes
Indicators - LED(s) 1 - Power ON Green LED
Power Cable Wire Gauge 14/3
Power Cable Length 10ft
Plug Type NEMA 5-15P
Receptacle/Socket Type #1 NEMA 5-15R
Quantity on Face #1 10
Quantity per Breaker #1 10
Style #1 Duplex
Maximum Output per Receptacle/Socket #1 15A
Voltage per Receptacle/Socket #1 120V
Continuous Operating Temperature Range 10-45C / 50-113F
Heavy Steel - Powder Coat Finish Black
Configuration 19 in / 435 mm Horizontal Rackmount
Adjustable Mount Brackets Yes
Made in the USA Yes
Certification/Agency Approvals RoHS Compliant
Certification/Agency Approvals UL & c-UL Listed 60950
Chassis Dimensions (HxWxD) 1.72in x 17in x 4.50in
Shipped Weight 6lbs (2.72kg)

Specifications

  • AC Rating Volts 125
  • AC Rating Amps 15
  • Cord Length 10'
  • Receptacles on Rear 10
  • Maximum Output per Receptacle 15A
  • Configuration 19" Horizontal Rackmount
  • Additional Info
