- Manufacturer
- APC
- Product #
- SYH2K6RMT-P1
- Catalog #
- SYH2K6RMT-P1
- Weight
- 259.0 lbs.
- Suggested Retail
- $3,500.00
- Sale Price
- Contact Us

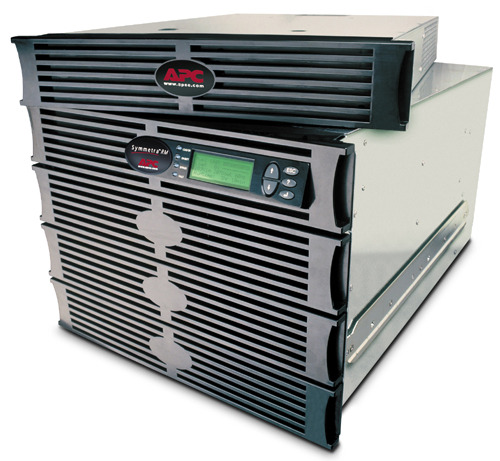

APC Symmetra RM 2kVA Scalable to 6kVA N+1 208/240V w/208 to 120V Step-Down Transformer
1400 Watts / 2000 VA, Input 208V / Output 120V, 208V ,
Overview
APC Symmetra, 1400 Watts / 2000 VA, Input 208V / Output 120V, 208V , Interface Port DB-9 RS-232, RJ-45 10/100 Base-T, SmartSlot , Extended runtime model , Rack Height 10 U
Includes: CD with software, Rack Mounting brackets, Rack Mounting support rails
Specifications
Output Power Capacity 1400 Watts / 2000 VA
Max Configurable Power 4200 Watts / 6000 VA
Nominal Output Voltage 120V, 208V
Output Voltage Note Configurable for 208 or 240 nominal output voltage
Efficiency at Full Load 85.0%
Output Voltage Distortion Less than 5% at full load
Output Frequency (sync to mains) 57 - 63 Hz for 60 Hz nominal
Crest Factor up to 5 : 1
Topology Double Conversion
Online Waveform Type: Sine wave
Output Connections :(12) NEMA 5-20R (2) NEMA L6-20R
Bypass Internal: Bypass (Automatic and Manual)
Input:
-------
Nominal Input Voltage 208V
Input Frequency 50/60 Hz +/- 5 Hz (auto sensing)
Input Connections Hard Wire 3-wire (2PH + G)
NEMA L6-30P (30A Twist-Lock)
Cord Length 6 feet (1.83 meters)
Input voltage range for main operations 155 - 276V
Batteries & Runtime
----------------------------
Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof Included Battery Modules 1
Available Battery Slots 4
Typical recharge time 4 hour(s)
Replacement Battery: SYBT2
Replacement battery cartridge note: UPS accepts 1-4 additional battery packs
Extended Run Options:
- APC Symmetra RM 2kVA Scalable to 6kVA N+1 208/240V w/208 to 120V Step-Down Transformer
