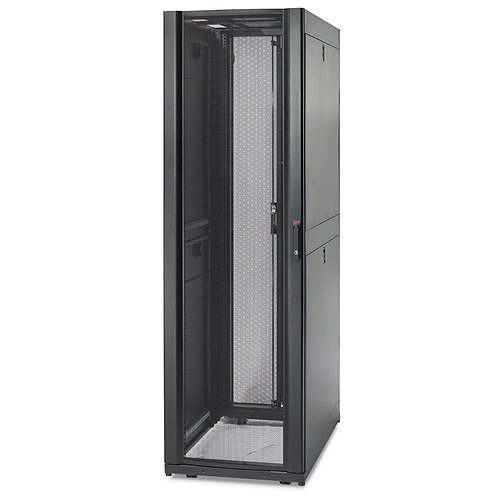

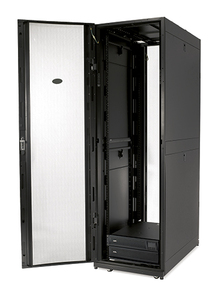

APC NetShelter SX 45u #AR3105

600mm Wide x 1070mm Deep Enclosure with Sides Black


Overview

Feature-rich enclosures optimized for easy installation, managing cables, integrating power distribution, and maximizing airflow.

AR3105 Features:

- Guaranteed Compatability

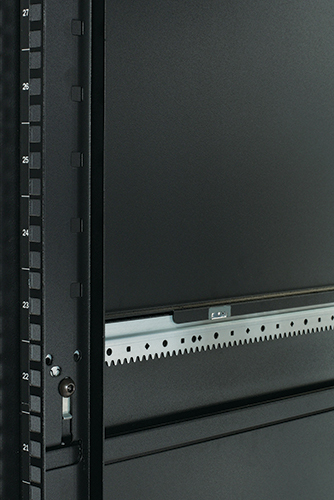

Vendor-neutral mounting for guaranteed compatibility with all EIA-310 compliant 19" equipment. The APC "Fits Like a Glove" money back guarantee provides peace of mind that all of your EIA-310-E compliant rack-mount equipment will physically fit in a NetShelter enclosure

- Facilitates overhead cable management
Overhead cable troughs and partitions install toollessly on the roof of the enclosure eliminating the need for ceiling mounted or underfloor mounted cable trays. Cable troughs and partitions are designed to manage both power and data cables while maintaining separation.

NetShelter SX Features & Benefits

CONVENIENCE

- Cable Access

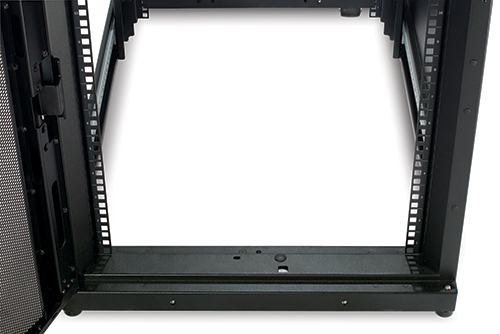

Large cable access slots in the roof provides access for overhead cable egress. The bottom design allows for unobstructed cable access through a raised floor.

- Simple Selection
No need to spend hours choosing from and compiling dozens of part numbers to create a single enclosure. APC has made it easy by handling the details and providing complete enclosures with single part numbers

- Ventilated

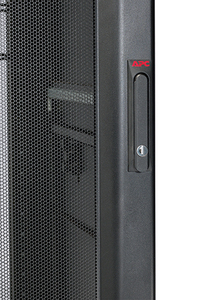

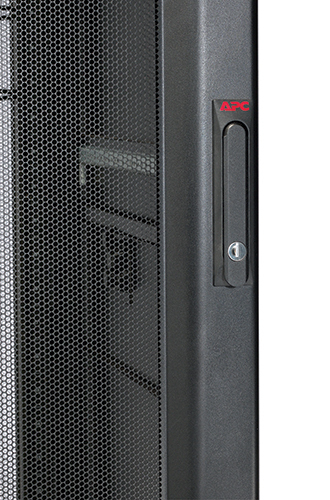

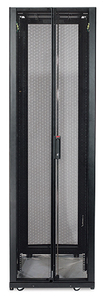

Perforated front and rear doors provide ample ventilation for rack-mount equipment

- Quick release doors

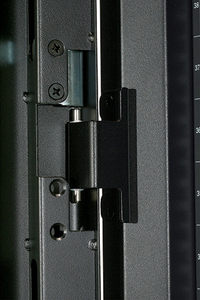

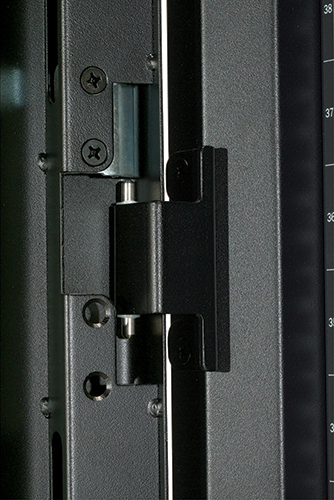

Front door can be moved to the opposite side or interchanged with rear doors. Doors are easily removed with simple lift-off design.

- Half-height side panels

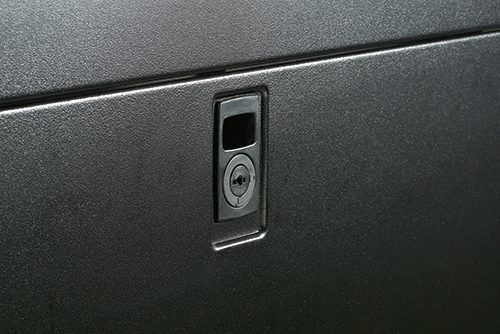

Half-height quick release side panels reduce size and weight for easy handling and access to equipment. Side panels are lockable utilizing a single key with the doors.




Includes:
Baying hardware, Key(s), Keyed-alike doors and side panels, Leveling feet, Mounting Hardware, Pre-installed casters, Side Panels, User Manual
Standard Lead Time: Usually in Stock

Specifications

  • Net Weight 301.40 lbs. (137.00 kg)
  • Maximum Height 83.62 inches (2124 mm)
  • Maximum Width 23.62 inches (600 mm)
  • Maximum Depth 42.13 inches (1070 mm)
  • Shipping Weight 338.14 lbs. (153.70 kg)
  • Shipping Height 88.19 inches (2240 mm)
  • Shipping Width 29.37 inches (746 mm)
  • Shipping Depth 48.03 inches (1220 mm)
  • Weight Capacity (static load) 3000.00 lbs. (1363.64 kg)
  • Weight Capacity (dynamic load) 2250.00 lbs. (1022.73 kg)
  • Minimum Mounting Depth 7.52 inches (191 mm)
  • Maximum Mounting Depth 36.02 inches (915 mm)
  • Rack Height 45U
  • Rack Width 19"
  • Color Black
  • Units per Pallet 1.00
  • Vertical Posts 16 gauge
  • Front Door 16 gauge
  • Rear Door 18 gauge
  • Roof 18 gauge
  • EIA Mounting Rails 14 gauge
  • Side Panels 18 gauge

    • Additional Info
    Accessories
    Warranty Info

    - Regulatory Approvals UL 60950-1
    - Standard Warranty 5 year repair or replace
    - Standards EIA-310-E
    - Environmental Compliance RoHS,REACH: Contains No SVHCs
