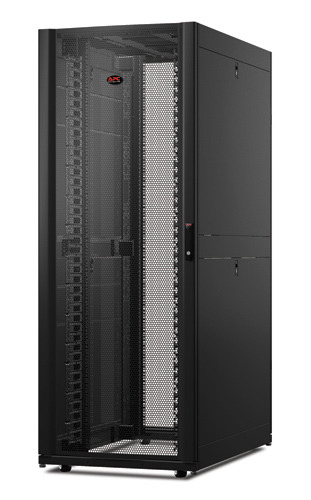

APC NetShelter SX Networking Enclosure 42u #AR3340

Side Airflow Solution for Cisco Nexus 7018


Overview

NetShelter SX Networking Enclosure expands APC's superior IT enclosure line with improved support for high density networking applications. Integrated high density cable managers and improved cable access roof provide support for large cable bundles. When combined with the Side Airflow Duct Kit, the Networking Enclosure ensures complete isolation of cold intake and hot exhaust air for large switches and SAN directors.

Includes: Baying hardware, Documentation CD, Key(s), Keyed-alike doors and side panels, Leveling feet, Mounting Hardware, Pre-installed casters, Side Panels, User Manual, Vertical cable managers

Standard Lead Time: Usually in Stock

Specifications

  • Net Weight 355.00 lbs. (161.36 kg)
  • Maximum Height 78.39 inches (1991 mm)
  • Maximum Width 29.53 inches (750 mm)
  • Maximum Depth 47.24 inches (1200 mm)
  • Shipping Weight 403.00 lbs. (183.18 kg)
  • Shipping Height 83.39 inches (2118 mm)
  • Shipping Width 33.50 inches (850 mm)
  • Shipping Depth 52.00 inches (1320 mm)
  • Weight Capacity (static load) 3000.00 lbs. (1363.64 kg)
  • Weight Capacity (dynamic load) 2250.00 lbs. (1022.73 kg)
  • Minimum Mounting Depth 11.00 inches (279 mm)
  • Maximum Mounting Depth 37.75 inches (959 mm)
  • Rack Height 42U
  • Color Black
  • Units per Pallet 1.00
  • Vertical Posts 16 gauge
  • Front Door 16 gauge
  • Rear Door 16 gauge
  • Roof 18 gauge
  • EIA Mounting Rails 14 gauge
  • Side Panels 18 gauge

    • Additional Info
    Accessories
    Warranty Info

    Conformance
    Regulatory Approvals UL 60950-1
    Standard Warranty 5 year repair or replace
    Standards EIA-310-E
    Environmental Compliance RoHS
