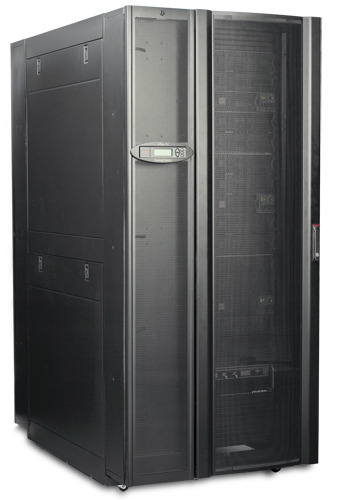

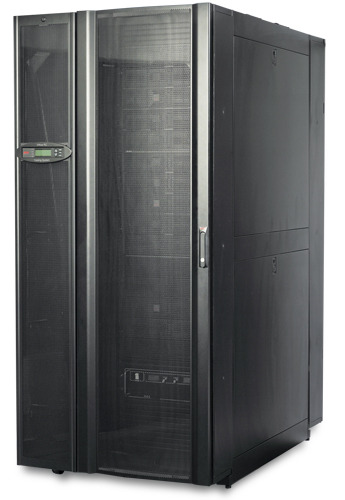

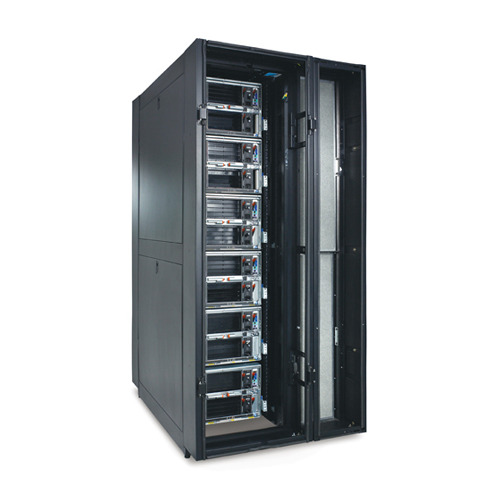

APC InRow SC System - Direct Expansion #RACSC201

Air-cooled Self-contained ~ Cooling Capacity 13 kW


Overview

The APC InRow SC RACSC201 System is 2 InRow SC units, 1 NetShelter SX Rack 600mm, and Rear Containment which is a rapidly deployable, self-contained row-based cooling solutions for server rooms and wiring closets.

InRow SC Systems offer flexible, easily deployable solutions for almost any environment. These fully contained systems offer intelligence that enables network manageability, as well as self-monitoring components that enable the highest level of availability. The row-based cooling architecture, along with containment of airflow, further increases the predictability, efficiency, and capacity of the system.


Includes:

•(1) NetShelter SX 42U 600mm Wide x 1070mm Deep Enclosure
•(2) InRow SC 200-240V 60HZ
•(1) APC Rack Air Containment End Caps
•(2) APC Rack Air Containment Rear Assembly for InRow 300 mm
•(1) APC Rack Air Containment Rear Assembly for NetShelter SX 42U and InRow 600mm
•Installation guide

NOTE: Special Order - Call for Quoted Lead Times

Specifications

  • Compressor Type: Rotary
  • Air Discharge Patterns: Horizontal
  • Intake Air: Rear Return
  • Refrigerant Charge: 3 pounds (1.00 kg
  • Air Flow: 1200.0 CFM (566.34 lps)
  • Amp Draw In-Rush: 56A
  • Condensate Pump Capacity:1.300 gal/hour (0.000 lps
  • Nominal Input Voltage 200,208,220,230
  • Input Power 2940 Watts; Input Frequency 60 Hz; Rack Height 42U
  • Input Connections NEMA L6-20P
  • Control panel Multi-function LCD status and control console
  • Maximum Height 78.40 inches (1991 mm)
  • Maximum Width 47.24 inches (1200 mm)
  • Maximum Depth 50.13 inches (1273 mm)
  • Audible noise at 1 meter from surface of unit 80.00 dBA of Unit
  • Coolant R410A
  • Entering Air Temperature 96.0 °F (35.56 °C)
  • Standard Warranty 1 year (parts only)

    • Additional Info
    Accessories
    Warranty Info

    Standard Warranty 1 year (parts only)
