Product #
AP8841
Catalog #
AP8841
Weight
19.0 lbs.
Sale Price
$599.00
Quantity

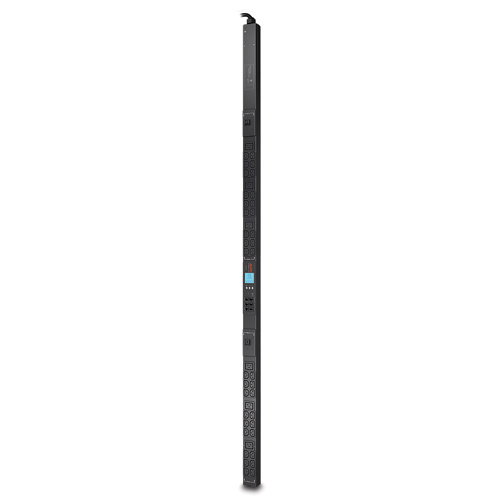

APC Metered Rack PDU 30A, 200/208V #AP8841

30A, 200/208V, (36) C13 & (6) C19


Overview

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Includes: Installation guide, Rack Mounting brackets, Safety guide, Serial configuration cable

Standard Lead Time: Usually in Stock

Specifications

  • Output
  • Nominal Output Voltage 200V, 208V
  • Maximum Total Current Draw per Phase 24A
  • Output Connections
  • (36) IEC 320 C13 IEC 320 C13
  • (6) IEC 320 C19 IEC 320 C19
  • Overload Protection Yes
  • Input
  • Nominal Input Voltage 200V, 208V, 230V
  • Input Frequency 50/60 Hz
  • Regulatory Derated Input Current (North America) 24A
  • Input Connections
  • NEMA L6-30P NEMA L6-30P
  • Cord Length 9.84 feet (3 meters)
  • Number of Power Cords 1
  • Acceptable Input Voltage 200-240 VAC
  • Maximum Input Current per phase 30A
  • Physical
  • Net Weight 15.04 lbs. (6.84 kg)
  • Maximum Height 70.50 inches (1791 mm)
  • Maximum Width 2.20 inches (56 mm)
  • Maximum Depth 1.72 inches (44 mm)
  • Shipping Weight 18.64 lbs. (8.47 kg)
  • Shipping Height 78.75 inches (2000 mm)
  • Shipping Width 6.38 inches (162 mm)
  • Shipping Depth 4.20 inches (107 mm)
  • Color Black
  • Units per Pallet 48.00
  • Environmental
  • Operating Environment 23 - 113 °F (-5 - 45 °C)
  • Operating Relative Humidity 5 - 95%
  • Operating Elevation 0-10000 feet (0-3000 meters)
  • Storage Temperature -13 - 149 °F (-25 - 65 °C)
  • Storage Relative Humidity 5 - 95%
  • Storage Elevation 0-50000 feet (0-15000 meters)
  • Conformance
  • Approvals CSA C22.2 No. 60950, IEC 60950, METI Denan, UL 60950-1, VDE
  • Standard warranty 2 years repair or replace

    • Additional Info
    Accessories
    Warranty Info

    Two Year
