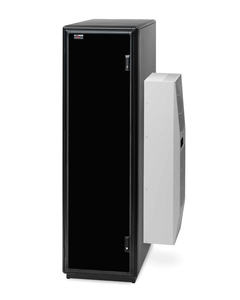

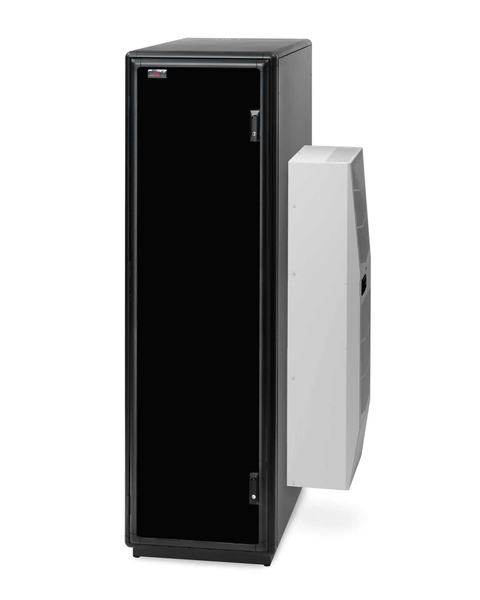

42U A/C Enclosure -12,000 BTU/h

• 115V or 230V
• Earth Friendly Refrigerant



Overview

Advanced air conditioned enclosures are specifically designed to completely control internal temperature. Air conditioned enclosures are generally for locations that do not have room air-conditioning or constant air-conditioning.

These may be located on a production floor, in a closet, or in an office where the air-conditioning gets turned off on the weekends.The Air Conditioned enclosures have an internal closed loop cooling system and the air that is used to cool the condensers is the ambient room air and is exhausted back into the room unless special ducting is set up to exhaust the hot air out of the room.

FEATURES
• Side-mounted 12,000 BTU AC Unit (115v or 230v)
Note: Please specify at time of order. Side Mounted Air Conditioners are shipped separately

• Earth Friendly Refrigerant

• Mechanical Thermostat located on side of AC unit of Side Mount AC

• LED Temperature Display on Front Door Displaying in ‘F’ Degrees (‘C’ Degrees available on special order)

• Optional Ducting Boot Kits available.

• Cleanable, reusable aluminum mesh filter

• Includes Malfunction Switch for use with a variety of customer provided alarms

• Every unit tested prior to shipping

• Textured powder coat finish • Multiple color options

• Fully sealed enclosure assembly; closed loop air conditioned cooling.

• Square hole mounting rails on standard EIA 310rackmount pattern for M6 cage nuts Patented Aluminum extruded 6063-T5 welded frame with steel doors and panels.

• US patent # 6,179,398

OPTIONS:
• Smoked Lexan® or solid doors
• Heavy-duty casters available
• Power Distribution Units

FRAME INCLUDES
• Patented high-performance aluminum extruded welded frame rated at 1,200 LBS with casters, 2,500 LBS without casters
• Air conditioner with malfunction switch and temperature display
• Base, casters, levelers, and 3 sets of EIA 310D standard “L” shaped square hole, M6 vertical mounting rails

81" H x 24"W ( 36" with ACU) x 45.5"D

For more information call (800)-686-5312 or email: Sales@MainlineComputer.com

A/C Cooling:




NOTICE: Enclosure must be bolted to floor prior to mounting AC Unit to avoid Risk of Tipping Over

Specifications

  • Overall Size: 81" H x 24"W ( 36" with ACU) x 45.5"D
  • • Aluminum Extruded Welded Frame
  • • Base
  • • Casters (4) & Leg Levelers
  • • Three (3) Pair “L” Shaped Adjustable Reducer Rails to create a 19” Rack Mounting
  • • M6-40 Hardware Pack
  • • Lexan Door w/Aluminum Extruded Frame, Smoked Gray, (2) Lockable Handles,
  • • Solid Steel Rear Door w/ (2) Lockable Swing Handles
  • • Side Panels Externally Removable-One side Modified for AC Unit
  • • 12,000 Side –Mount A/C Unit-115V, Manuals, w/Malfunction Switch
  • • Temperature Indicator -120Vm Remote Sensor w/3’ Lead, Temp Display “F”,
  • • Solid Top Panel
  • • Solid Bottom Panel with Cable Access Door
  • • Floor Mount Bracket for 42” Deep Cabinets, mounts to side base & floor w or w/o casters
  • Note: Customer required to furnish anchoring hardware to fix enclosure to floor
  • • Gasket-AC-Complete sealing of front & rear Doors and top and side panels using closed cell foam.
