Overview

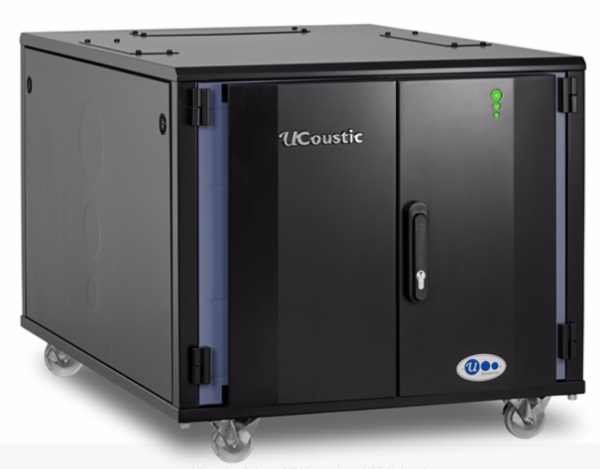

UCoustic™ 9210 Range of 19" Soundproof Rackmount Cabinets with Thermostatic Cooling

The UCoustic™ 9210 series soundproof rack is made in the UK by USystems, Ltd., an experienced manufacturer in noise reduction across many industries. US Rack Distributors is the U.S. distributor of this immensely popular European rack.

This premium range of quiet rack enclosures provides the ultimate combination of noise reduction and air cooled thermal performance. The 9210 range is a viable alternative to a costly dedicated comms room, by allowing the deployment of servers and network equipment directly in the office environment.

This range of quiet rack cabinets will reduce equipment noise to a level below that of background noise in an average office without talking, whilst providing a thermal load capacity of up to 7.2 kW (equivalent to 37 single processor servers and peripherals).

Being thermostatically controlled, the rear fan blowers maintain sufficient airflow throughout the rack cabinet, providing the required level of thermal dissipation, whilst optimising the level of 'ambient' background noise the cabinet itself generates and minimising power expenditure.

Also, the spacious internal dimensions provide ample room for orderly cable routing throughout the 9210 cabinet, with varied cable entry options to the bottom of the enclosure.

The inclusion of a washable dust-filter, promoting extended equipment life-span and reduced maintenance costs, is optional throughout the 9210 range.

Quiet Server Rack Features>

Both Active and Passive UCoustic™ soundproof server cabinets include:

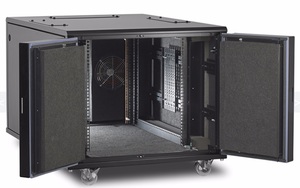

•Key locked front and rear doors, removable for easy access
•Two sets of 19" rackmount, square hole vertical rack rails.
•Cable entry via base of cabinet. Includes foam block to prevent noise from escaping
•Casters
•Removable side panels for easy access
•Heavy duty steel construction
•Delivered fully assembled and ready to go
•Compatible with all leading server brands, including blade servers

Active Ucoustic Cabinets have additional:
•Two built in fans in rear door
•Variable fan speed controller and temperature sensor



Ships fully assembled, start racking!

Cabinet Color: Black with Montana Blue trim

Notice: Fans are 115V and not 220/240V fans. 220/240V power will damage the fans. 220/240V cabinets can be special ordered. Contact Sales@MainlineComputer.com
