Product Description
Note: Please select the required Air-Conditioned shown below and contact us for a configured quote for the Enclosure and AC Enclosure.
PROTECT DATA IN HARSH INDOOR ENVIRONMENTS
-

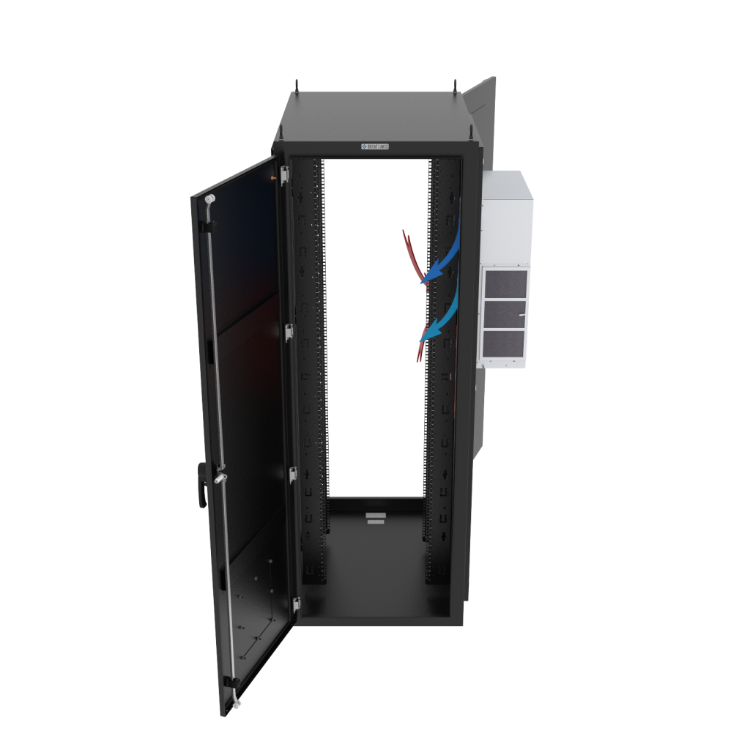

Vertiv™ Rack Environmental Indoor NEMA 12 Cabinet
The Vertiv™ Rack Environmental Indoor NEMA 12 Cabinet, previously known as the NEMA Data Cabinet, is designed to protect servers, network equipment, industrial controls and other sensitive electronics installed in demanding indoor environments.
The enclosed cabinet helps protect equipment from dust, dirt, lint, dripping water and light splashing. Solid front and rear doors, compression latches and adjustable mounting rails provide a secure and flexible equipment enclosure for manufacturing facilities, warehouses, utility rooms, process areas and edge-computing applications.

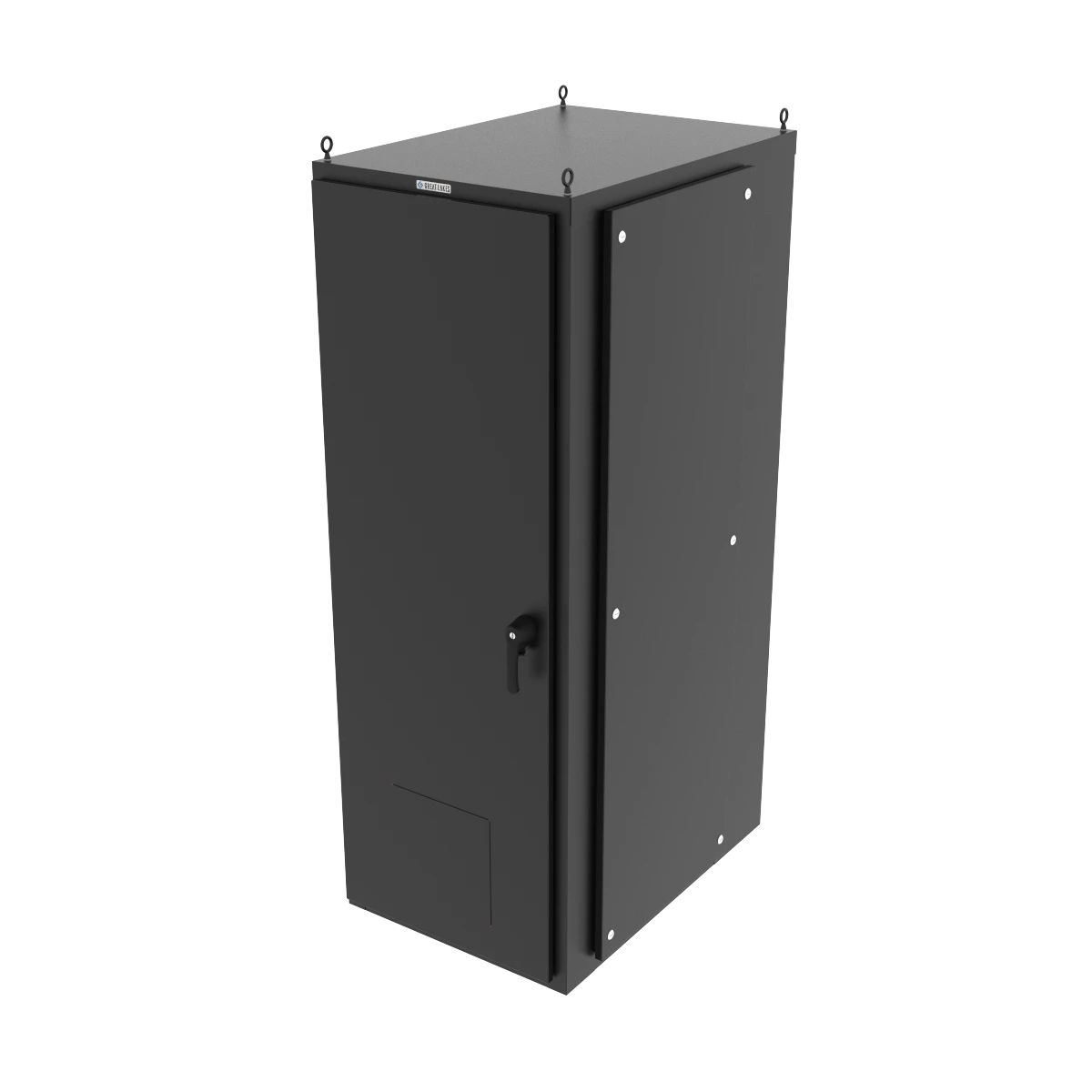

The standard cabinet configuration measures 84 inches high, 24 inches wide and 42 inches deep, providing 45 rack-mount units and approximately 42 inches of usable internal depth. The cabinet supports equipment loads of up to 5,000 pounds when properly anchored to the floor.
Features and Benefits
- NEMA Type 12 indoor environmental protection
- 45U equipment-mounting capacity
- Heavy-duty 5,000-pound load capacity
- Adjustable front and rear mounting rails
- M6 square-hole or tapped mounting-rail options
- Solid front and rear doors
- Three-point compression latching system
- Integrated cable and rack-PDU mounting provisions
- Optional filtered fan ventilation
- Optional cabinet air-conditioning systems
- Optional electronic access control and grounding accessories
- Available in 24-inch and 30-inch cabinet widths
Thermal-management options include filtered fan assemblies and cabinet air conditioners ranging from approximately 2,500 BTU to 20,000 BTU, depending on cabinet size, equipment heat load and ambient conditions.
The Vertiv Rack Environmental Indoor Cabinet is intended for indoor use only. Cooling capacity and cabinet configuration should be selected based on the installed equipment, operating temperature and environmental conditions.
Lead Time: Availability and production time vary by cabinet configuration, cooling system and accessories. Contact Mainline Computer Products for current lead time, pricing and freight requirements.
Configurable Thermal Management
Available thermal-management options include:
- 295 CFM fan-and-filter assembly
- 368 CFM fan-and-filter assembly
- 2,500 BTU cabinet air conditioner
- 3,500 BTU cabinet air conditioner
- 4,500 BTU cabinet air conditioner
- 6,000 BTU cabinet air conditioner
- 10,000 BTU cabinet air conditioner
- 12,000 BTU cabinet air conditioner
- 14,000 BTU cabinet air conditioner
- 17,000 BTU cabinet air conditioner
- 20,000 BTU cabinet air conditioner
Benefit: Allows the cabinet to be configured around the equipment heat load, room temperature and required level of environmental isolation.
