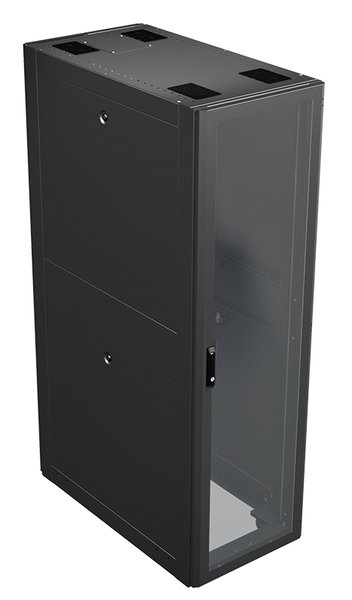

Mainline Computer DCE™ Optimized Rack Systems


The DCE rack system is ideal for today’s data centers and is designed to meet flexibility, ease of installation and delivery requirements. The DCE comes in pre-configured rack configurations customized to meet your specific needs.

• Compatible with Vertiv PDU’s, Liebert Rackmount UPS, Aisle Containment, and Liebert modular busway
• Factory installation of rack accessories for fast deployment
• Easy installation saves time and money: tool-less hinges, dual split side panels, 19” rail adjustment, U markings on rails, low profile casters, tool-less accessories

Features

• DCE server rack cabinets are available in 24U, 42U, 45U, 48U heights.
• Widths of 600mm, 700mm or 800mm; and depths of 1100 or 1200mm.
• Each rack is optimized for cable management and airflow management.
• Each rack includes: single perforated locking front door, split locking perforated rear doors,split locking side panels, Cable Entry Top Cover, two pair of EIA 19” Rails, two full height PDU Mounting/Cable Management brackets, baying brackets and installation hardware.
• Select Sizes available in Qty’s of 20 in 5 Days.
• Non-Stock Standards 4-6 weeks
• Standard Color RAL 7021(Black), RAL 7035 available
• Capacity: 3,000 lbs Static Load

Benefits

Flexibility
• Removable High Density Cable Entry Top Panel allows for customized Top Panels for Cable Entry or Chimney roofs to be applied without having to change the entire rack.
• Tool-less removable doors, can either be right hand or left hand hinged
• Infinitely depth adjustable 19” rails
• Integrated cable management features, accepts Emerson tool-less cable management accessories, allowing for rapid Moves, Adds, and Changes
• Simple integration of power, cooling and monitoring equipment

Secure & Safe:
• Easy External Baying
• Locking door handles
• Split locking side panels for easy installation and handling
• 3 Hinges on doors for added rigidity
• 3000 lbs. static, 2500 lbs. dynamic weight load capacities
• Certifications: EIA310E, UL2416, BAA/TAA, IBC2012

Lowest Total Cost of Ownership:
• Order racks directly from the factory configured how you need them
• Easy installation saves time and money: lift off hinges, split side panels, 19-rail adjustment, U markings on 19-rails, low profile casters, tool-less accessories
• Button Mount PDU/Cable management rails allows for tool-less installation of PDU’s
• Leveling feet accessible through the frame, allows for rapid leveling
• Excellent value for features, durability and price
• Integral part of the total data center solutions from Emerson Network Power saves time and money on configuration and integration
