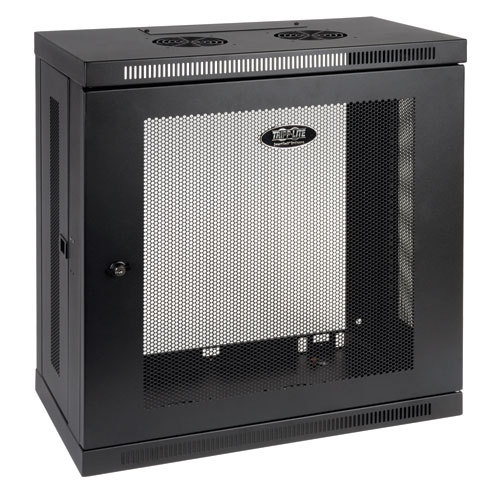

Tripp Lite SmartRack Slim 12U Wall-Mount Rack Enclosure Cabinet


Overview

Overview

The SRW12U13 slim 12U Wall-Mount Rack Enclosure is designed to safely store shallow network switches and patch panels. It integrates wall-mounting, easy equipment access and cable management in Telco environments with limited floor space. Ventilated top and bottom panels allows generous airflow to keep equipment operating safely. Top panel offers a convenient cable access cutout with cover. Adjustable front mounting rails have square holes (default position) and tapped holes to accommodate 12U of equipment. A sturdy wall-mount bracket allows the cabinet to quickly be hung on the wall and supports up to 200lbs of equipment. The SRW12U13 comes with a 5-year product warranty.

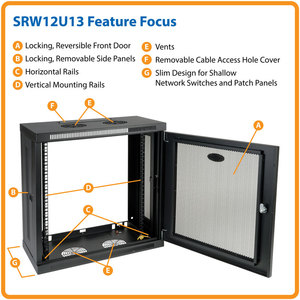

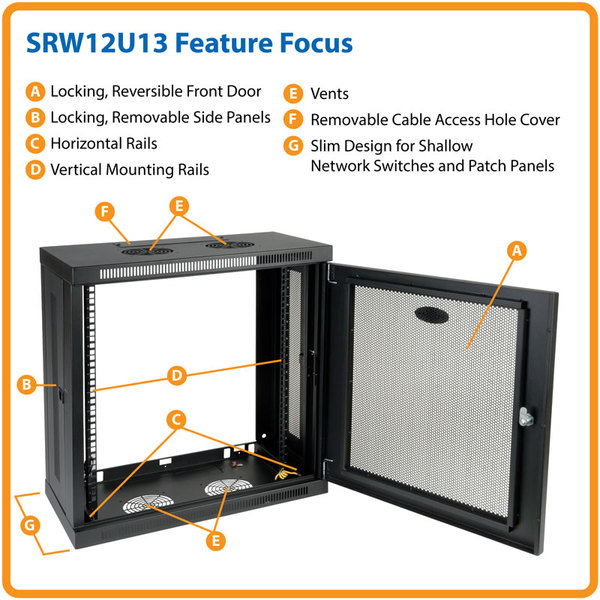

SmartRack Slim 12U Wall-Mount Rack Enclosure Cabinet
• Slim design for shallow network switches and patch panels
• 12U with dual threaded front rails
• Locking, reversible front door
• Locking, removable side panels
• Fully assembled for quick installation
• PCI-Compliant: meets stringent physical security requirements

Specifications

  • PHYSICAL
  • Installed whole system maximum rack depth (inches) 13
  • Rack Height 12U
  • Shipping Dimensions (HWD/in) 27.56 x 25.6 x 15.75
  • Shipping weight (lbs) 40
  • Unit Dimensions (in.) EXTERNAL DIMENSIONS: 25.08 x 23.62 x 13 (HWD)
  • Unit weight (lbs) 38
  • Color Black
  • Style Wall Mounted
  • Weight Capacity - Stationary (lbs) 200
  • Cable Access Hole Measurement (inches) 9.812 x 2.35 (l x w)
  • SPECIAL FEATURES
  • Grounding lug Front door frame
  • CERTIFICATIONS
  • Certifications EIA-310-E
  • NOM (Mexico) Tested to NOM (Mexico)
  • Approvals RoHS
  • WARRANTY
  • Product Warranty Period (Worldwide) 5-year limited warranty

    • Additional Info
    Accessories
    Warranty Info

    WARRANTY
    Product Warranty Period (Worldwide) 5-year limited warranty
