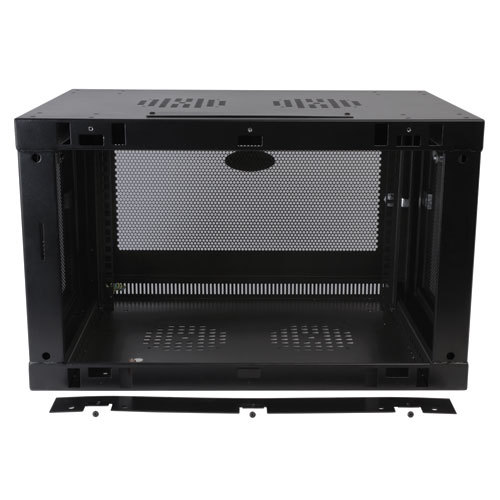

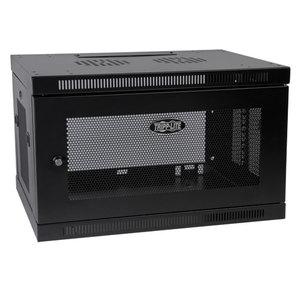

ML SmartRack 6U Wall-Mount Rack Enclosure Cabinet


Overview

Overview

Tripp Lite’s SRW6U Wall Mount Rack Enclosure Cabinet is the ideal storage solution for standard rackmount equipment in applications with limited floor space such as wiring closets, POS stations and offices. Constructed with a sturdy wall mounting bracket and steel frame, it can accommodate up to 140 lbs. of equipment in 6U of rack space. Adjustable vertical mounting rails with square holes accommodate all standard 19-inch rack equipment.

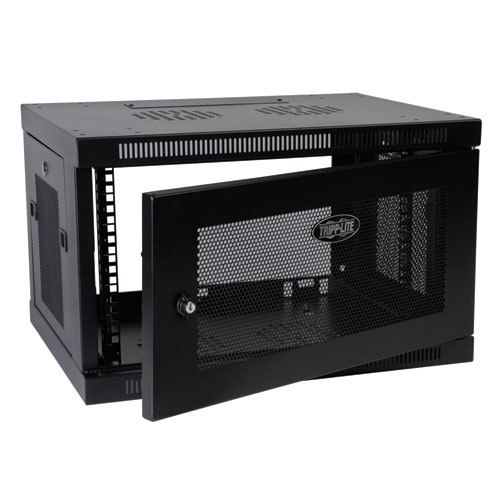

The SRW6U features a perforated lockable front door and side panels, assuring generous airflow to keep equipment operating safely. The side panels are removable for easy access to equipment, and the front door is reversible. The top and bottom panels of the enclosure include convenient cable routing ports. The SRW6U ships fully assembled and comes with a 5-year manufacturer’s product warranty.


SmartRack 6U Wall-Mount Rack Enclosure Cabinet

• Designed for VoIP closets and education environments where equipment needs to be secure and out of the way

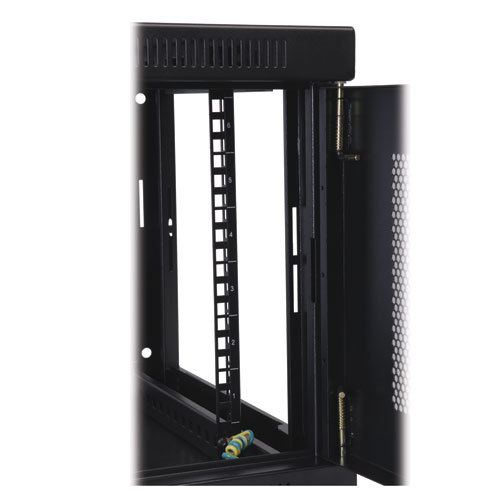

• 6U with adjustable front vertical rackmount rails
• Locking, reversible front door and locking, removable side panels
• Fully assembled for quick installation
• Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance

Specifications

  • Installed whole system maximum rack depth (inches) 16.5
  • Installed whole system maximum rack depth (cm) 41.9
  • Installed whole system minimum rack depth (inches) 3
  • Rack Height 6U
  • Shipping Dimensions (HWD/in) 17.5" x 26.5" x 20.5"
  • Shipping Dimensions (HWD/cm) 44.45 x 67.31 x 52.07
  • Shipping weight (lbs) 32
  • Shipping weight (kg) 14.5
  • Unit Dimensions (in.) EXTERNAL DIMENSIONS: 14.5" x 23.63" x 17.5" (HWD)
  • Unit weight (lbs) 29
  • Unit weight (kg) 13
  • Unit Dimensions (cm) 36.83 x 60.02 x 44.45
  • Color Black
  • Style Wall Mounted
  • Weight Capacity - Stationary (lbs) 200
  • Weight Capacity - Stationary (kg) 90.7
  • Cable Access Hole Measurement (inches) 9.812 x 2.35 (l x w)
  • SPECIAL FEATURES
  • Grounding lug Front and Back door frames
  • CERTIFICATIONS
  • Certifications EIA-310-E
  • NOM (Mexico) Tested to NOM (Mexico)
  • Approvals RoHS
  • WARRANTY
  • Product Warranty Period (Worldwide) 5-year limited warranty

    • Additional Info
