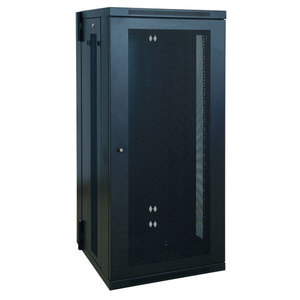

SmartRack 26U Wall-Mount Rack Enclosure Cabinet


Overview

Overview

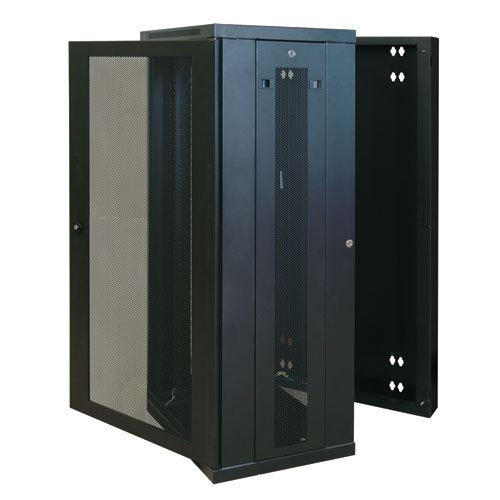

The SRW26US 26U Wall-Mount Rack Enclosure Cabinet is designed to integrate wall-mounting, easy equipment access, and cable management in IT network applications with limited floor space. Ventilated front door and side panels allow generous airflow to keep equipment operating safely. Adjustable rack rails with square mounting holes accommodate up to 26U of standard 19" rackmount equipment. Supports up to 250lbs of equipment. A sturdy hinge between the cabinet and the wall-mount bracket allows the cabinet to swing away from the wall for easy access to equipment and cabling. Top and bottom panels include convenient cutouts for cable routing.

Specifications

  • PHYSICAL
  • Installed whole system maximum rack depth (inches) 20.5
  • Installed whole system maximum rack depth (cm) 52.07
  • Installed whole system minimum rack depth (inches) 3
  • Installed whole system minimum rack depth (cm) 7.62
  • Rack Height 26U
  • Shipping Dimensions (HWD/in) 55.4 x 25.6 x 23.6
  • Shipping Dimensions (HWD/cm) 140.71 x 65.02 x 60
  • Shipping weight (lbs) 140
  • Shipping weight (kg) 63.5
  • Unit Dimensions (in.) EXTERNAL DIMENSIONS: 49.7 x 23.63 x 21.6 (HWD)
  • Unit weight (lbs) 125
  • Unit weight (kg) 56.6
  • Unit Dimensions (cm) EXTERNAL DIMENSIONS: 126 x 60 x 54.9 (HWD)
  • Color Black
  • Style Wall Mounted
  • Weight Capacity - Stationary (lbs) 250
  • Weight Capacity - Stationary (kg) 113.4
  • Cable Access Hole Measurement (inches) 9.812 x 2.35 (l x w)
  • SPECIAL FEATURES
  • Grounding lug Front and Back door frames
  • CERTIFICATIONS
  • NOM (Mexico) Tested to NOM (Mexico)
  • Approvals EIA-310-D, IEC 60297-3-100, DIN 41494, IP20 Protection Rating, RoHS
  • WARRANTY
  • Product Warranty Period (Worldwide) 5-year limited warranty

    • Additional Info
    Accessories
    Warranty Info

    WARRANTY
    Product Warranty Period (Worldwide) 5-year limited warranty
