- Manufacturer
- SMC
- Product #
- ML.P.42.24.42
- Catalog #
- ML.P.42.24.42
- Weight
- 237.0 lbs.
- Suggested Retail
- $0.00
- Sale Price
- Contact Us

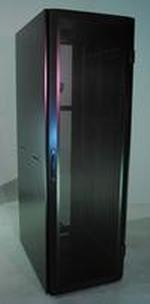

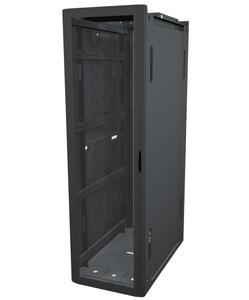

Platinum 2.0 Server Cabinet 42U - 42 in. Deep
Ships fully assembled
Overview
Key Performance Features
Convenience
• Installation Height: Standard 79” height fits through standard doors without tilting.
• Door Hinges: Standard concealed hinges
• Numbered “U” Positions: Labeled “U” positions on rack mount rails simplify the installation of rack mounted devices.
• Numbered Rails: Front-to-rear rails labeled in inches make adjusting the rear rails simple.
• Extra Depth: 6” deep corner posts maximize power and cable management, while allowing easy access from the interior.
• Shipment: Units ship fully assembled, reducing installation time.
Protection
• Security: Field upgrades to Secure or Smart Technology provide keypad entry and remote monitoring when security is a must.
• Locking: Doors and end panels feature anti-pick, tubular locks, preventing surrepitous entry.

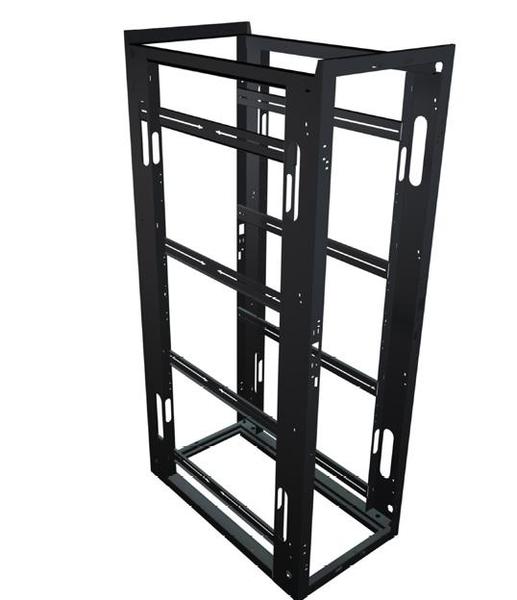

• Structural Stability: A proven frame design, welded heavy gauge front-to-rear rails and heavy-duty steel casters provide 2000 lb. static and dynamic ratings.
• Temperature Display: Optional temperature display provides easy to read monitoring of interior temperature (affixed to door).
• Warranty: A limitied lifetime warranty applies.
Serviceability
• End Panels: Quick release end panels allow fast and easy access to the interior.
• Base Plate: Optional removable base plate offers a large opening for easy access, ventilation or extra storage.
• Leveling Feet: Easy access leveling feet provide fast adjustment with or without servers installed.
• Reversible Doors: Door opening direction can be reversed on location as swing requirements change.
• Top Plate: Modular design allows for numberous applications for cooling and cabling solutions.
Flexibility
• Versatile: This model is available in both 42U and 44U configurations to meet most popular configuration needs. (36” and 42” depths)
• Expandable: Platinum Server accepts an additional 6” power and cable management frame which provides exceptional cable management and power expansion depth.
• Copper or Fiber Cable Access: Multiple cable openings and troughs throughout, combined with optional fiber optic grommets, offer versatility in cable management and access where it’s really needed.
• Scalability: The uniquely designed corner post attachment allows ganging from the interior, simplifying row expansion.
• Ventilation: Optional top mounted or rear door fans provide options when choosing the correct ventilation solution.
Popular Options
• Rails (Sq Cage Nut, Tapped, Markings, etc.)
• Modular bases and modular tops
• Cable management components
• Power features
• Side panels
• Extension frame for 36” and 42” frames
• Grounding units
Specifications
• Exceeds all third party 19” EIA 310-D cabinet requirements for power, cabling, and ventilation.
• Front to back compatible with existing Platinum frames and components
• Smart Technology option compatible
• All steel construction fabricated from 12 & 14 Ga CRS
• (4) Leveling feet
• Built in caster mounting brackets to accommodate optional castors
• Maximum load capacity is 2000 lbs with leveling feet
• Open base design
• Open top design
• Reinforced base plate to accommodate optional Seismic mounting ability
• Welded-in front to rear rail mounting adjustment mechanisms
• Front-to-Rear rails are numbered in one-inch increments
• Zero “U” side mounted (outside the front to rear rail brackets) cable management and power management options up to 1.75” thickness.
• 6” x 2 1/2” (36” and 42” frames) rear power and or cable management channel outside of the “U” pocket
• Doors can be mounted to swing left or right and can be retrofitted in the field without any special tools.
• Front door is of welded frame construction and comes with Mesh that provides 63% open area of ventilation
• Concealed door hinges are standard
• Rear door is of welded frame construction and comes with mesh the provides 80% open area of ventilation
• 180 degree open door hinges standard on rear door
• Cam locks on doors standard
• Supports cooling solutions
• Ships fully assembled
Additional Info
Warranty Info
Limited Lifetime Warranty applies.
