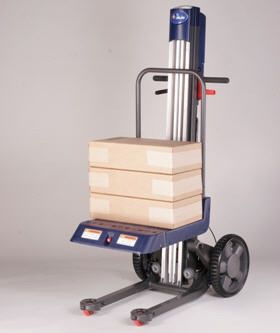

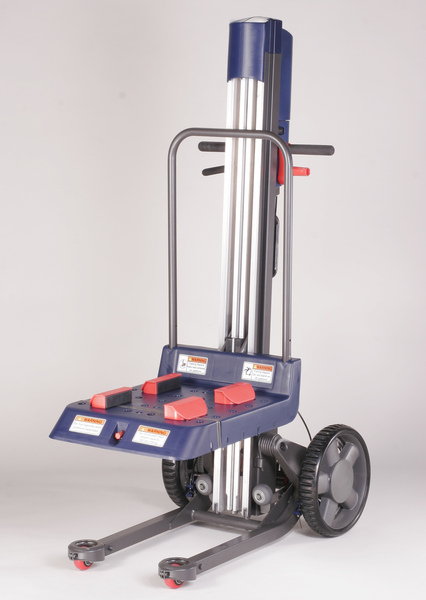

Lift-4 Model 720 IT Equipment Lifter Capacity 300 lbs. #Lift-4.720

• Raises to 72 in.
• Capacity: 300 lbs.
• Overall Ht: 84 in.


The largest of our Lift-4 models, this one comes fitted with a platform and a payload support to secure load, a wider chassis that provides greater stability when lifting 300 lbs up to 72 inches.

It features a specially designed ergonomic handle bar with a three-position grip for ease of maneuverability.


- Raise and lower IT Equipment for installation or removal from racks or tables
- Move equipment through aisles and lift heavy items for mounting in racks
- Assist workers with repetitive lifting and/or heavy payloads
- Get tool boxes and materials directly to work area and serve as work bench - ideal for customer engineer departments
- Manage bags of loose material
- Lift Form Boxes or Raise rolls of printing material for loading into printers
- Organize items on racking into delivery trucks
- Move tapes for off-site storage
- And much, much more

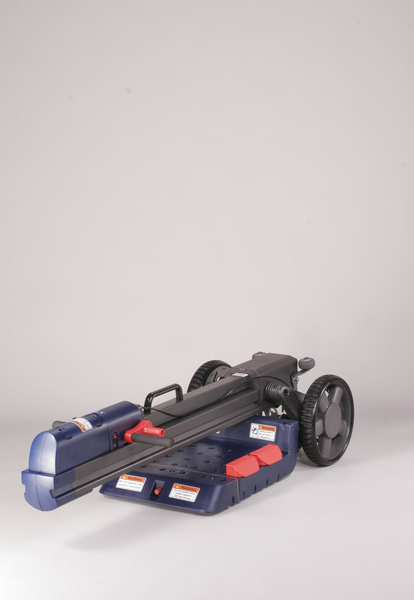

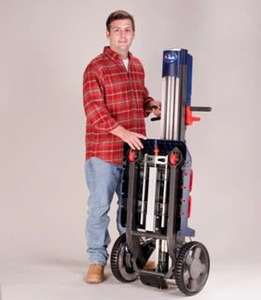

- Folds for easy storage and shipping
- Shippable via UPS - quick, easy and economical
- Conserves valuable storage space

- Included Four platform mounting blocks;
- Platform vice knobs
- 12V Recharging adapter
- Mounting tube

Limited Warranty:

The Lift-4 is warranted by the manufacturer to be free from defects in material and workmanship under normal use and service. The warranty period for this product is twelve (12) months from the date of purchase by the original purchaser or a reading of 150 on the usage Meter, whichever comes first, excluding the battery. The batteries carry a 90 day warranty.

Note: Customer is required to return Warranty Card with thirty (30) days of purchase. If manufacture does not receive warranty card, the start date defaults to the day we ship the unit.

b> PLEASE NOTICE: Above price does not include freight, you will receive a confirming Quotation after you place your order with "Shipping Charges" which will require your approval to complete your order.Thank You.

For assistance on your project call Mainline Computer Products toll free at:
(800)-686-5312 or E-mail: Sales@MainlineComputer.com


  • Overall Height: 84 inches
  • Overall Width: 32 inches
  • Overall Depth: 37 inches
  • Net Weight: 135 lbs.
  • Lifting Capacity: 300 pounds = roughly 136 kilograms
  • Fully Lowered Height: 3.5 inches
  • Maximum Platform Height: 72 inches ( Fully Raised)
  • Lift Speed: 2 inches a second = roughly 0.045 meters with 100 lb. load
  • Lift Screw: Acme thread, steel screw
  • Battery: 15 Volt, rechargeable, lead-acid gel maintenance free
  • Charge Capacity: 125 lift cycles with 100 pound load
  • - Note: Larger loads require more frequent charging
  • Recharging: Built in charger plugs into any 110 Volt AC outlet
  • - Note: Units should be trickled charged between uses
  • Charge Indicator: Located on rear panel Indicates power entering The Mule

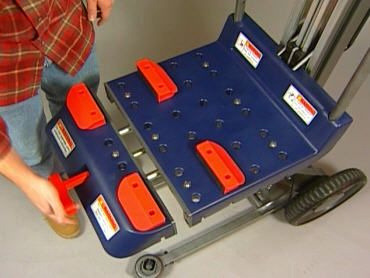

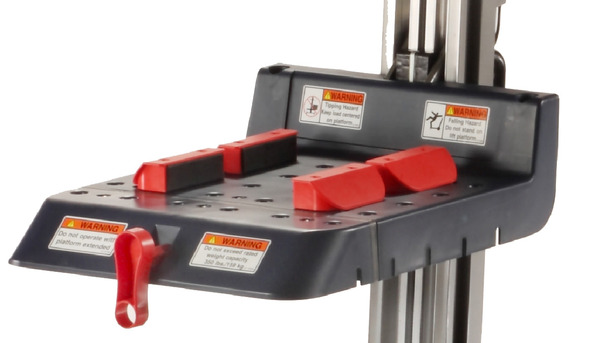

  • Platform: 18 inches wide by 18 inches closed
  • Platform: 18 inches wide by 28 inches long expanded
  • Front Casters: Two 2-½ inch multi-directional casters
  • Rear Wheels: Two 13 inch rubber wheels with rear wheel
  • Mfg Warranty: One (1) year from purchase date;
  • Battery Warranty: 90 days from purchase date
  • Shipping DIMS:
  • 72” carton and pallet = 185 lbs
  • Size of pallet and carton: H 32” W 38” L 96”
  • Additional Info
    Lit-4- Extended Life Battery Charger
    Lit-4- Extended Life Battery Charger

    Lift-4 Maintenance Tune Up Kit #Lift-4-TUNEUP
    Lift-4 Maintenance Tune Up Kit #Lift-4-TUNEUP
