Overview

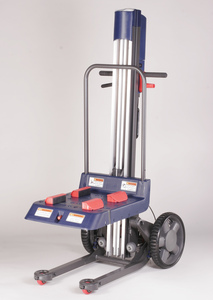

This Lifter/Transporter Folds to 60" H x 22" W x 13" L . Ideal to move from one location to another.

Applications:

- Raise and lower IT Equipment for installation or removal from racks or tables
- Move equipment through aisles and lift heavy items for mounting in racks
- Assist workers with repetitive lifting and/or heavy payloads
- Get tool boxes and materials directly to work area and serve as work bench - ideal for customer engineer
departments
- Manage bags of loose material
- Lift Form Boxes or Raise rolls of printing material for loading into printers
- Organize items on racking into delivery trucks
- Move tapes for off-site storage
- And much, much more

Benefits:
- Folds for easy storage and shipping
- Shippable via UPS - quick, easy and economical
- Conserves valuable storage space

Accessories:
- Included Four platform mounting blocks;
- Platform vice knobs
- 12V Recharging adapter
- Mounting tube

Limited Warranty:
The Lift-4 is warranted by the manufacturer to be free from defects in material and workmanship under normal use and service. The warranty period for this product is twelve (12) months from the date of purchase by the original purchaser or a reading of 150 on the usage Meter, whichever comes first, excluding the battery. Note: The batteries carry a 90 day warranty.

Note: Customer is required to return Warranty Card with thirty (30) days of purchase. If manufacture does not receive warranty card, the start date defaults to the day we ship the unit.

Specifications

Dimensions: 72" H x 22" W x 39" L

Lift Capacity: 350 lbs. 159 kg ( Overload indicator on rear panel )

Screw Driven - does not require adjusting

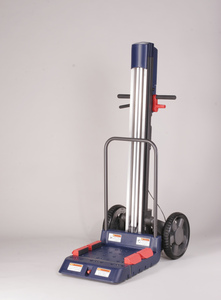

Height Range-3.5" to 60" ;

Lift Speed: 2" per second with 100 lb. load

Platform: 18" W x 18" L, expands to 18" W x 28" L

Frame: Steel

Storage Dimension: Folds to Folds to 60" H X 22" W X 13" L

Battery:Rechargeable, Maintenance-free 12V silcone battery

Capacity: 125 - 150 lift cycles per charge

Recharging:110V input ( 12V output AC Adapter (included)_

10" Dual Disk brakes on both rear wheels

Locking hand brake

Wheels:Two 13" rubber rear wheels; two 2 each 2-1/2" multidirectional front casters

Shipping Wt. 170 lbs.

Limited Warranty 12 months; Battery 3 months

Additional Info

Datasheets:

• Lift 4 600 Data Sheet
  Lift 4 600 Data Sheet

Accessories

Related Products

Warranty Info

Limited Warranty 12 months: The batteries carry a 90 day warranty.

Limited Warranty:
The Lift-4 is warranted by the manufacturer to be free from defects in material and workmanship under normal use and service. The warranty period for this product is twelve (12) months from the date of purchase by the original purchaser or a reading of 150 on the usage Meter, whichever comes first, excluding the battery. Note: The batteries carry a 90 day warranty.

Please complete the Product Registration Card iwhich is shipped with your Lift-4 within 30 days of the original purchase in order to validate the warranty. The warranty period is based upon the date of purchase indicated on this card. If the Product Registration is not received (via electronic submission, fax or mailed) to
Manufacturer, the warranty period will be based upon the date of shipment from Manufacturer. Failure to submit this information could shorten the warranty period considerably.

IMPORTANT:
Note: Customer is required to return Warranty Card with thirty (30) days of purchase. If manufacture does not receive warranty card, the start date defaults to the day we ship the unit.
