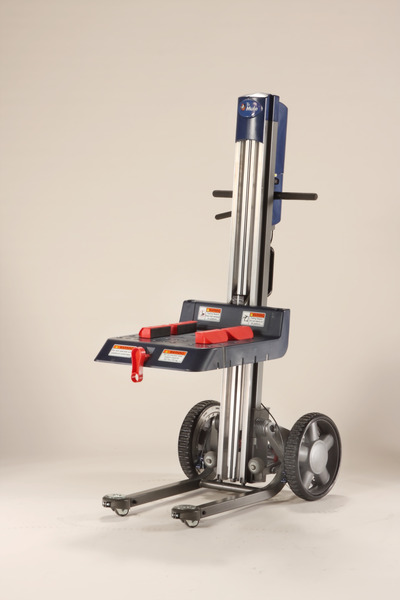

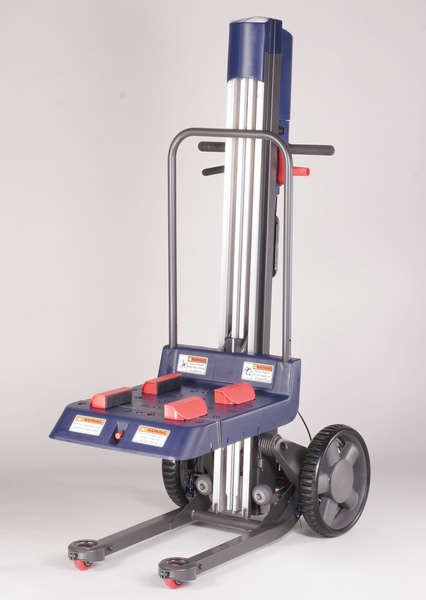

Overview

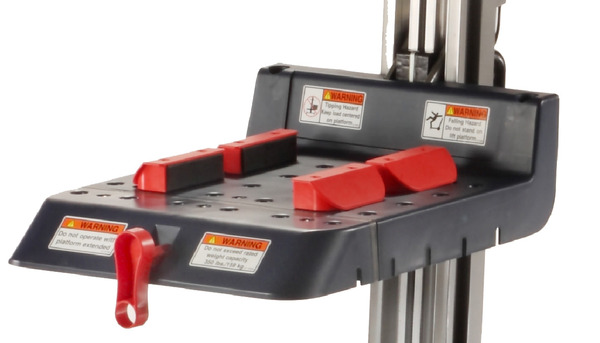

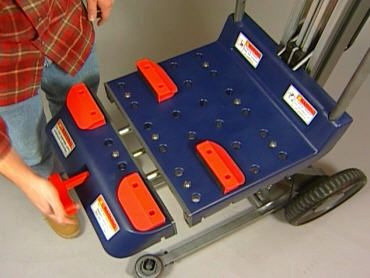

The steel framed platform measures 18 inches wide by 18 inches long and can be extended 10 inches with the turn of a screw. The platform comes with adjustable work blocks for maximum flexibility.

Applications::

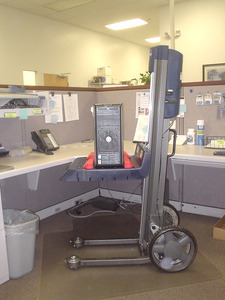

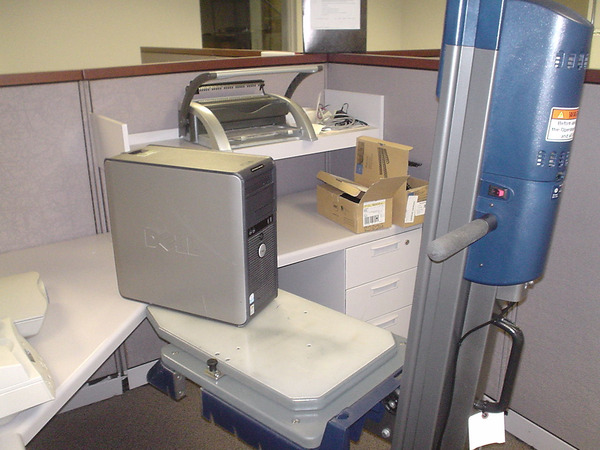

- Raise and lower IT Equipment for installation or removal from racks or tables

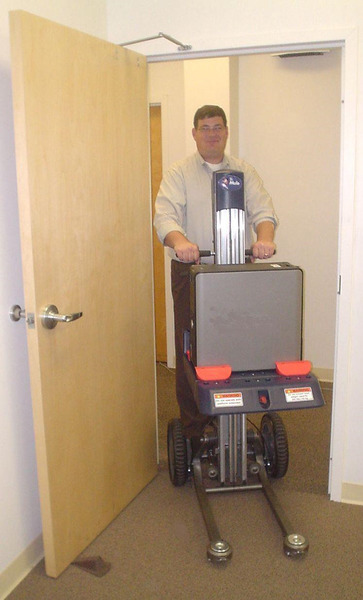

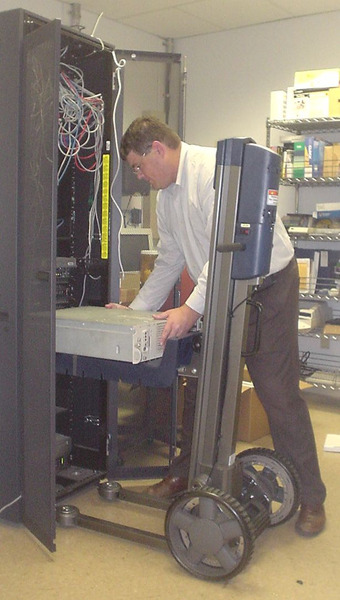

- Move equipment through aisles and lift heavy items for mounting in racks
- Assist workers with repetitive lifting and/or heavy payloads

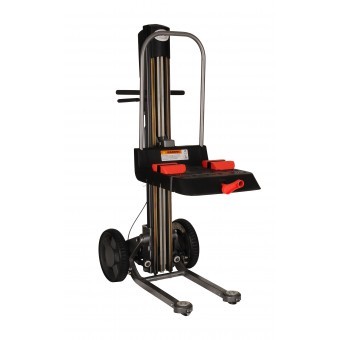

- Get tool boxes and materials directly to work area and serve as work bench - ideal for customer engineer departments
- Manage bags of loose material

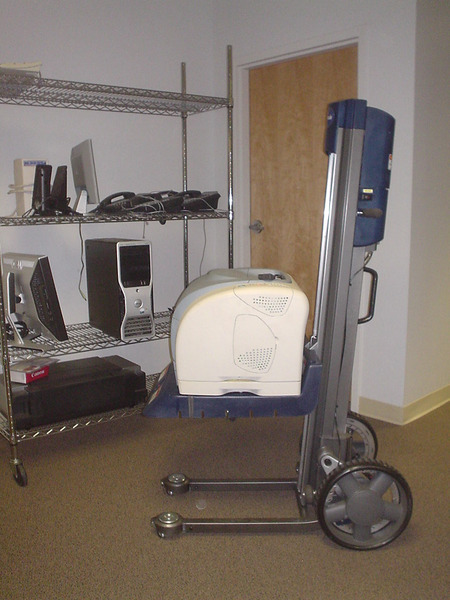

- Lift Form Boxes or Raise rolls of printing material for loading into printers
- Organize items on racking into delivery trucks
- Move tapes for off-site storage
- And much, much more

Benefits:

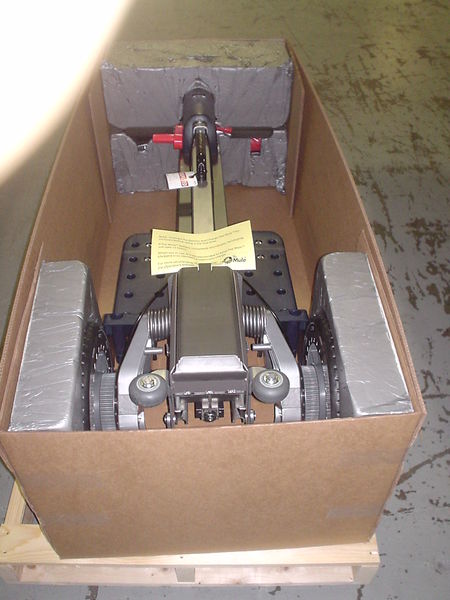

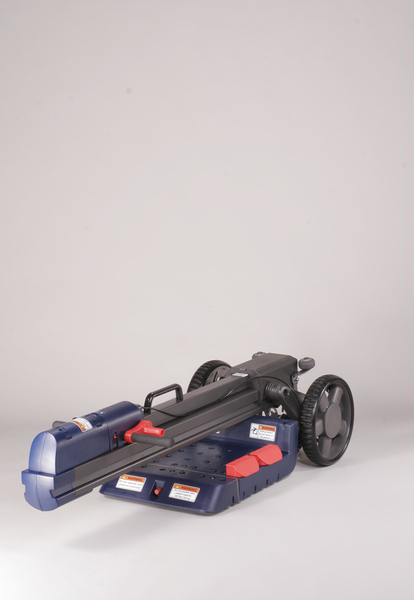

- Folds for easy storage and shipping
- Shippable via UPS - quick, easy and economical
- Conserves valuable storage space

Accessories:
- Included Four platform mounting blocks;
- Platform vice knobs
- 12V Recharging adapter
- Mounting tube

Specifications

Dimensions: 60" H x 21" W x 37" L

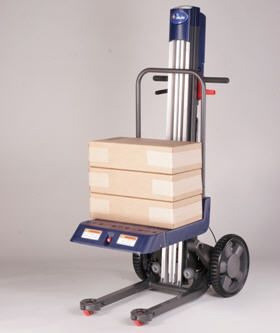

Lift Capacity: 350 lbs. 159 kg ( Overload indicator on rear panel )

Screw Driven - does not require adjusting

Height Range-3.5" to 48" ;

Lift Speed: 1-1/2 in per second with 100 lb load

Platform: 18" W x 18" L, expands to 18" W x 28" L

Frame: Steel

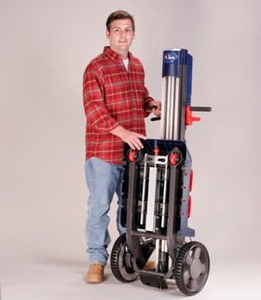

Storage Dimension:Folds to 55" H x 20" W x 12" L

Battery:Rechargeable, Maintenance-free 12V silcone battery

Capacity: 125 - 150 lift cycles per charge

Recharging:110V input ( 12V output AC Adapter (included)_

10" dual disk brakes on both rear wheels

Locking hand brake

Wheels:Two 13" rubber rear wheels; two 2 each 2-1/2" multidirectional front casters

Shipping Wt. 170 lbs.

Limited Warranty 12 months; Battery 3 months

Additional Info

Accessories

Related Products

Warranty Info

Limited Warranty: 12 months

Limited Warranty:
The Lift-4 is warranted by the manufacturer to be free from defects in material and workmanship under normal use and service. The warranty period for this product is twelve (12) months from the date of purchase by the original purchaser or a reading of 150 on the usage Meter, whichever comes first, excluding the battery. The batteries carry a 90 day warranty.

Note: Customer is required to return Warranty Card with thirty (30) days of purchase. If manufacture does not receive warranty card, the start date defaults to the day we ship the unit.
