Manufacturer
APC
Product #
ACRC100
Catalog #
ACRC100
Weight
384.0 lbs.
Suggested Retail
$0.00
Sale Price
Contact Us
Quantity

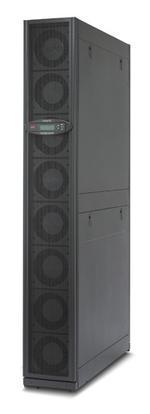

InRow RC Chilled Water, 100-120V 50/60 Hz, NEMA L5-20

In-row air conditioning for medium to large data centers including high density applications.


Overview

The predictable solution for an unpredictable environment.

Data center heat densities continue to increase, making it more difficult to provide adequate cooling. The distance between heat sources and heat removal systems must decrease to ensure proper airflow paths. The closer to the heat generation source the air conditioner is, the less likely mixing of hot and cold air streams will occur. The InfraStruXure InRow RC is a computer room air conditioning system with a horizontal airflow pattern specifically designed for hot aisle/cold aisle configurations. Warm exhaust air is drawn from the hot aisle, cooled, and distributed into the cold aisle, ensuring that equipment inlet temperatures are constant and adequate for proper operation. Closely coupling the air conditioner with the heat source produces warmer return air to the system. This increases the heat removal capacity of the system and nearly eliminates the need for make-up humidification.

Features:
- Dual A-B power inputs
- Hot swappable fans
- In-Row architecture
- Modular design
- Predictable cooling
- Rack inlet control
- Variable speed fans

Specifications
--------------------------------------------------------------------------------

Includes: Installation Guide, Operations and Maintenance Manual
Cooling Options : Chilled Water
Condensate Pump Capacity 1.30 gal/hour
Minimum Water Inlet Temperature 45.0 °F ( 7.00 °C)
Total System Waterside Pressure Drop 6.9 PSI ( 48.00 kPa
Required Water Flow Rate 13.2 gpm ( 0.84 lps)
Nominal Input Voltage 100V,120V
Input Power 1100 Watts
Input Frequency 50/60 Hz
42U Rack Height
Input Connections NEMA L5-20P
Communications: Control panel Multi-function LCD status and control consol
Maximum Height 78.39 inches (1991 mm)
Maximum Width 11.80 inches (300 mm)
Maximum depth 42.08 inches (1069 mm)
Net Weight 358.00 lbs. (162.73 kg)
Color Black
Regulatory Approvals cUL Listed,C-tick,CE,EN 55022 Class A,EN 55024,EN 60950,EN 61000-3-2,Eurovent,FCC Part 15 Class A,GS Mark,ICES-003,IEC 60950,IEC
Standard Warranty 1 year (parts only)
