Overview

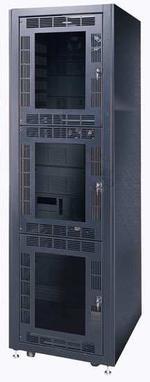

Colocation racks can be reconfigured in the field to change the number of segmented bays. Offering greater flexibility for changing customer needs.

Features:

- 3 door unit offer 14 RU's per bay
- Isolated cable management for each bay
- Isolated power distribution for each bay
- Separate cooling system for each bay
- Individual rails for each bay
- Units shipped assembled ready to use
- 25", 29" and 48" widths available.
- 26", 32" and 36" depths available with a 42" deep cabinet in planning.
- 72" (38U) and 84" (45U) heights available with a 96" high cabinet in planning.
- Multi-vendor capabilities including: Compaq, Dell, HP, IBM, DEC, and Sun. Can mix vendors within a cabinet.
- EIA standard rack-mount frame.
- Maximum airflow design with 550 CFM fan (1,100 CFM for 48" unit).
- Stationary shelves hold up to 300 lbs, roll-out shelves are standard 150 lbs with an optional 300 lb capacity.
- Slotted horizontal rail system allows for flexible rack rail adjustment. System allows for partial height rack rails leaving room in the cabinet for full width shelves.
- Many cable management options available.
- Casters and anti-tip options are available.

Plus EDP offers Lifetime factory warranty for defects in materials and workmanship.

Give us a call today so we can configure the LAN Pro Colo to fit your specific requirements.
(800)-686-5312.
